SUPERMICRO

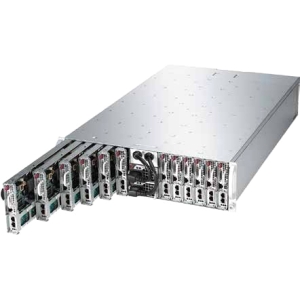

SYS-5038ML-H12TRF Supermicro MicroCloud 5038ML-H12TRF Barebone System - 3U Rack-mountable - Intel C224 Chipset - 12 Number of Node(s) - Socket H3 LGA-1150 - 1 x Processor Support - Black
Mfg Part Number: SYS-5038ML-H12TRF , Item #: 1572330
, PO and Wire.
The Supermicro MicroCloud modular server system provides the high density, performance, efficiency and cost savings required for today's demanding server deployments. The 12/8 modular server nodes are conveniently integrated into a compact 3U chassis that is only 29.5/23.2 inches deep, saving over 72% of rack space when compared to traditional 1U servers optimized for the best performance per rack. The cable-less, hot-pluggable server nodes operate independently. Each node provides up to 128GB of DDR3-1600/1333MHz of ECC LR/RDIMM memory, one PCI-E 3.0 x8 expansion slot for low-profile add-on card, and two 3.5" or four 2.5" SATA 3.0 (6Gbps) hard disk drives. The MicroCloud system utilizes redundant Platinum Level (94%) high-efficiency power supplies and sophisticated cooling zone controls for a Green energy profile. Each node is powered by processors from either the newest Intel® Xeon® E3-1200v2 & E3-1200 v3 families (5037MC and 5038ML models) or E5-2600 family up to 130W TDP; or the 8/4-Core AMD Opteron™ 3000 series
| General Information | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-5038ML-H12TRF |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 5038ML-H12TRF |
| Product Name | SuperServer 5038ML-H12TRF |
| Product Type | Server Barebone System |
| Processor | |
| Number of Nodes | 12 |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H3 LGA-1150 |
| Processor Supported | Core i3 |
| Processor Supported | Pentium |
| Processor Supported | Xeon |
| Processor Supported | Celeron |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C224 |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 10 |
| Display & Graphics | |
| Graphics Controller Model | AST2400 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 1 |
| Network (RJ-45) | Yes |
| VGA | Yes |
| Number of SATA Interfaces | 4 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Maximum Power Supply Wattage | 1620 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.2" |
| Width | 17.5" |
| Depth | 29.5" |
| Weight (Approximate) | 95 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | ACPI 1.0 / 2.0 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
Backplane & Hardwire Kits
Network Interface Cards
Supermicro AC AOM-CGP-i2M MicroLP 2PT GbE card Intel i350 f 12node MicroCloud
