KRAMER 30-000490 THE PT-5T AND PT-5R ARE A TWISTED PAIR TRANSMITTER AND RECEIVER FOR INFRARED SIG

Mfg Part Number:  30-000490
Image may not reflect the actual item.
Price: $249.22 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jul 30, 2025
No Sales Tax except these states
, PO and Wire.

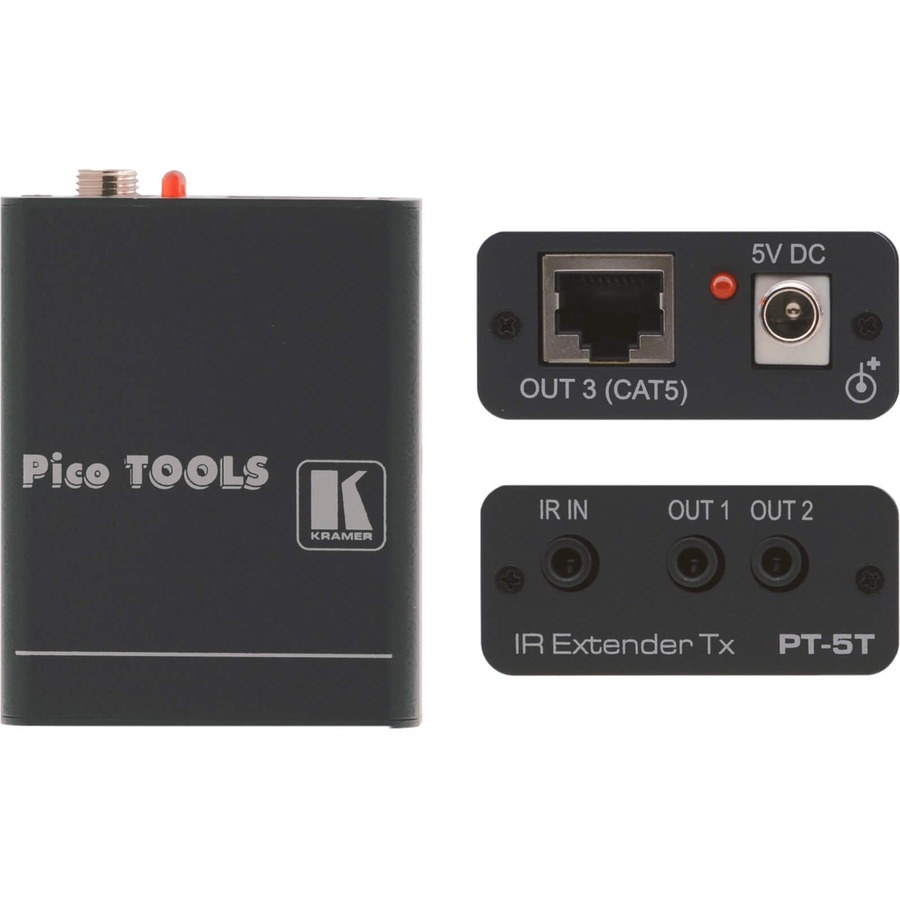

The PT-5T and PT-5R are a twisted pair transmitter and receiver for infrared signals. The units control up to five devices via their own remote control IR transmitters at distances of up to 250m (820ft) over twisted pair cable.

FEATURES
  • Multi-Unit IR Control - Controls 2 local and 3 remote devices (DVDs, amplifiers, air conditioners, etc.) over their IR ports.
  • Range - Up to 250m (820ft) via twisted pair.
  • Flexible Operation - Operates devices that are stacked away in closets, cabinets and other rooms.
  • PT-5T - Input: 1 IR receiver on a 3.5mm mini jack; outputs: 2 IR emitters on 3.5mm mini jacks; 1 twisted pair on an RJ-45 connector.
  • PT-5R - Input: 1 twisted pair on an RJ-45 connector; outputs: 3 IR emitters on 3.5mm mini jacks.
  • Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
  • Sold as a Pair.
Main Specification
General Information
Manufacturer Kramer Electronics LTD
Manufacturer Part Number 30-000490
Manufacturer Website Address http://www.kramerelectronics.com
Brand Name Kramer
Product Model 5R/T
Product Name IR Extender & Repeater
Product Type IR Transmitter/Receiver
Physical Characteristics
Height 0.9"
Width 2"
Depth 2.6"
Weight (Approximate) 5.28 oz
Miscellaneous
Package Contents
  • IR Extender & Repeater
  • Power Supply
  • 1 x IR Receiver with 2m Cable and 3.5mm Mini Jack
  • 5 x IR Emitters with 2m Cables and 3.5mm Mini Jacks.
Additional Information
  • Inputs: 1 IR receiver on a 3.5mm mini jack (PT-5T); 1 twisted pair on a RJ-45 connector (PT-5R).
  • Outputs: 2 IR emitters on 3.5mm mini jacks, 1 twisted pair on a RJ-45 connector (PT-5T); 3 IR emitters on 3.5mm mini jacks (PT-5R).
  • Max. Operating Distance: 250m (820ft).
  • Carrier Frequency: 36-40kHz.
  • Power Consumption: 5V DC: 7mA (PT-5T), 6mA (PT-5R).
  • Operating Temperature: 0° to +40°C (32° to 104°F).
  • Storage Temperature: -40° to +70°C (-40° to 158°F).
  • Humidity: 10% to 90%, RHL non-condensing.
Application/Usage Infrared Output
Country of Origin Taiwan
