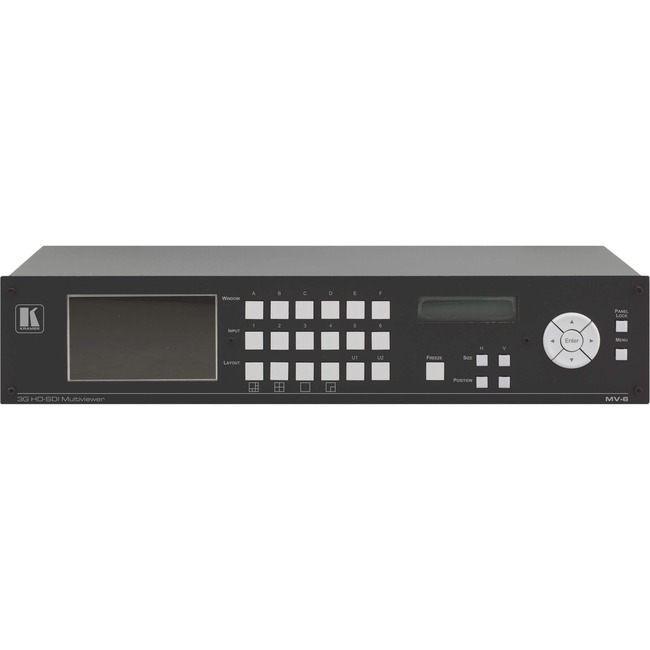

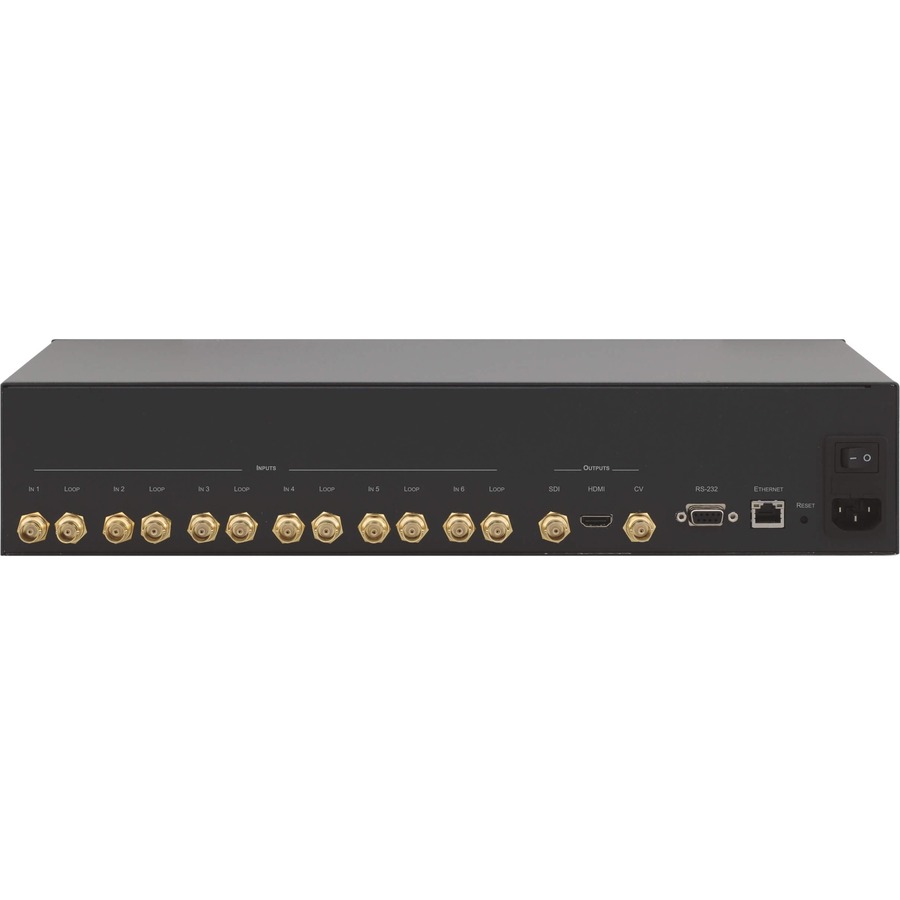

The MV-6 is a versatile, high-performance multiviewer for 3G HD-SDI video signals. The device can display up to six inputs in any combination and output the image in SDI, HDMI and CV formats. Both pre-programmed and customizable screen divisions are supported. The MV-6-MD is certified for medical applications.
- Max. Data Rate - 3Gbps.
- HDTV Compatible.
- Standards Compliance - Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility).
- Kramer re-Klocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
- Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
- Re-Clocking Looping Inputs.
- Multi-Video Output Formats - 3G HD-SDI (SMPTE 424M), HDMI and composite, scaling, refresh rate and video standard conversion.
- Front Panel Preview Screen - 16:9 4.3in color LCD displaying the output of the unit.
- Text Overlay - A text label/icon can be added inside each window. Each label has text/background color, alignment, size, etc settings.
- Screen Handling Buttons - Freeze, size, position, and 4 pre-programmed and 2 user-definable layouts.
- Flexible Control Options - Front panel with 2-row LCD, OSD, Ethernet & RS-232 (supplied with PC control software).
- Worldwide Power Supply - 100-240V AC.
APPLICATIONS
- Professional broadcasting and production studios.
- Presentation applications.
Main Specification
| General Information | |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | MV-6 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Brand Name | Kramer |
| Product Model | MV-6 |
| Product Name | MV-6 3G HD-SDI Multiviewer |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 6 |
| Device Supported | Display |
| Number of Displays Supported | 3 |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Outputs | 1 |
| Number of SDI Inputs | 12 |
| Number of SDI Outputs | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 3.5" |
| Width | 17.2" |
| Depth | 7.2" |
| Weight (Approximate) | 6.83 lb |
| Miscellaneous | |
| Country of Origin | Israel |
