TYCON SYSTEMS

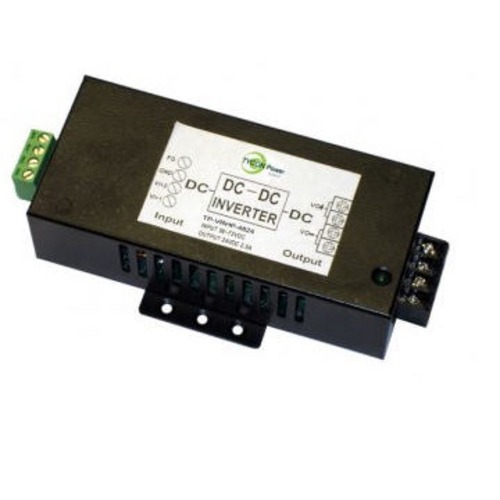

TYCON SYSTEMS Tycon Power TP-VRHP-2424 DC Converter
Mfg Part Number: TP-VRHP-2424 , Item #: 1552645
Image may not reflect the actual item.
Price: $89.99
Quantity:
In Stock: 19
Last Updated: Aug 12, 2026
No Sales Tax except these states
, PO and Wire.
Tycon Power Systems TP-VRHP-2424 70W 18-36VDC to 24VDC Voltage Converter/Regulator
The TP-VRHP-2424 is a 70W voltage converter/regulator which accepts an input of plus or minus 18VDC to 36VDC and provides a regulated output of 24VDC @ 2.9A 70W. These units are perfect for providing stable regulated 24VDC voltage from 24VDC battery banks. Input and outputs are wire terminals for wire up to 12AWG. Operates from -30 to +65 deg C.
Main Specification
| General Information | |
| Manufacturer | Tycon Power Systems |
| Manufacturer Part Number | TP-VRHP-2424 |
| Manufacturer Website Address | http://www.tyconpower.com |
| Brand Name | Tycon Power |
| Product Series | TP-VRHP |
| Product Model | TP-VRHP-2424 |
| Product Name | TP-VRHP-2424 DC Converter |
| Product Type | DC Converter |
| Technical Information | |
| Device Supported | Security Device |
| Device Supported | Remote Power System |
| Device Supported | Wireless Base Station |
| Power Description | |
| Input Voltage | 36 V DC |
| Input Voltage | 18 V DC |
| Output Voltage | 24 V DC |
| Maximum Output Power | 70 W |
| Maximum Output Current | 2.90 A |
| Physical Characteristics | |
| Height | 5.2" |
| Width | 3" |
| Depth | 1.5" |
| Weight (Approximate) | 1.10 lb |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 2 Year |
