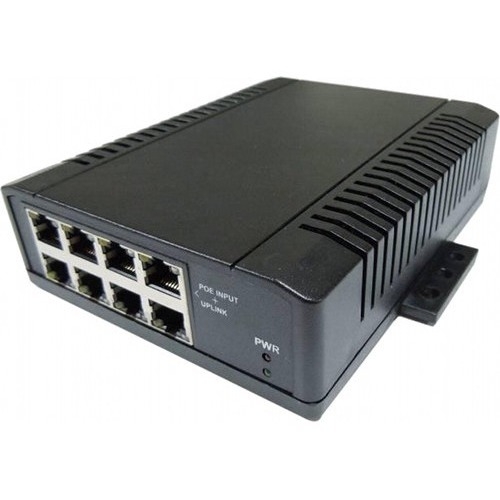

TYCON SYSTEMS TP-SW8 Tycon Power 8 Port 48V 802.3af Compliant PoE Switch (48VDC 150W Power Supply included)
Mfg Part Number: TP-SW8 , Item #: 1552515
Image may not reflect the actual item.
Price: $291.47
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 16, 2024
No Sales Tax except these states
, PO and Wire.
The TP-SW8 Power Over Ethernet 802.3af (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch. The -NC version is a non compliant model for devices which are not 802.3af compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can also be powered over POE to Port 8.
Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
Main Specification
| General Information | |
| Manufacturer | Tycon Power Systems |
| Manufacturer Part Number | TP-SW8 |
| Manufacturer Website Address | http://www.tyconpower.com |
| Brand Name | Tycon Power |
| Product Series | TP-SW8 |
| Product Name | 8 Port 48V 802.3af Compliant PoE Switch (48VDC 150W Power Supply included) |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 8 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 1.6" |
| Width | 4.6" |
| Depth | 6.3" |
| Weight (Approximate) | 15.87 oz |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 1 Year |
