TYCON SYSTEMS
TYCON SYSTEMS EZ-Bridge Ultra5 EZBR-ULTRA5 IEEE 802.11n 300 Mbit/s Wireless Bridge - UNII Band
Mfg Part Number: EZBR-ULTRA5 , Item #: 1546068
, PO and Wire.

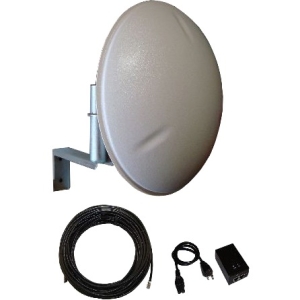

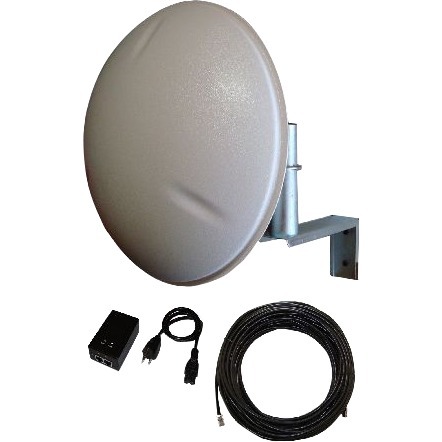

The EZ-Bridge-Ultra5™ is a high capacity, 100Mbps, and high power, 250mW, outdoor wireless bridge system operating in the 5GHz unlicensed spectrum. The complete system allows for ultra high bandwidth connections between 2 buildings up to 4 miles or more apart with good line of sight.
The EZ-Bridge-Ultra5™ creates a transparent bridge between 2 sides and passes all network traffic including VPN and DHCP. You can think of it like connecting a CAT5 Ethernet cable between the 2 points.
It is the perfect high capacity plug and play solution for connecting the networks in two or more buildings, internet access sharing, remote video surveillance or remote network access. Multiple EZ-Bridge-Ultra5™ units can be connected in a mesh configuration to allow interconnecting more than two sites.
| General Information | |
| Manufacturer | Tycon Power Systems |
| Manufacturer Part Number | EZBR-ULTRA5 |
| Manufacturer Website Address | http://www.tyconpower.com |
| Brand Name | EZ-Bridge |
| Product Line | Ultra5 |
| Product Model | EZBR-ULTRA5 |
| Product Name | 5GHz 100Mbps Wireless Point to Point Bridge System |
| Product Type | Wireless Bridge |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11n |
| ISM Band | No |
| UNII Band | Yes |
| UNII Minimum Frequency | 5.18 GHz |
| UNII Maximum Frequency | 5.83 GHz |
| Antenna Gain (Isotropic) | 22 dBi |
| Antenna Type | Dish Antenna |
| Outdoor Antenna Range | 4 Mile |
| Wireless Transmission Speed | 300 Mbit/s |
| Wireless Security |
|
| MIMO Technology | Yes |
| Features | MIMO Technology |
| Interfaces/Ports | |
| Ethernet Technology | Ethernet |
| Ethernet Technology | Fast Ethernet |
| Network (RJ-11) | No |
| PoE (RJ-45) Port | No |
| VGA | No |
| HDMI | No |
| USB | No |
| Powerline | No |
| Management & Protocols | |
| Management |
|
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Form Factor | Pole-mountable |
| Depth | 10" |
| Diameter | 12.8" |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Warranty | |
| Limited Warranty | 1 Year |
