TYCON SYSTEMS

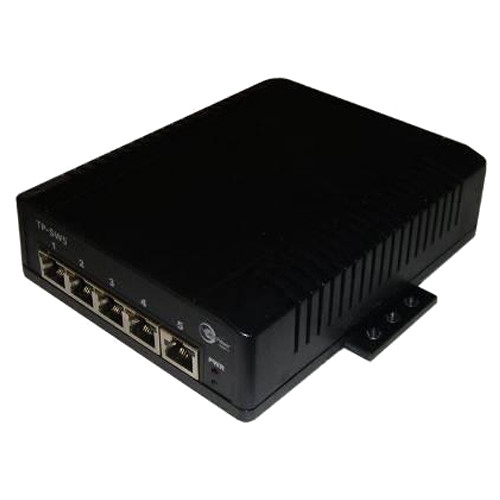

TYCON SYSTEMS TP-SW5G-24 Tycon Power POE 5 Port Switch
Mfg Part Number: TP-SW5G-24 , Item #: 1545858
Image may not reflect the actual item.
Price: $268.99
Quantity:
In Stock: 464
Last Updated: Jun 30, 2025
No Sales Tax except these states
, PO and Wire.
The SW5 Series Power Over Ethernet (POE) switches offered by Tycon Power Systems are fully automatic high speed 5 port Ethernet switches with up to 2A of POE power per port. The switch comes in 4 models:
TP-SW5G-D: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). 35W per port.
TP-SW5G-24: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port.
TP-SW5G-NC: Universal Voltage 10/100/1000MB POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive POE input on port 5. 1A per port.
TP-SSW5-NC: Universal Voltage 10/100 POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch. This model is very compact at only 4"x5"x1.5". 2A per port.
TP-SW5G-D: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). 35W per port.
TP-SW5G-24: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port.
TP-SW5G-NC: Universal Voltage 10/100/1000MB POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive POE input on port 5. 1A per port.
TP-SSW5-NC: Universal Voltage 10/100 POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch. This model is very compact at only 4"x5"x1.5". 2A per port.
Main Specification
| General Information | |
| Manufacturer | Tycon Power Systems |
| Manufacturer Part Number | TP-SW5G-24 |
| Manufacturer Website Address | http://www.tyconpower.com |
| Brand Name | Tycon Power |
| Product Series | TP-SW5 |
| Product Model | TP-SW5G-24 |
| Product Name | POE 5 Port Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Token Ring Port | No |
| LRE Port | No |
| Uplink Port | Yes |
| Bypass | No |
| Modular | No |
| Management Port | No |
| USB | No |
| Number of PoE (RJ-45) Ports | 5 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Uplink |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5 |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Power Source | PoE |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 1.6" |
| Width | 4.6" |
| Depth | 6.3" |
| Weight (Approximate) | 13.51 oz |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
