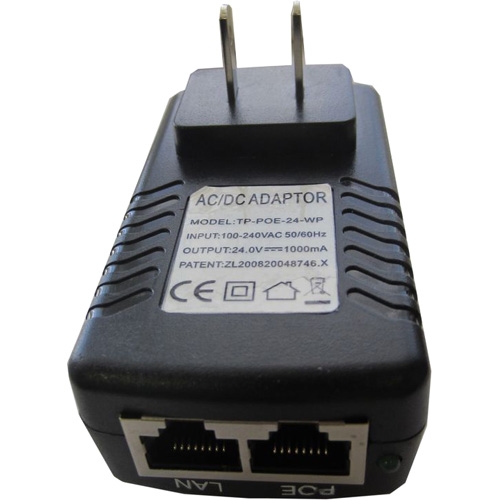

TYCON SYSTEMS TP-POE-48-WP Tycon Power Wall Plug POE Injector

The TP-POE-xx-WP Power Over Ethernet Power Sources are a low cost Passive POE inserter/injector compatible with a wide variety of passive POE powered devices. They are midspan devices, which means there is a data-in port and an output port with data and power. The RJ45 connectors are shielded so that the CAT5 cable shielding path is not interrupted between the data source (computer, router or switch) and the device being supplied with POE power. The small size and convenient wall plug design helps keep the installation simple and clean. The low cost makes them very affordable.

They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).

The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated DC Voltage at the POE output. They have various protections for short circuit, overload and overvoltage.
They have power output of up to 24W. They are available in 15V, 24V and 48V DC Output with load regulation within 5%. They have an LED to indicate power on.

General Information
Manufacturer	Tycon Power Systems
Manufacturer Part Number	TP-POE-48-WP
Manufacturer Website Address	http://www.tyconpower.com
Brand Name	Tycon Power
Product Model	TP-POE-48-WP
Product Name	Wall Plug POE Injector
Product Type	PoE Injector
Power Description
Input Voltage	120 V AC
Input Voltage	220 V AC
Maximum Output Voltage	48 V DC
Maximum Input Current	1 A
Maximum Output Current	500 mA
Maximum Output Power	24 W
Interfaces/Ports
Output Ports	Ethernet
Physical Characteristics
Height	1.4"
Width	1.8"
Length	3.3"
Weight (Approximate)	4.02 oz
Miscellaneous
Compatibility	Wireless Access Points Client Devices IP Phones Security Camera Systems
Certifications & Standards	UL 60950 CE
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	1 Year
