112-2167 Rack Solutions Dell T3600/5600 Shelf
Mfg Part Number: 112-2167 , Item #: 1536331
, PO and Wire.

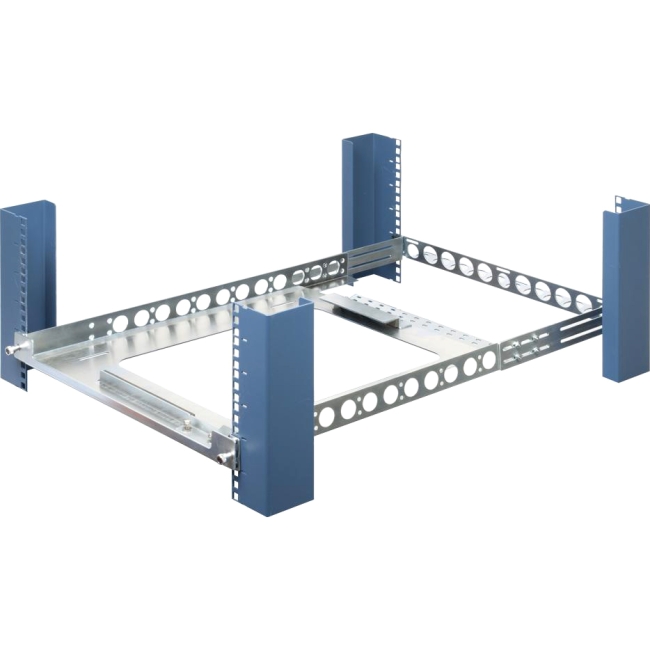

The Sliding Shelf/Rails for the Dell T3600 and T5600 mounts in any EIA-310, 19" rack with square, round or threaded holes. The T3600 or T5600 is secured to the shelf with a front and rear bracket allowing the shelf to dry slide on top of the metal flanges found on both sides of the universal, fixed mounting rails. The shelf slides completely out of the rack. The Sliding Shelf for the Dell T3600 and T5600 has a mounting depth range of 10 - 31.75" (254 - 806 mm). It includes a cabling crossbar that is optional for installation. Thumbscrews allow shelf for the T3600 and T5600 to be secured to the front of the rack. Cage nuts are required for square hole racks. This shelf is compatible with the Dell T3600, T3610, T5810, T5600, T5610 and Dell T7810.
| General Information | |
| Manufacturer | Rack Solutions |
| Manufacturer Part Number | 112-2167 |
| Manufacturer Website Address | http://www.racksolutions.com |
| Brand Name | Rack Solutions |
| Product Name | Dell T3600/5600 Shelf |
| Product Type | Rack Shelf |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Product Material | Zinc Plated Steel |
| Width | 16.8" |
| Depth | 20.5" |
| Rack Height | 4U |
| Rack Width | 19" |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | Fits any 4 Post Rack:
Rackmounts Dell T3600 and T5600:
|
| Compatibility | Dell Precision Workstations:
|
| Assembly Required | Yes |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
