I-Star USA Xeal Flex TC-1U22FX8 ATX12V Power Supply
Mfg Part Number: TC-1U22FX8 , Item #: 1535430

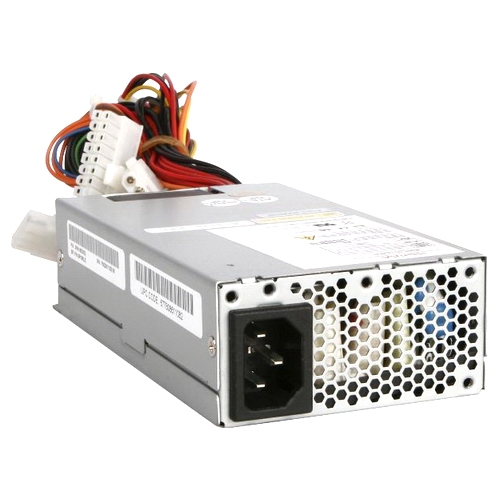

Image may not reflect the actual item.
Price: $177.08
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Nov 15, 2025
No Sales Tax except these states
, PO and Wire.
Introduce the industrial graded TC-1U22FX8 1U 150W Flex ATX power supply. Design to fit perfectly into your 1U rackmount chassis. Feature such as low noise, triple circuit protections, and active PFC. TC-1U22FX8 is the compact and versatile 1U power supply.
Main Specification
| General Information | |
| Manufacturer | iStarUSA, Inc |
| Manufacturer Part Number | TC1U22FX8 |
| Manufacturer Website Address | http://www.istarusa.com |
| Brand Name | Xeal |
| Product Series | Flex |
| Product Model | TC-1U22FX8 |
| Product Name | Flex TC-1U22FX8 ATX12V Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V |
| Efficiency | 80% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Protection Type | Output Over Voltage |
| Protection Type | Over Current |
| Protection Type | Short Circuit |
| Protection Type | Overload |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 2 |
| Input Voltage Type | AC |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Input Voltage Range | 90 V AC - 264 V AC |
| Output Voltage | 5 V |
| Output Voltage | 12 V |
| Output Voltage | 3.3 V |
| Output Voltage | -12 V |
| Output Voltage Detail | 12 V @ 10 A |
| Output Voltage Detail | -12 V @ 800 mA |
| Output Voltage Detail | 5 V @ 16 A |
| Output Voltage Detail | 5 V @ 2.5 A |
| Output Voltage Detail | 3.3 V @ 14 A |
| Output Voltage Detail | 12 V @ 16 A |
| Input Current | 5 A @ 110V |
| Input Current | 3 A @ 220V |
| Output Current | 10 A |
| Output Current | 2.50 A |
| Output Current | 800 mA |
| Output Current | 16 A |
| Output Current | 14 A |
| Output Power | 300 W |
| Interfaces/Ports | |
| Receptacles | 2 x 15-pin Serial ATA |
| Receptacles | 1 x 4-pin ATX12V Motherboard |
| Receptacles | 1 x 20+4pin ATX Motherboard |
| Receptacles | 3 x 4-pin LP4 Peripheral Device |
| Receptacles | 1 x 4-pin SP4 Floppy Drive |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.6" |
| Width | 3.2" |
| Depth | 5.9" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Standard |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
