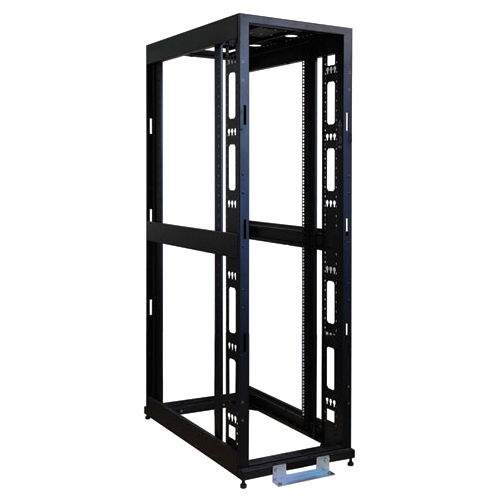

SR45UBMDEXPND Tripp Lite 45U Mid-Depth 4-Post SmartRack Premium Open Frame Rack
Mfg Part Number: SR45UBMDEXPND , Item #: 1528097
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.
Part of our new line of mid-depth racks, the SR45UBMDEXPND has a depth of 36" (914mm) opposed to the standard 43" (1092mm).
The SR45UBMDEXPND is a 45U SmartRack enclosure with NO doors and NO side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.
The SR45UBMDEXPND houses 3000 lb of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 45 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.
Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.
All components of the SR45UBMDEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.
To simplify deployment, the SR45UBMDEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.
The SR45UBMDEXPND comes with a 5-year product warranty. As part of the SmartRack family, the SR45UBMDEXPND is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SR45UBMDEXPND |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartRack |
| Product Model | SR45UBMDEXPND |
| Product Name | 45U Mid-Depth 4-Post SmartRack Premium Open Frame Rack |
| Product Type | Rack Frame |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Units Per Pallet | 1 |
| Dynamic/Rolling Weight Capacity | 2250 lb |
| Static/Stationary Weight Capacity | 3000 lb |
| Height | 83.8" |
| Width | 23.6" |
| Depth | 36" |
| Weight (Approximate) | 141.10 lb |
| Rack Height | 45U |
| Rack Width | 19" |
| Miscellaneous | |
| Package Contents |
|
| Additional Information |
Approvals:
|
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Product | - |
| Type | - |
| Outside Width | - |
| Outside Height | - |
| Outside Depth | - |
| Panel Height | - |
| Panel Width | - |
