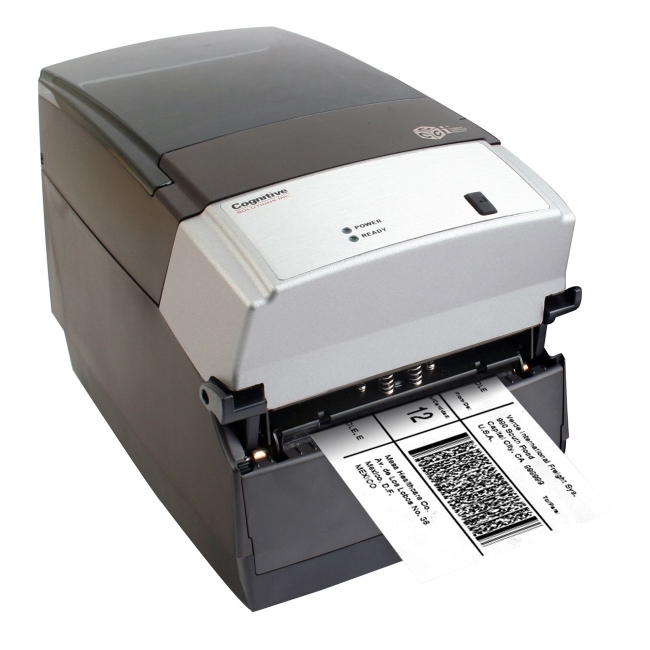

CXI Label Printer is the next generation of highperformancethermal label printers, bridging the gap between mid-range and desktop models. CXI printers deliver exceptional value as high-performance printers with small footprints, competitively priced .It is Rugged and reliable all-metal printer mechanism that prints continuously, Die-cast metal user interface to withstand harsh environments.
| General Information | |
| Manufacturer | Cognitive TPG |
| Manufacturer Part Number | CXD4-1330-RX |
| Manufacturer Website Address | http://www.cognitive.com |
| Brand Name | CognitiveTPG |
| Product Model | Cxi |
| Product Name | Cxi Thermal Label Printer |
| Product Type | Direct Thermal/Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 6 in/s |
| Maximum Print Resolution (dpi) | 300 |
| Maximum Print Width | 4.25" |
| Barcode Symbology Supported | D2 of 5 |
| Barcode Symbology Supported | POSTNET |
| Barcode Symbology Supported | UPC-E1 |
| Barcode Symbology Supported | Code 128-C |
| Barcode Symbology Supported | S2 of 5 |
| Barcode Symbology Supported | UPC-E |
| Barcode Symbology Supported | Codabar |
| Barcode Symbology Supported | Code 93 |
| Barcode Symbology Supported | EAN 128 |
| Barcode Symbology Supported | Plessey |
| Barcode Symbology Supported | UPC-A |
| Barcode Symbology Supported | MSI1 |
| Barcode Symbology Supported | Industrial 2 of 5 |
| Barcode Symbology Supported | Code 39 |
| Barcode Symbology Supported | EAN-13 |
| Barcode Symbology Supported | EAN-8 |
| Barcode Symbology Supported | Code 2 of 5 |
| Barcode Symbology Supported | Code 128-B |
| Barcode Symbology Supported | Code 128 |
| Barcode Symbology Supported | Code 128-A |
| Print Technology | Direct Thermal /Thermal Transfer |
| Memory | |
| Standard Memory | 16 MB |
| Memory Technology | SDRAM |
| Flash Memory | 8 MB |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Ethernet |
| Media Types & Handling | |
| Media Type | Black Mark |
| Media Type | Black Bar |
| Media Type | Fanfold |
| Media Type | Continuous Form |
| Media Type | Tag |
| Media Type | Notched |
| Media Type | Thermal Transfer Label |
| Media Type | Receipt |
| Media Type | Direct Thermal Label |
| Media Size | Custom Size |
| Media Sensor | Reflective Media Sensor |
| Media Sensor | Transmissive Media Sensor |
| Maximum Roll Diameter | 7.63" |
| Maximum Label Width | 4.68" |
| Maximum Label Length | 12.50 ft |
| Power Description | |
| Input Voltage | 220 V AC |
| Input Voltage | 110 V AC |
| Physical Characteristics | |
| Height | 7.1" |
| Width | 6.9" |
| Depth | 10.5" |
| Miscellaneous | |
| Package Contents |
|
| Additional Information |
|
| Platform Supported | PC |
| Warranty | |
| Limited Warranty | 2 Year |
