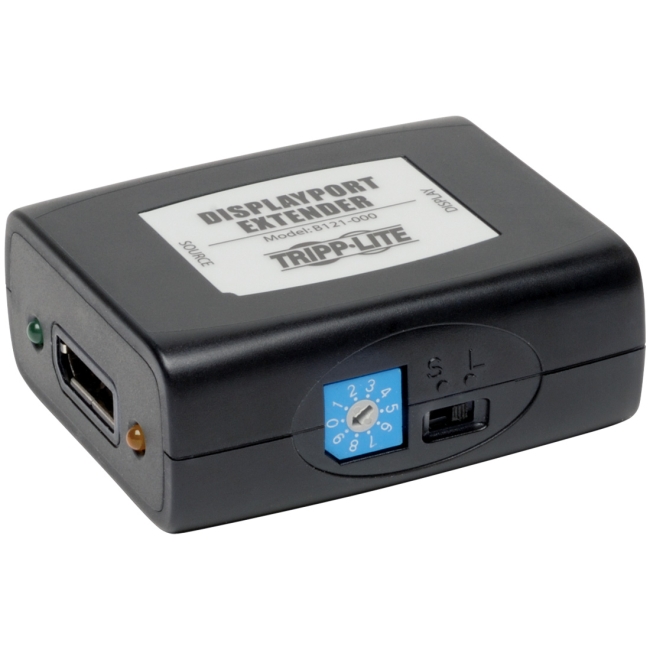

B121-000 Tripp Lite DisplayPort Extender Equalizer, Repeater for Video and Audio

Tripp Lite's B121-000 DisplayPort Signal Extender increases the distance a Displayport signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz, as well as a maximum distance of 150 ft. from the source. Use P580-Series Displayport cables in most applications. When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 100 ft., use cable made with 24Awg wiring. (Available from Tripp Lite as a custom order) Simply connect the longer cable between the source and the B121-000, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. Built-in Equalization control to adjust the video image. HDCP compliant. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

• Extend a Displayport signal up to 150 ft. from the source
• Supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz
• Use P580-Series Displayport Cables
• When extending a 1920x1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 100 ft., use a cable made with 24Awg wiring (Available from Tripp Lite as a custom order)
• Built-in Equalization control to adjust the video image
• HDCP compliant
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
