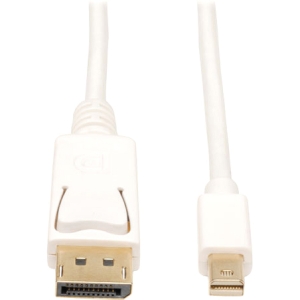

P583-006 Tripp Lite Mini DisplayPort to DisplayPort Cable (M/M) 6-ft
Mfg Part Number: P583-006 , Item #: 1495738
Image may not reflect the actual item.
Price: $34.99
+ Free Shipping
Quantity:
In Stock: 933
Last Updated: Jun 23, 2025
No Sales Tax except these states
, PO and Wire.
Sends Ultra High Definition Mini DisplayPort Audio/Video to DisplayPort Monitor or DisplayPort Audio/Video to Mini DisplayPort Monitor
- Connects mDP or Thunderbolt computer or laptop to DisplayPort monitor, TV or projector or connects the DisplayPort output on your computer or laptop to the Mini DisplayPort (mDP) or Thunderbolt input on your monitor, television or projector
- Recommended for displaying video on large monitor or digital sign
- No separate power adapter required
Vibrant Video Quality
- Supports UHD video resolutions up to 4096 x 2160 (4K x 2K) @ 60 Hz
- Meets DisplayPort 1.2 standards
- Supports High Bit Rate 2 (HBR2) bandwidth up to 21.6 Gbps
- Backward compatible with previous DisplayPort versions
Superior Materials for Superior Performance
- Locking DisplayPort connector prevents accidental disconnection
- Gold-plated connectors and contacts for maximum conductivity and minimum data loss
- Integral strain relief reduces stress and adds flexibility
Main Specification
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P583006 |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite series |
| Product Model | P583-006 |
| Product Name | 6ft Mini Displayport to Displayport Cable |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | DisplayPort/Mini DisplayPort |
| Cable Length | 6 ft |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | Mini DisplayPort 1.2 Thunderbolt Digital Audio/Video - Male |
| Connector on Second End Details | 1 x Mini DisplayPort 1.2 Thunderbolt Digital Audio/Video - Male |
| Connector Plating | Gold |
| Contact Plating | Gold |
| Conductor | Copper |
| Device Supported | Notebook |
| Device Supported | Projector |
| Device Supported | TV |
| Device Supported | Audio/Video Device |
| Device Supported | Monitor |
| Data Transfer Rate | 21.6 Gbit/s |
| Supported Resolution | 4096 x 2160 |
| Features | Flexible |
| Features | Strain Relief |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Shipping Height | 6" |
| Shipping Width | 4" |
| Shipping Weight (Approximate) | 3.20 oz |
| Miscellaneous | |
| Compatibility | Connect your PC or Mac with Mini Displayport (or Thunderbolt) to a Displayport Monitor or TV |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Product | - |
| Type | - |
| Connector End A | - |
| Connector End A Pin Count | - |
| Connector End B | - |
| Connector End B Pin Count | - |
| Gender | - |
| Wire Gauge - AWG | - |
| Length | - |
| Color | - |
