OMNITRON
8923N-2 Omnitron Systems iConverter GX/TM2 Media Converter
Mfg Part Number: 8923N-2 , Item #: 1486747
, PO and Wire.
The iConverter GX/TM2 conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The GX/TM2 provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and enhanced Bandwidth Control (rate-limiting) capabilities. The GX/TM2 features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.

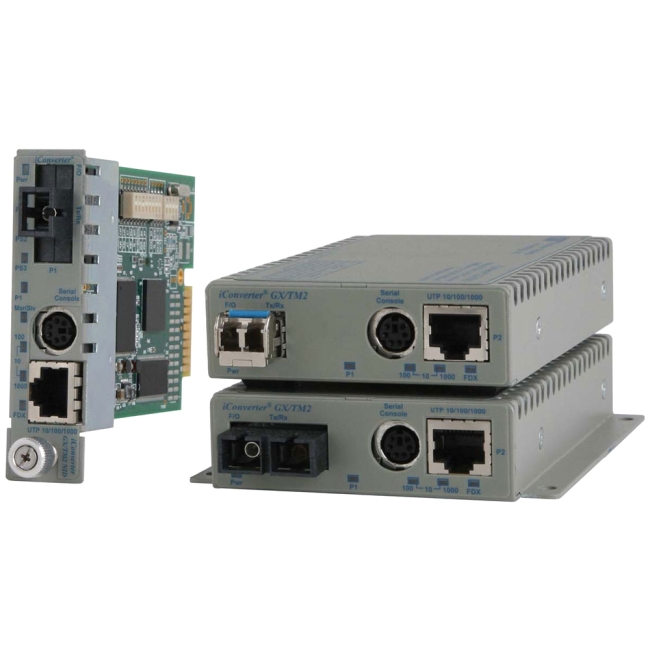

The GX/TM2 is available as a compact standalone unit or as a chassis plug-in module. The hot-swappable GX/TM2 plug-in module can be mounted in a 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.
| General Information | |
| Manufacturer | Omnitron Systems |
| Manufacturer Part Number | 8923N-2 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Brand Name | Omnitron Systems |
| Product Line | iConverter |
| Product Model | GX/TM2 |
| Product Name | iConverter GX/TM2 Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Parallel Port | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Number of Serial Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Maximum Distance Supported | 34 km |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| Power Description | |
| Input Voltage | 3.3 V DC |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 2.8" |
| Width | 0.9" |
| Depth | 4.5" |
| Weight (Approximate) | 8 oz |
| Miscellaneous | |
| Compatibility | Omnitron Systems Media Converter Chassis:
|
| Certifications & Standards | Compliance:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
