TRIPP LITE

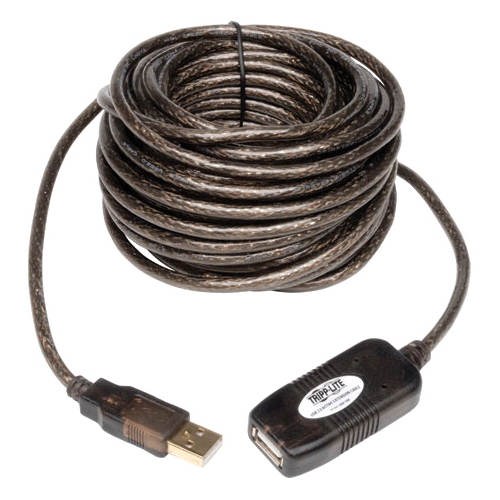

U026-10M Tripp Lite USB 2.0 Hi-Speed Active Extension Repeater Cable (A M/F) 10 Meter (33-ft.)
Mfg Part Number: U026-10M , Item #: 1481166
, PO and Wire.
Tripp Lite's 10-meter ( 33 ft. ) USB 2.0 active extension cable is a bus powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16ft. Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 131ft by daisy chaining up to 4 of these active cables. The cable must be plugged directly into a USB port (either on the PC or a hub). Use a standard 6' 10' or 15' USB A-B cable to reach the desired distance. The U026-10M provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-10M.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | U026-10M |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite by Eaton |
| Product Model | U026-10M |
| Product Name | 10-meter ( 3.28 ft. ) USB2.0 A/A Hi-Speed Active Extension / Repeater Cable |
| Product Type | Signal Amplifier |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Media & Performance | |
| Maximum Operating Distance | 32.81 ft |
| Physical Characteristics | |
| Length | 32.8 ft |
| Miscellaneous | |
| Additional Information |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Product | - |
| Type | - |
| Connector End A | - |
| Connector End A Pin Count | - |
| Connector End B | - |
| Connector End B Pin Count | - |
| Gender | - |
| Jacket Material | - |
| Voltage Rating | - |
| Number of Conductors | - |
| Wire Gauge - AWG | - |
