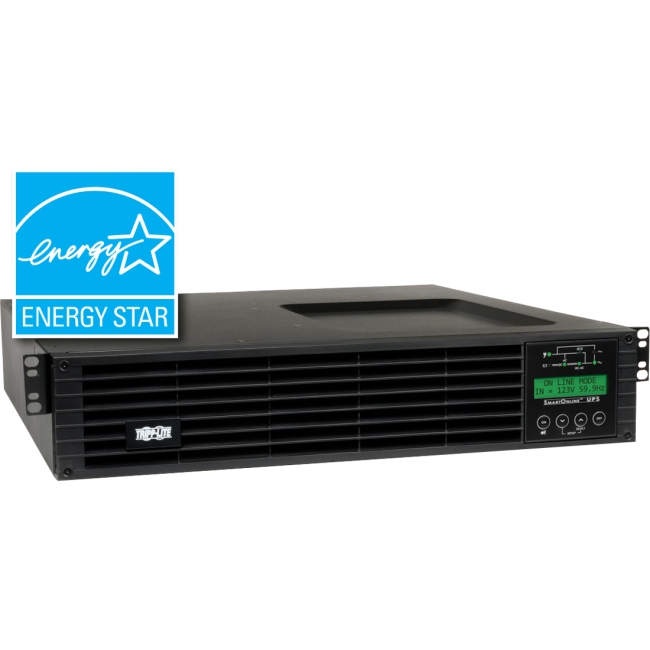

Tripp Lite SmartOnline SU2200RTXLCD2U 2200VA Tower/Rack Mountable UPS

2kVA 1.8kW 120V Battery Backup Protects Equipment against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU2200RTXLCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72RT, sold separately).

Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

NEMA Outlets Protect Your Connected Components
One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split evenly into two switchable load banks that let you reboot select components or shed non-critical loads to extend runtime for critical loads. A cooling fan helps protect equipment from overheating.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The two-line front-panel LCD monitoring screen features 10 selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status: a green light means utility power is on, an orange light means the UPS is in battery or bypass mode and a red light indicates an active alarm or fault. The control panel rotates to accommodate both rack-mount and tower configurations.

Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even after a complete battery discharge.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	SU2200RTXLCD2U
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartOnline
Product Model	SU2200RTXLCD2U
Product Name	SmartOnline SU2200RTXLCD2U 2000VA Rack/Tower UPS
Product Type	Double Conversion Online UPS
Technical Information
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA L5-20R
Receptacle Type	NEMA 5-20R
Receptacle Detail	6 x NEMA 5-20R
Receptacle Detail	1 x NEMA L5-20R
Overload Protection	Yes
Bypass Switch	Internal
Bypass Switch	Automatic
Emergency Power OFF	Yes
Transfer Time	0 ns
EMI/RFI Noise Filter	Yes
Phase	Single Phase
Energy Saving	High efficiency economy mode operation; Individually controllable load banks
Application/Usage	Education
Application/Usage	Government
Application/Usage	Healthcare
Application/Usage	IT Equipment
Application/Usage	Mission Critical Equipment
Application/Usage	Military
Power Description
Load Capacity (VA)	2000 VA
Load Capacity (Watt)	1800 W
Input Voltage	120 V AC
Output Voltage	115 V AC
Output Voltage	127 V AC
Output Voltage	120 V AC
Output Voltage	110 V AC
Output Voltage	100 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Pure Sine Wave
Surge Energy Rating	190 J
Input Power Factor	0.99
Output Power Factor	0.9
Display & Graphics
Display	LCD
Management
Network Management	SNMP
Alarm	UPS StartUp
Alarm	Remote Shutdown
Alarm	Overload
Alarm	Power Failure
Alarm	Low Battery
Alarm	UPS Fault
Controls/Indicators
Status Indicators	4 x status-indicating LEDs
Interfaces/Ports
Serial Port	Yes
USB	Yes
Battery Information
DC System Voltage	72 V DC
Battery Characteristics	Valve-regulated
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	7.70 Minute
Backup/Run Time (Half Load)	20.20 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Replaceable Battery	Yes
Environmental Conditions
Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	32°F (0°C) - 104°F (40°C)
Maximum Operating Elevation	9842.52 ft
Sound Emission	47 dB
Physical Characteristics
Height	3.4"
Width	17.3"
Depth	23.8"
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	61.51 lb
Miscellaneous
Package Contents	SmartOnline SU2200RTXLCD2U 2000VA Rack/Tower UPS USB Cable DB9 RS232 Cable Rack-mounting Hardware Tower Support Stands Safety Instructions Quick Start Guide
Certifications & Standards	FCC Class A
Software Included	PowerAlert UPS Monitoring Software
Energy Star	Yes
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty	2 Year
