CyberPower TAA Compliant CP1000PFCLCDTAA UPS 1000VA 600W PFC Compatible Pure Sine Wave

Mfg Part Number:  CP1000PFCLCDTAA
Image may not reflect the actual item.
MAP Price: $222.95 + Free Shipping
Quantity:
In Stock: 6
Last Updated: May 18, 2025
No Sales Tax except these states
, PO and Wire.

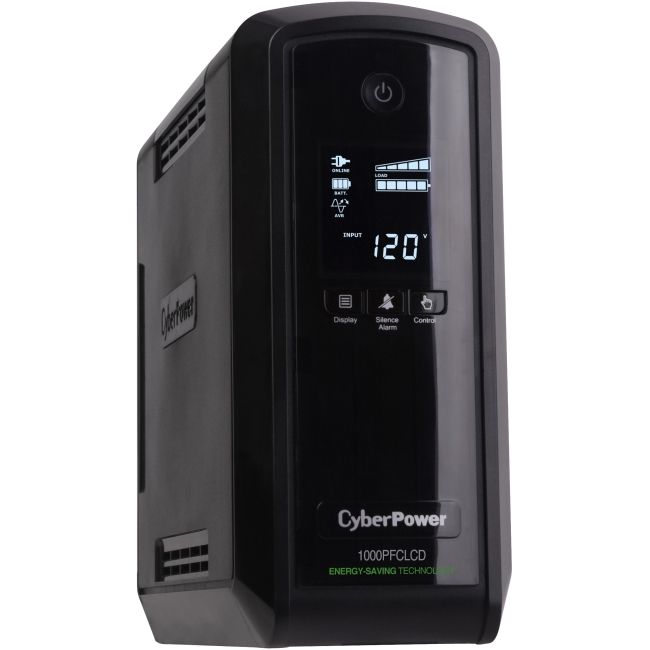

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1000PFCLCDTAA provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, and networking devices requiring active PFC power source compatibility.

The CP1000PFCLCDTAA features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.

The CP1000PFCLCDTAA uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1000PFCLCDTAA comes with a three-year warranty (including coverage of batteries) and a $350,000 Connected Equipment Guarantee.

Main Specification
General Information
Manufacturer CyberPower Systems, Inc
Manufacturer Part Number CP1000PFCLCDTAA
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series TAA Compliant UPS & Hardware
Product Model CP1000PFCLCD
Product Name TAA Compliant CP1000PFCLCDTAA UPS 1000VA 600W PFC Compatible Pure Sine Wave
Product Condition New
Product Type Line-interactive UPS
Technical Information
AVR Yes
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 10 x NEMA 5-15R
Number of Battery & Surge Outlets 5
Number of Surge-only Outlets 5
Dataline Protection RJ-45
Dataline Protection RJ-11
Overload Protection Yes
Cord Length 5 ft
Transfer Time 4 ms
EMI/RFI Noise Filter Yes
Energy Saving GreenPower UPS™ Bypass Technology
Power Description
Load Capacity (VA) 1000 VA
Load Capacity (Watt) 600 W
Input Voltage 120 V AC
Input Voltage Range 88 V AC - 144 V AC
Output Voltage 120 V AC
Input Frequency 63 Hz
Waveform Type Sine Wave
Surge Energy Rating 1150 J
Circuit Breaker Yes
Management
Alarm Battery Mode
Controls/Indicators
Status Indicators Power On
Interfaces/Ports
Serial Port Yes
EPO Port No
USB (HID Compliant) Port Yes
Battery Information
Number of Batteries 1
Battery Characteristics Maintenance-free
Battery Chemistry Lead Acid
Battery Size 12V
Battery Capacity 9000 mAh
Backup/Run Time (Full Load) 1 Minute
Backup/Run Time (Half Load) 8 Minute
Typical Battery Recharge Time 8 Hour
Hot Swappable Yes
Replaceable Battery Yes
Environmental Conditions
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation 10000 ft
Physical Characteristics
Color Family Black
Product Color Black
Height 9.7"
Width 3.9"
Depth 10.2"
Form Factor Mini-tower
Weight (Approximate) 18 lb
Miscellaneous
Package Contents
  • TAA Compliant CP1000PFCLCDTAA UPS 1000VA 600W PFC Compatible Pure Sine Wave
  • PowerPanel Personal Edition Software CD
  • USB Cable
  • Telephone Cable
  • User Manual
  • Registration Card
  • Coax Cable
Additional Information
  • Replacement Battery Cartridge Quantity: 1
  • Circuit Breaker: 15 A
  • Cord Length: 5 ft (1.5 m)
  • Input Frequency Range: 57 Hz - 63 Hz
  • Plug Style: Right Angle - 45° Offset
  • Automatic Voltage Regulation: Single Boost
  • On Battery Frequency: 60 Hz ± 1%
  • On Battery Voltage: 120 VAC ± 5%
  • On Battery Waveform: Sine Wave
  • Output Power Factor: 0.6
  • Overload Protection: Internal Circuitry Limiting
  • Under/Over-Voltage Correction: +11.5%
  • USB Charge Port: Yes
  • USB Charge Port Amperage: 3.1 Amps (Shared)
  • USB Charge Port Quantity: 2
  • USB Charge Port Type COMPUTED: 1 Type A
  • USB Charge Port Voltage COMPUTED: 5 VDC
  • LCD: Multifunction LCD
  • Management Cable: USB Cable
  • Serial Port: 1 Dry Contact
  • Software (Free Download): PowerPanel® Personal
  • Material of Construction: Plastic
  • Operating Relative Humidity: 0 - 95 % (non-condensing)
  • Operating Temperature: 32 - 104 °F (0 - 40 °C)
Certifications & Standards
  • UL1778
  • cUL 107.3
  • FCC DOC Class B
Software Included PowerPanel Personal Edition Software
Energy Star Yes
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Directly Connected Equipment Guarantee $350000 Lifetime
