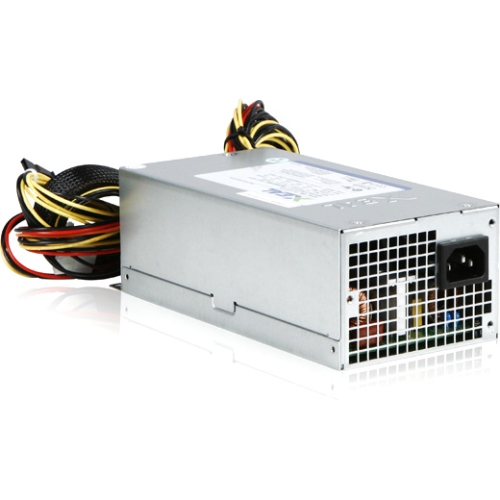

I-Star USA Xeal IS-2U35PD8 ATX12V & EPS12V Power Supply
Mfg Part Number: IS-2U35PD8 , Item #: 1345862
Image may not reflect the actual item.
Price: $219.18
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 01, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | iStarUSA, Inc |
| Manufacturer Part Number | IS2U35PD8 |
| Manufacturer Website Address | http://www.istarusa.com |
| Brand Name | Xeal |
| Product Model | IS-2U35PD8 |
| Product Name | IS-2U35PD8 ATX12V & EPS12V Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Efficiency | 82% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Protection Type | Over Voltage |
| Protection Type | Short Circuit |
| Protection Type | Over Current |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage Type | AC |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Input Voltage Range | 90 V AC - 132 V AC |
| Input Voltage Range | 180 V AC - 264 V AC |
| Output Voltage | -12 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage | 5 V DC |
| Output Voltage | 12 V DC |
| Output Voltage Detail | 5 V DC @ 3 A |
| Output Voltage Detail | 3.3 V DC @ 20 A |
| Output Voltage Detail | 12 V DC @ 29 A |
| Output Voltage Detail | -12 V DC @ 800 mA |
| Output Voltage Detail | 5 V DC @ 20 A |
| Input Current | 5 A @ 110V |
| Input Current | 2.5 A @ 220V |
| Output Current | 800 mA |
| Output Current | 29 A |
| Output Current | 20 A |
| Output Current | 3 A |
| Output Power | 350 W |
| Interfaces/Ports | |
| Receptacles | 2 x Serial ATA |
| Receptacles | 4 x 4-pin LP4 Peripheral Device |
| Receptacles | 1 x 8-pin EPS12V Motherboard |
| Receptacles | 1 x 24-pin ATX Motherboard |
| Receptacles | 1 x 4-pin ATX12V Motherboard |
| Receptacles | 1 x 4-pin SP4 Floppy Drive |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 2.8" |
| Width | 3.9" |
| Depth | 7.9" |
| Weight (Approximate) | 4 lb |
| Miscellaneous | |
| Compatibility | Servers |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Standard |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
