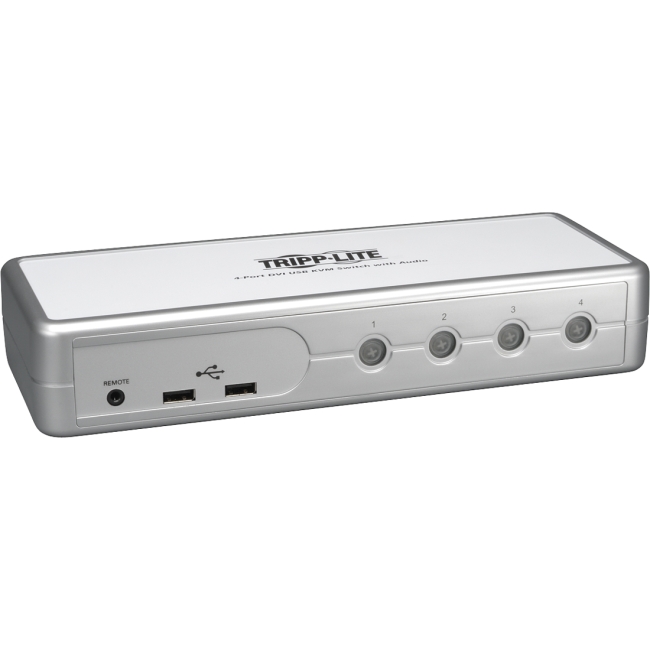

The B004-DUA4-K-R is a 4-Port DVI/USB KVM Switch with audio and USB 2.0 peripheral sharing. It allows you to access, control, boot and reboot four computers from a single USB keyboard, USB mouse, and monitor. Switching between connected computers is quick and simple using keyboard hotkeys or pushbuttons. An independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the same time.
The B004-DUA4-K-R uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor. Whichever you use, full time DDC support provides the necessary EDID information required for optimal video performance on Windows 7 and other operating systems. Supports USB Dynamic Device Mapping (DDM). Compatible with all major operating systems.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B004-DUA4-K-R |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | B004-DUA4-K-R |
| Product Name | B004-DUA4-K-R KVM Switch |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Video | |
| Graphic Mode | QXGA |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 2048 x 1536 |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| Microphone | Yes |
| Number of USB Ports | 10 |
| Number of DVI Ports | 5 |
| Power Description | |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
