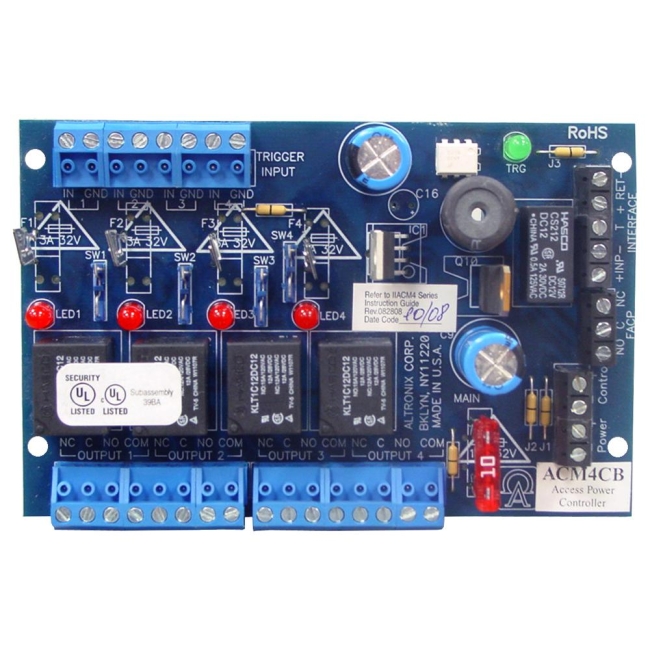

ALTRONIX ACM4CB ACCESS DIST MOD 4 PTC PWR OUT 12/24DC OPER FAI SELECTABLE BY OUT

ACM4CB converts one (1) 12 to 24 volt AC or DC input into four (4) independently controlled Class 2 Rated Power Limited PTC protected outputs. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. Unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the four (4) outputs.

General Information
Manufacturer	Altronix Corporation
Manufacturer Part Number	ACM4CB
Manufacturer Website Address	http://www.altronix.com
Brand Name	Altronix
Product Series	ACM
Product Model	ACM4CB
Product Name	ACM4CB Power Module
Product Type	Power Module
Power Description
Output Voltage	12 V DC
Physical Characteristics
Height	1.3"
Width	3.6"
Depth	5.1"
Miscellaneous
Compatibility	Card Reader Access Control Devices: Mag Lock Electric Strike Magnetic Door Holder
Certifications & Standards	UL294
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	United States
NDAA Compliant	Yes
Warranty
Limited Warranty	Lifetime
