Moxa NPort S8458-4S-SC-T 4 RS-232/422/485 ports, 4 10/100M Ethernet ports, 4 100M single-mode fiber ports with SC connector, 12-48VDC, -40 to 85 operating temperature

MOXA Major Lines
Mfg Part Number:  NPort S8458-4S-SC-T

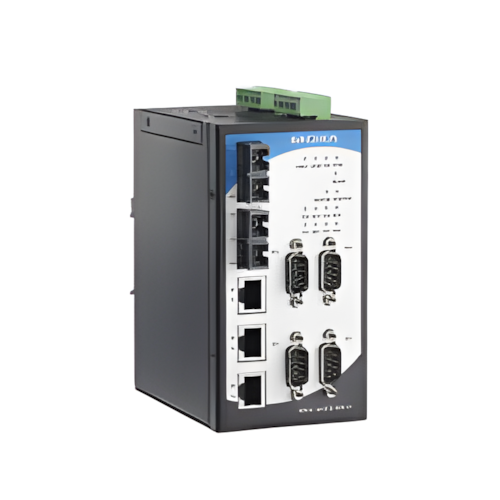

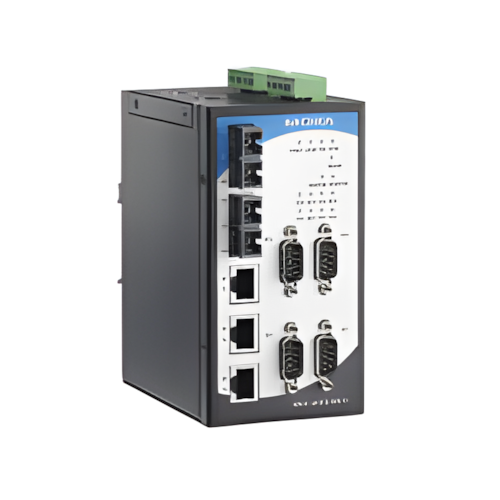

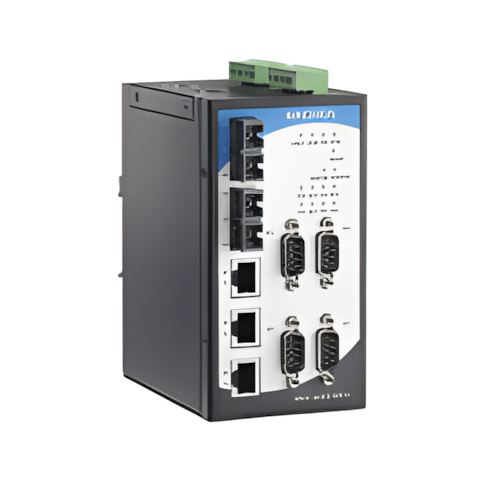

Image may not reflect the actual item.
Price: $2,198.93
Quantity:
In Stock: 2
No Sales Tax except these states
, PO and Wire.
Manufacturer Warranty Policy:
    Box Content includes:
  • CBL-RJ45F9-150: 1.5M 8-pin RJ45 to female DB9 RS-232 (DCE) cable for NP5600, NP5210, CP104JU

Check here for other accessories.

Mechanical
Dimensions: WxHxD (mm) 93 x 144 x 125
Mounting Din Rail Mount
Enclosure Metal
Interface
Serial interface RS232/RS422/RS485
Serial interface number of ports 4
Serial Interface type of connector DB9
Network interface 4 Port Ethernet RJ45/4 Port Fiber SC Connector
Network interface number of ports 4 Ethernet/ 4 Fiber
Network interface type of connector RJ45/SC
Power
Power Input Type Single DC / Terminal Block
Operating Supply Voltage 12 to 48 VDC
Power Consumption 940 mA @ 12V
Reliability
Operating Temperature -40 to 85C
Isolation Protection Yes
Surge Protection Yes
Standards and Certifications Safety UL 60950-1, EN 60950-1, EMC CE, FCC, EMI EN 55022 Class A, FCC Part 15 Subpart B Class A, EMS EN 55024
