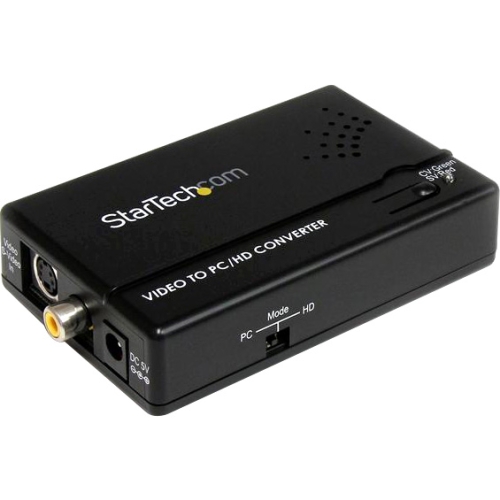

VID2VGATV2 StarTech.com Composite and S-Video to VGA Video Scan Converter

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets. Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer

More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	VID2VGATV2
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	Composite and S-Video to VGA Video Scan Converter
Packaged Quantity	1 Each
Product Type	Signal Converter
Technical Information
Functions	Signal Conversion
Functions	Video Scaling
Video Signal Format	NTSC
Video Signal Format	PAL
Maximum Resolution	1600 x 1200
Video Formats	HDTV
Platform Supported	PC
Analog Signal	Yes
Interfaces/Ports
VGA	Yes
Number of VGA Outputs	1
S-Video	Yes
Number of S-Video Inputs	1
Composite Video	Yes
Number of Composite Video Inputs	1
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	External
Height	1"
Width	2.5"
Length	4.4"
Weight (Approximate)	0.19 lb
Miscellaneous
Package Contents	Composite and S-Video to VGA Video Scan Converter VGA to Component (RCA) breakout cable Universal Power Adapter Instruction Manual
Additional Information	Automatically detects the input resolution while allowing you to customize the output resolution and refresh rate using the On-Screen Display, ensuring compatibility with your display or projector Adjustments for brightness, contrast, color, RGB level and horizontal/vertical positioning offers flexibility Offers a pure hardware design, with no software installation required, delivering an easy-to-use and time-saving solution
Certifications & Standards	CE FCC
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
