PCI2S4851050 StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
Mfg Part Number: PCI2S4851050 , Item #: 1278507
, PO and Wire.

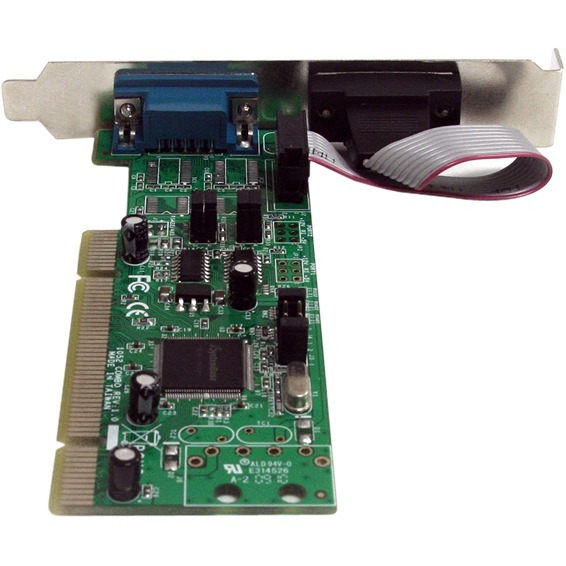

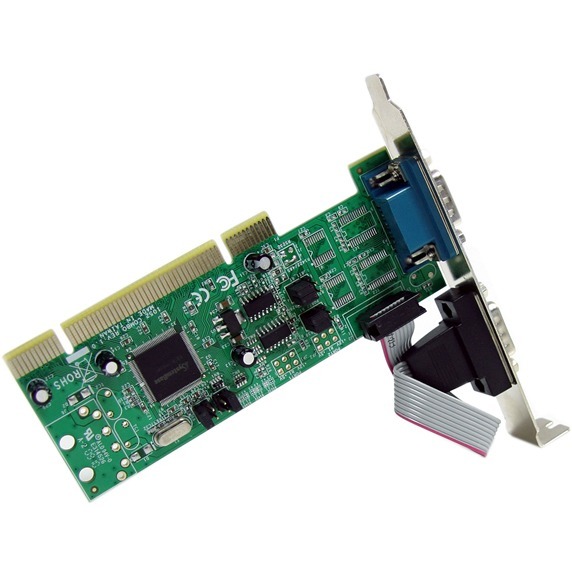

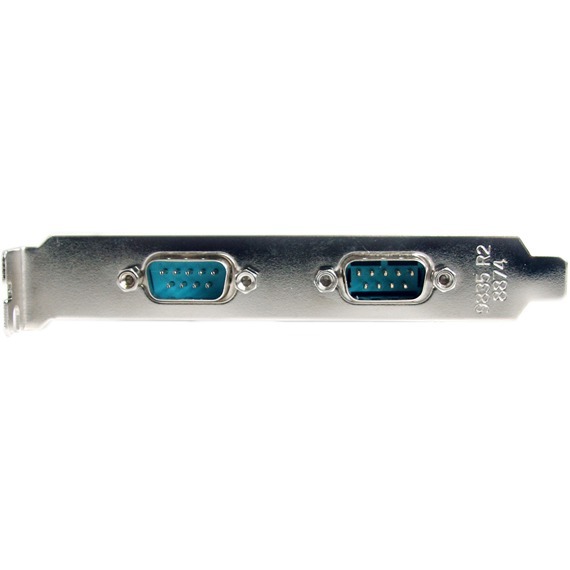

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
More from the Manufacturer
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PCI2S4851050 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART |
| Packaged Quantity | 1 |
| Product Type | Serial Adapter |
| Technical Information | |
| Host Interface | Universal PCI |
| Data Transfer Rate | 128kB/s |
| UART Type | 161050 |
| Platform Supported | PC |
| Interfaces/Ports | |
| Number of Serial Ports (External) | 2 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Card Height | Dual-profile |
| Height | 1.8" |
| Width | 0.6" |
| Length | 4.7" |
| Weight (Approximate) | 2 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
