, PO and Wire.
Certifications: DNVEN 55032/EN 55024FCC Part 15BLVD(EN 60950-1)RoHSUL508
| Interface | |
| LAN | 1 RJ45 port |
| Digital Inputs | 1 input • +13 to +30 V for state "1" • -30 to +3 V for state "0" • Max. input current: 8 mA |
| WAN | 1 RJ45/fiber combo port |

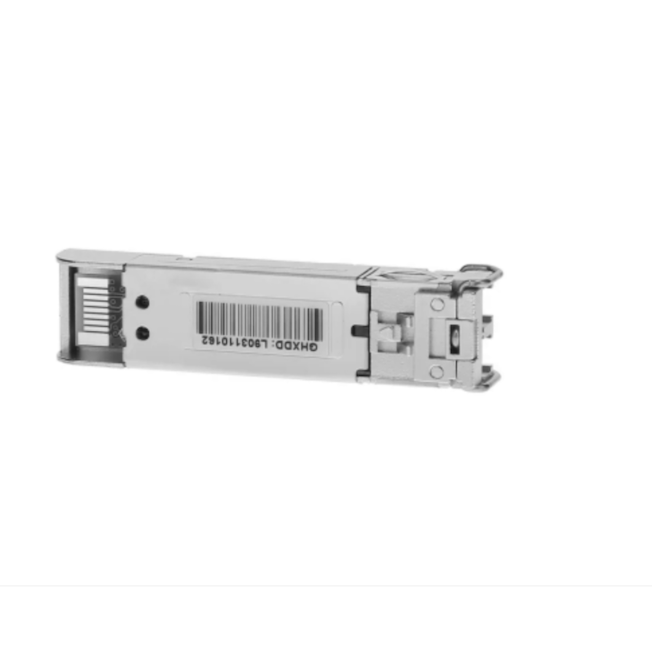

| Fiber Ports | 100/1000BaseSFP slot |
| LED Indicators | PWR1, PWR2, FAULT, 10/100/1000M |
| Alarm Contact | One relay output with current carrying capacity of 1 A @ 24 VDC |
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed |
| Power Requirements | |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Input Voltage | 12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs |
| Input Current | 0.53 A @ 24 V |
| Connection | Removable terminal block |
| Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocols | SNMPv1/v2c/v3, DHCP Server/Client, TFTP, NTP, HTTP, HTTPS, Telnet, SSH, Syslog, SMTP, LLDP, PPPoE, PPTP, Dynamic DNS, QoS (Quality of Service), VRRP |
| Routing | Static routing, RIP V1/V2 |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95 % (non-condensing) |
| MTBF (mean time between failures) | |
| Time | 530,000 hrs |
| Database | Telcordia (Bellcore), GB |
| Physical Characteristics | |
| Weight | 1250 g |
| Dimensions | 51 x 152 x 131.1 mm (2.01 x 5.98 x 5.16 in) |
| Installation | DIN-Rail mounting, wall mounting (with optional kit) |
| Housing | Metal, IP 30 protection |
| Security Function | |
| Encryption | DES, 3DES, AES |
| VPN | IPSec, L2TP, PPTP |
| NAT | N-to-1, 1-to-1, and port forwarding |
| Data Throughput | 300 Mbps (large packets) |
| Authentication | Pre-shared key (PSK), X.509v3 certificates, MD5, SHA |
| VPN Throughput | 60 Mbps (AES-256, SHA-256) |
| Firewall | • Stateful inspection • Filter: IP and MAC address, ports, protocol • Bridge mode firewall |
| Quick Automation Profile | EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, LonWorks, Modbus/TCP, PROFINET, IEC 60870-104, DNP, FTP, SSH, Telnet, HTTP, IPSec, L2TP, PPTP, RADIUS |
| Standards and Certifications | |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| Safety | UL 60950-1, UL 508 (pending) |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| EMS | EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3 |
| Freefall | IEC 60068-2-32 |
| Marine | DNV (Pending), GL (Pending) |
| Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
