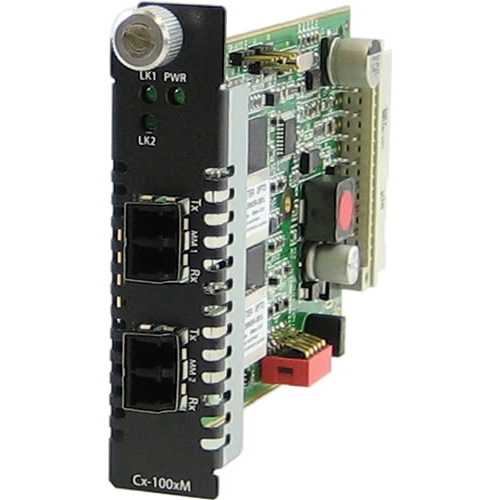

Installed in a high density Perle Media Converter Chassis, Perle's feature rich C-100MM Fast Ethernet Fiber to Fiber Media Converter Module enables transparent fiber extension of 100Base-FX multimode fiber to 100Base-FX multimode or 100Base-LX/EX/ZX/BX single mode fiber.
Perle's advanced features make the end to end fiber link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. In addition, a lifetime warranty and free worldwide technical support make Perle's C-100MM Fast Ethernet Fiber to Fiber Media Converter Modules the smart choice for IT professionals.
Whether you need to extend multimode to multimode or multimode to single mode, Perle has an extensive range of C-100MM Fast Ethernet Fiber to Fiber Media Converter Modules to meet your fiber conversion requirement.
| General Information | |
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05062020 |
| Manufacturer Website Address | http://www.perle.com |
| Brand Name | Perle |
| Product Model | CM-100MM-M2LC2 |
| Product Name | CM-100MM-M2LC2 Transceiver |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Number of LC Ports | 2 |
| LC Port Type | Duplex |
| Media & Performance | |
| Maximum Distance Supported | 2 km |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 85/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm |
| Fiber Optic Cable Core/Cladding Specification | 100/140 µm |
| Network & Communication | |
| Network Technology | 100Base-FX |
| Physical Characteristics | |
| Form Factor | Internal |
| Weight (Approximate) | 5.28 oz |
| Miscellaneous | |
| Compatibility | Perle MCR1900 Media Converter Chassis |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
