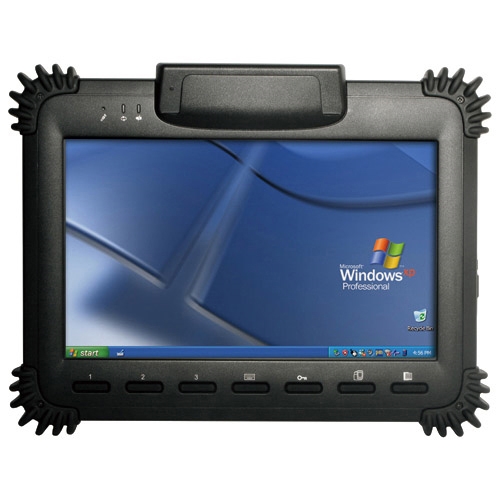

The WebDT 390 features the integration of a brilliant 8.9" touch screen and a high performance, energy-efficient Intel Atom processor within a slim, lightweight, durable package. With options for a RFID, smart card and magnetic stripe reader, barcode scanner, and 3-mega-pixel camera, this robust tablet offers seamless information capture for improved workflow. Rated IP64 for water and dust resistance, with on-screen keyboards and optional outdoor-viewable display, the WebDT 390 performs on the sales floor, in the warehouse and in the field.
| General Information | |
| Manufacturer | DT Research, Inc |
| Manufacturer Part Number | 390X-240 |
| Manufacturer Website Address | http://www.dtresearch.com |
| Brand Name | DT Research |
| Product Line | WebDT |
| Product Model | 390 |
| Product Name | WebDT 390 Net-tablet PC |
| Product Type | Tablet |
| Processor | |
| Processor Type | Atom |
| Processor Model | Z530 |
| Processor Speed | 1.60 GHz |
| Processor Core | Single-core (1 Core) |
| Cache | 512 KB |
| Bus Speed | 533 MHz |
| 64-bit Processing | No |
| Hyper-Threading | Yes |
| Memory | |
| Standard Memory | 2 GB |
| Memory Technology | DDR2 SDRAM |
| Storage | |
| Flash Memory Capacity | 8 GB |
| Display & Graphics | |
| Screen Size | 8.9" |
| Display Screen Type | Active Matrix TFT Color LCD |
| Aspect Ratio | 128:75 |
| Screen Mode | WSVGA |
| Screen Resolution | 1024 x 600 |
| Backlight Technology | LED |
| Touchscreen | Yes |
| Digitizer | Yes |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 1 |
| Number of USB 2.0 Ports | 1 |
| Audio Line Out | Yes |
| Input Devices | |
| Keyboard | No |
| Pointing Device Type | Stylus |
| Built-in Devices | |
| Microphone | Yes |
| Speakers | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows XP Embedded |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3760 mAh |
| Maximum Battery Run Time | 4 Hours |
| Power Description | |
| Input Voltage | 220 V AC |
| Input Voltage | 110 V AC |
| Physical Characteristics | |
| Rugged | Yes |
| Form Factor | Slate |
| Height | 7.7" |
| Width | 10" |
| Depth | 1.3" |
| Weight (Approximate) | 2.43 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Security Features | SmartCard Reader |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
| Category | |
| Product Categories | Industrial Rugged Tablet |
| Display | |
| Size | 8.9" |
| Resolution | 1024x600 |
| Touch Screen | |
| Touch Type | Resistive |
| Hardware | |
| CPU | Intel Atom Z530 Single-core |
| Software | |
| Operating System | Windows XP Embedded |
| Power | |
| Input Voltage | 19Vdc |
