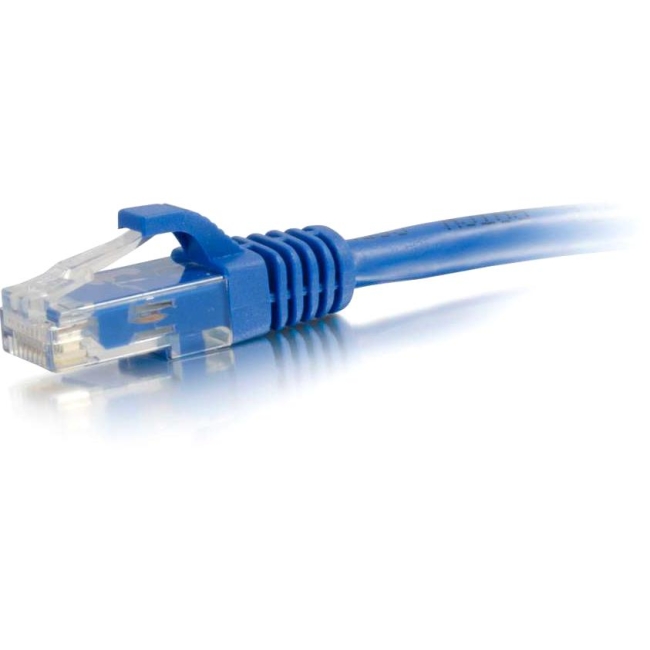

Ortronics C2G 15212 25ft Cat5e Snagless Unshielded (UTP) Network Patch Cable - Blue

For fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

General Information
Manufacturer	Legrand Group
Manufacturer Part Number	15212
Manufacturer Website Address	http://www.legrand.us
Brand Name	C2G
Product Name	25ft Cat5e Unshielded Ethernet Cable - Cat 5e Network Patch Cable - BLU
Packaged Quantity	1
Package Type	Retail
Product Type	Network Cable
Technical Information
Cable Type	Category 5e
Cable Characteristic	Patch Cable
Cable Length	25 ft
Connector Type on First End	RJ-45 Network - Male
Connector on First End Details	1 x RJ-45 Network - Male
Connector Type on Second End	RJ-45 Network - Male
Connector on Second End Details	1 x RJ-45 Network - Male
Conductor	Copper
Boot Type	Snagless
Features	Strain Relief
Features	Molded
Features	Minimized Near-End Crosstalk (NEXT)
Physical Characteristics
Color Family	Blue
Product Color	Blue
Jacket Material	Polyvinyl Chloride (PVC)
Weight (Approximate)	0.60 lb
Miscellaneous
Additional Information	Applications: 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5) 100 VG-AnyLAN 100 Mbps TP-PMD (ANSI X3T9.5) 55/155 Mbps ATM Voice
Compatibility	Hub Switch Router Network Adapter Modem DSL/Cable Patch Panel And other twisted pair applications
Certifications & Standards	TIA/EIA 568B UL Listed
Country of Origin	China
Warranty
Limited Warranty	Lifetime

Today's advanced networks often require high-speed cabling to distribute information. CTG would like to help you stay ahead of the game. CTG offers you the latest in Ethernet wiring configurations - new Enhanced Category 5 Patch Cables!

These cables accommodate speeds of up to 350 MHz when connected to the appropriate hardware. Each comes UL certified to meet all Cat 5 standards, and drastically reduces both impedance and structural return loss (SRL) compared to standard 100 MHz wire! This is accomplished by bonding together each of the individual pairs, helping to maintain the twist-spacing throughout the line and up to your termination point. The EIA/TIA568B cables are constructed with high-quality Belden wire, and their shortened body plug design keeps Near-end Crosstalk (NEXT) levels to a minimum. Their molded "snag-free" jackets prevent unwanted cable snags during installation and are available in a variety of colors for easy identification.
