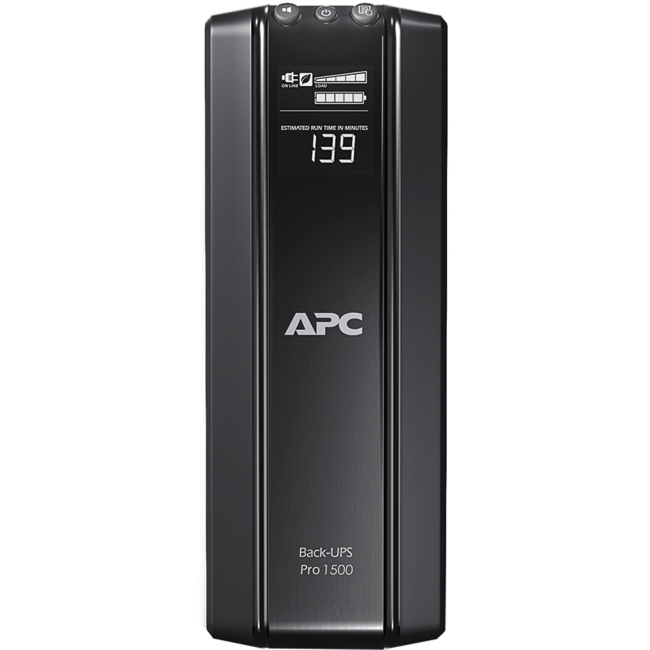

Image may not reflect the actual item.
Price: $489.99
Quantity:
In Stock: 60
Last Updated: May 14, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BR1500GI |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Back-UPS |
| Product Series | RS |
| Product Model | BR1500GI |
| Product Name | Back-UPS RS BR1500GI 1500VA Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Number of Battery & Surge Outlets | 12 |
| Dataline Protection | RJ-45 |
| Dataline Protection | RJ-11 |
| Power Description | |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 865 W |
| Output Voltage | 230 V AC |
| Waveform Type | Stepped Sine Wave |
| Interfaces/Ports | |
| Serial Port | Yes |
| Battery Information | |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 8 Hour |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 11.9" |
| Width | 4.4" |
| Depth | 15" |
| Form Factor | Tower |
| Weight (Approximate) | 28 lb |
| Miscellaneous | |
| Package Contents | |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
Specifications
- Mfr Part Number: BR1500GI
- Output:
- Output Power Capacity: 865Watts / 1.5 kVA
- Max Configurable Power (Watts): 865Watts / 1.5 kVA
- Nominal Output Voltage: 230V
- Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz
- Load Crest Factor: 3:1
- Topology: Line Interactive
- Waveform Type: Stepped approximation to a sinewave
- Output Connections:
- 5x IEC 320 C13 (Battery Backup)
- 2x IEC Jumpers (Battery Backup)
- 5x IEC 320 C13 (selector_surgetitle)
- Transfer Time: 10ms typical - 12ms maximum
- Input:
- Nominal Input Voltage: 230V
- Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
- Input Connections: IEC-320 C14
- Input voltage range for main operations: 176 - 294V
- Input voltage adjustable range for mains operation: 156 - 300V
- Number of Power Cords: 1
- Batteries & Runtime:
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
- Typical recharge time: 8 hour(s)
- Expected Battery Life (years): 3 - 5
- RBC Quantity: 1
- Communications & Management:
- Interface Port(s): Optional Simple Signalling RS232 cable , USB
- Control panel: Multi-function LCD status and control console
- Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Surge Protection and Filtering:
- Surge energy rating: 441 Joules
- Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)
- Filtering: Full time multi-pole noise filtering :10% of IEEE surge let-thgouh : zero clamping response time: instantaneous
- Approvals: A-tick, C-tick, CE, ENERGY STAR V1.0 (EU), GOST, GS Mark, Telepermit, TUV
- Color: Black
- Dimensions (WxDxH): 112.0 x 380.0 x 301.0 mm
- Weight: 12.7 kg
- RoHS Compliant
