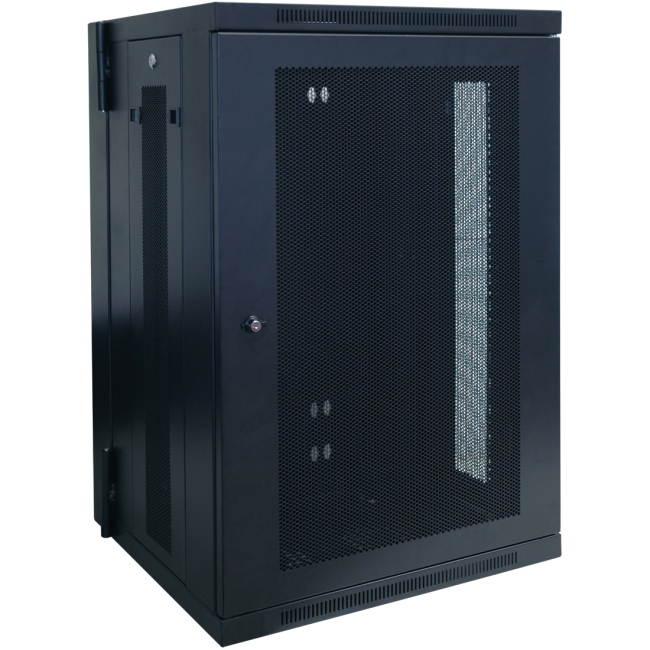

Tripp Lite SRW18US Wall mount Rack Enclosure Server Cabinet

The SRW18US SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW18US comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	SRW18US
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Line	SmartRack
Product Model	SRW18US
Product Name	SRW18US Wall mount Rack Enclosure Server Cabinet
Product Type	Rack Cabinet
Technical Information
Rack Type	Enclosed Cabinet
Physical Characteristics
Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Maximum Weight Capacity	250 lb
Static/Stationary Weight Capacity	250 lb
Height	35.6"
Width	23.6"
Depth	21.6"
Weight (Approximate)	98 lb
Rack Height	18U
Rack Width	19"
Miscellaneous
Additional Information	Adjustable mounting depths from 3" to 20.5" inches Heavy duty construction to handle added leverage Ventilated front door and side panels for increased airflow Hinged cabinet swings away from wall bracket for easy equipment and cable access Top and bottom panel cable access openings Fully assembled for quick installation
Certifications & Standards	UL/CSA 60950-1 EIA-310-D IEC 60297-3-100 IP20 Protection Rating
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	5 Year

General Information
Product	-
Type	-
Outside Width	-
Outside Height	-
Outside Depth	-
Panel Height	-
Panel Width	-

Download DataSheet
