SYBA SD-PEX30009 Low Profile PCIe 1394b/1394a (2B1A) Card, TI Chipset, Extra Regular Bracket
Mfg Part Number: SD-PEX30009 , Item #: 1131687
Image may not reflect the actual item.
Price: $36.76
+ Free Shipping
Quantity:
In Stock: 1
Last Updated: Dec 04, 2025
No Sales Tax except these states
, PO and Wire.
Add FireWire ports to your system for added functionality for Audio/Video programs with Syba SD-PEX30009 2 Port Fire wire 1394b 1 Port 1394a PCI-e 1.0 x1 Controller Card with Full and Low Profile Bracket Texas Instruments Chipset.
Main Specification
| General Information | |
| Manufacturer | SYBA Multimedia, Inc |
| Manufacturer Part Number | SD-PEX30009 |
| Manufacturer Website Address | http://www.syba.com |
| Brand Name | SYBA Multimedia |
| Product Name | 2 Port 1394B Firewire and1 Port 1394A PCI-e 1.0 x1 Card |
| Product Type | FireWire Adapter |
| Technical Information | |
| Host Interface | PCI Express x1 |
| Media & Performance | |
| Data Transfer Rate | 800 MB/s |
| Data Transfer Rate | 400 MB/s |
| Interfaces/Ports | |
| Total Number of FireWire/i.LINK Ports | 3 |
| Number of FireWire/i.LINK 400 Ports | 1 |
| Number of FireWire/i.LINK 800 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 5.6" |
| Width | 6.9" |
| Thickness | 1.5" |
| Weight (Approximate) | 4.80 oz |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Platform Supported | Mac |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
1-Lane (x1) PCI-Express with transfer rate 2.5Gbps Full Duplex channel

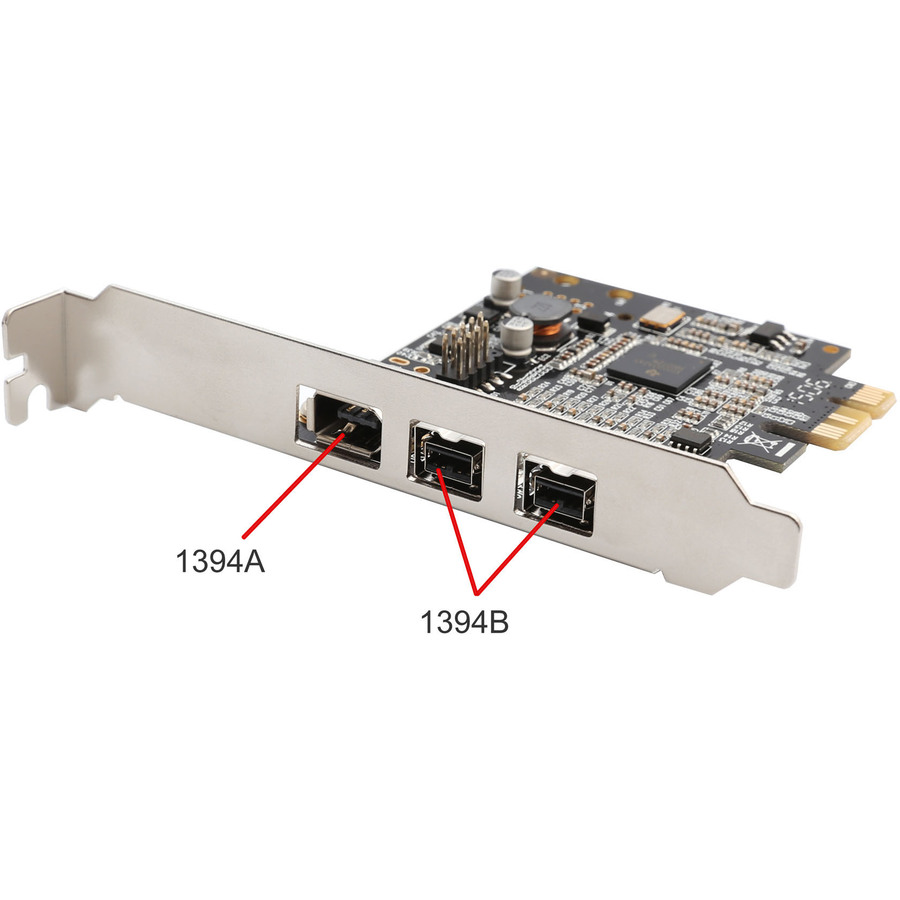

2x 1394B firewire ports + 1x 1394A firewire port + 1x 1394A firewire internal header
Compliant with PCI-Express Revision 1.0a
Support provisions of IEEE Standard P1394b-2002
Compliant with 1394 Open Host Controller Interface (OHCI) specification Revision 1.1 and 1.2 draft
Support 800 / 400 / 200 / 100Mbps transfer rate
Fully Plug & Play and Hot Plug supported
Fully backward compatible to 1394a specification
Compliant with IEEE 1394a-2000 and 1394-1995 standard for a High-Performance Serial Bus
Fully interoperable with Firewire", iLink" and SB1394" implementation of IEEE 1394 standard
Equipped with Bilingual IEEE Standard 1394b-2002 ports for 800Mbps data transferring
Software driver supports for windows 98SE/ME/2000/Server 2003/XP-32ibt/Xp-64bit, Vista 32-bit/Vista-64bit, Mac OS
2x 1394B firewire ports + 1x 1394A firewire port + 1x 1394A firewire internal header
Compliant with PCI-Express Revision 1.0a
Support provisions of IEEE Standard P1394b-2002
Compliant with 1394 Open Host Controller Interface (OHCI) specification Revision 1.1 and 1.2 draft
Support 800 / 400 / 200 / 100Mbps transfer rate
Fully Plug & Play and Hot Plug supported
Fully backward compatible to 1394a specification
Compliant with IEEE 1394a-2000 and 1394-1995 standard for a High-Performance Serial Bus
Fully interoperable with Firewire", iLink" and SB1394" implementation of IEEE 1394 standard
Equipped with Bilingual IEEE Standard 1394b-2002 ports for 800Mbps data transferring
Software driver supports for windows 98SE/ME/2000/Server 2003/XP-32ibt/Xp-64bit, Vista 32-bit/Vista-64bit, Mac OS
