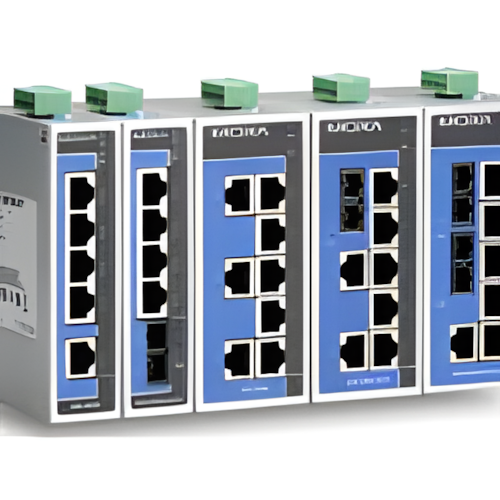

Moxa EDS-205A-S-SC-T Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector, -40 to 75C operating temperature
MOXA Major LinesMfg Part Number: EDS-205A-S-SC-T , Item #: 1116000
In Stock: 5
, PO and Wire.
Related Model(s):

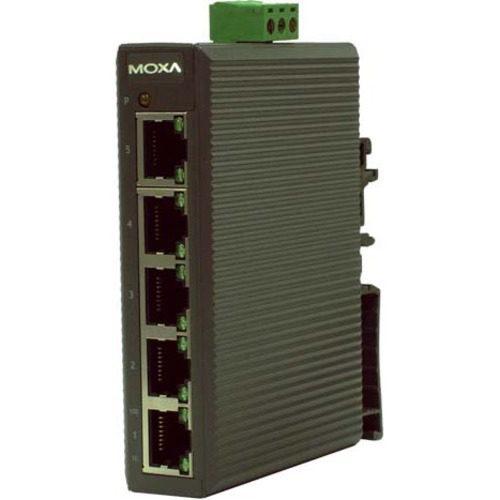

Unmanaged Ind Ethernet Switch, 5 x 10/100Base-TX, RJ45, Plastic Housing, -10~60°C

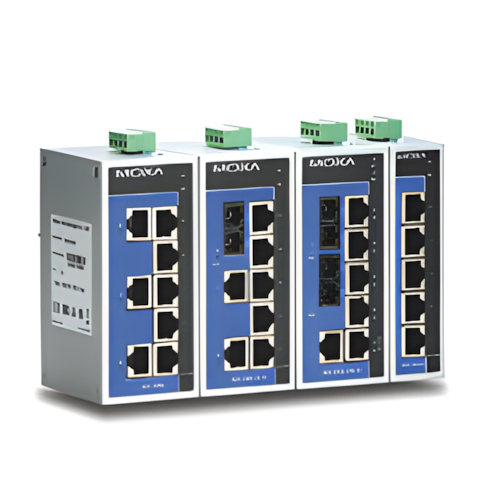

Unmanaged Ethernet switch with 5 10/100BaseT(X) ports (wide operating temperature:-40 to75C)
Certifications: ABSATEXDNVEN 50121-4EN 55032/EN 55024GLIECExLRLVD(EN 60950-1)NEMA TS2NKKRoHSUL508UL508 CID2
- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
- Redundant dual 12/24/48 VDC, 18 to 30 VAC power inputs
- IP30 aluminum housing
- Rugged hardware design well suited for hazardous locations (Class I Div. 2 /ATEX) and maritime environments (DNV/GL)
- -40 to 75°C operating temperature range (T models)
| Technology: | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control |
| Processing Type | Store and Forward |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Interface: | |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Fiber Port(s) | 100BaseFX ports (SC/ST connector, multi-mode, single-mode) |
| LED Indicators | Power, 10/100M (TP port), 100M (fiber port) |
| DIP Switches | Enable/Disable broadcast storm protection |
| Optical Fiber | |
 |
|
| Physical Characteristics: | |
| Housing | Aluminum, IP30 protection |
| Dimensions | EDS-205A: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in) EDS-208A: 50 x 115 x 70 mm (1.96 x 4.52 x 2.76 in) |
| Installation | DIN-Rail mounting, wall mounting (with optional kit) |
| Environmental Limits: | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Power Requirements: | |
| Input Voltage | 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC (47 to 63 Hz), redundant dual inputs |
| Input Current | EDS-205A: 0.1 A @ 24 V EDS-205A-M/S: 0.11 A @ 24 V EDS-208A: 0.13 A @ 24 V EDS-208A-M: 0.17 A @ 24 V EDS-208A-MM/SS: 0.22 A @ 24 V |
| Overload Current Protection | 1.1 A |
| Connection | 1 removable 4-contact terminal block |
| Reverse Polarity Protection | Present |
| Agency Approvals: | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), level 3 EN61000-4-3 (RS), level 3 EN61000-4-4 (EFT), level 3 EN61000-4-5 (Surge), level 3 EN61000-4-6 (CS), level 3 EN61000-4-8 EN61000-4-11 |
| Safety | UL508 (EDS-205A-M/-S Pending) |
| Hazardous Location | UL/cUL Class I, Division 2, Groups A, B, C and D (EDS-205A-M/-S, EDS-208A Series Pending); ATEX Zone 2, Ex nC IIC (Pending) |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| MTBF (meantime between failures) | Time: 425,000 hrs Database: Telcordia (Bellcore), GB |
| Maritime | EDS-205A series: DNV (Pending), GL (Pending), ABS (Pending), LR (Pending), NK (Pending) EDS-208A series: DNV, GL, ABS, LR, NK |
| Rail Traffic | EN50121-4 |
| Warranty: | |
| Warranty Period | 5 years |
| Product Category | |
| Product Category | Unmanaged Switch |
| Mechanical | |
| Dimensions: WxHxD (mm) | 30mm x 115mm x 70mm |
| Mounting | Din Rail |
| IP level | IP30 |
| Enclosure | Metal |
| Data Rate and Number of Ports | |
| Number of Ports | 5 |
| Fast Ethernet, 10/100 Mbps | 4 |
| Gigabit, 10/100/1000 Mbps | - |
| Interface | |
| Interface Type | 10/100 Mbps RJ45, 100 Mbps Single-mode SC |
| Fiber connector | 1 Single-mode SC |
| PoE | - |
| M12 Connector | - |
| SFP | - |
| Digital I/O/Relay | - |
| Console | - |
| Bypass | - |
| Modular Design | - |
| Available Modular | - |
| Power | |
| Power Input Type | Dual DC/ DC Terminal Block |
| Operating Supply Voltage | 12 to 48VDC |
| Power Consumption | - |
| Reliability | |
| Operating Temperature | -40C to 75C |
| Redundancy and Backup Options | |
| Redundancy Technology | Yes |
| STP/RSTP/PSTP/MSTP | - |
| Automatic Backup Configurator | Yes |
| Certification | |
| Certification | - |
| UL 508 (Industrial Control) | Yes |
| EN 50155 (Rail Industry) | - |
| EN 50121-4 (Rail Industry) | - |
| EN 50121-3-2 (Rail Industry) | - |
| NEMA TS2 (ITS) | - |
| IEC 61850-3 (Power Industry) | - |
| IEEE 1613 (Power Industry) | - |
| IEEE 1588PTP (Power Industry) | - |
| DNV.GL (Marine) | - |
| ABS.LR.NK (Marine) | - |
| C1D2 (Oil & Gas) | Yes |
| ATEX (Oil & Gas) | Yes |
| Network Management and Control | |
| Layer Level Switching | L2 |
| Modbus/TCP | - |
| Ethernet/IP | - |
| PROFINET | - |
| SNMP/RMON | - |
| LLDP | - |
| DHCP | - |
| IGMP Snooping/GMRP | - |
| QoS | - |
| VLAN 802.1Q | - |
| IEEE 802.1X | - |
| LACP (802.3ad) | - |
| Port Lock | - |
| IPv6 | - |
Specification
| Interface | |
| DIP Switches | Enable/Disable broadcast storm protection |
| Fiber Ports | 100BaseFX ports (SC/ST connector, multi-mode, single-mode) |
| LED Indicators | Power, 10/100M (TP port), 100M (fiber port) |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| Power Requirements | |
| Overload Current Protection | 1.1 A |
| Reverse Polarity Protection | Present |
| Input Voltage | 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC (47 to 63 Hz), redundant dual inputs |
| Input Current | EDS-205A: 0.1 A @ 24 V EDS-205A-M/S: 0.11 A @ 24 V EDS-208A: 0.13 A @ 24 V EDS-208A-M: 0.17 A @ 24 V EDS-208A-MM/SS: 0.22 A @ 24 V |
| Connection | 1 removable 4-contact terminal block |
| Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Processing Type | Store and Forward |
| Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| MTBF (mean time between failures) | |
| Time | 425,000 hrs |
| Database | Telcordia (Bellcore), GB |
| Physical Characteristics | |
| Weight | EDS-205A: 175 g EDS-208A: 275 g |
| Dimensions | EDS-205A: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in) EDS-208A: 50 x 115 x 70 mm (1.96 x 4.52 x 2.76 in) |
| Installation | DIN-Rail mounting, wall mounting (with optional kit) |
| Housing | Aluminum, IP30 protection |
| Switch Properties | |
| MAC Table Size | 1 K |
| Packet Buffer Size | 512 Kbit |
| Standards and Certifications | |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| Safety | UL 508, UL 60950-1 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC |
| Rail Traffic | EN 50121-4 |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| EMS | EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11 |
| Freefall | IEC 60068-2-32 |
| Traffic Control | NEMA TS2 |
| Wheeled Vehicles | e-Mark (E1) (EDS-208A only) |
| Marine | DNV, GL, LR, ABS, NK |
| Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
