I-Star USA iStarUSA TC-500PD8 ATX12V & EPS12V Power Supply
Mfg Part Number: TC-500PD8 , Item #: 1050249

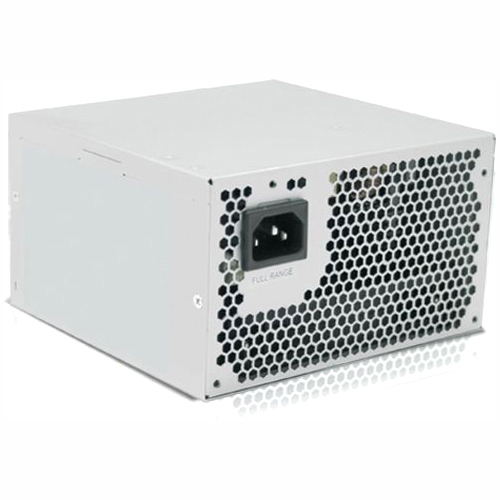

Image may not reflect the actual item.
Price: $120.40
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 06, 2025
No Sales Tax except these states
, PO and Wire.
The TC-500PD8 ATX12V & EPS12V Power Supply supports latest motherboard connectors of 20, 24, 8, and 4 pins. Large 120mm ball bearing cooling fan reduces operation noise while keep the optimal airflow. 80 Plus high efficiency saves you on electric bills and less cooling requirement. Dual 12V rails increase overall system stability. TC-500PD8 is the ideal power supply for server and high-end gaming workstation.
Main Specification
| General Information | |
| Manufacturer | iStarUSA, Inc |
| Manufacturer Part Number | TC500PD8 |
| Manufacturer Website Address | http://www.istarusa.com |
| Brand Name | iStarUSA |
| Product Model | TC-500PD8 |
| Product Name | TC-500PD8 ATX12V & EPS12V Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Protection Type | Short Circuit |
| Protection Type | Over Current |
| Protection Type | Over Voltage |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Input Voltage | 220 V AC |
| Input Voltage | 110 V AC |
| Input Voltage Range | 100 V AC - 240 V AC |
| Output Voltage | -12 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage | 5 V DC |
| Output Voltage Detail | 5 V DC @ 24 A |
| Output Voltage Detail | 3.3 V DC @ 24 A |
| Output Voltage Detail | 5 V DC @ 2.5 A |
| Output Voltage Detail | 12 V DC @ 18 A |
| Output Voltage Detail | -12 V DC @ 500 mA |
| Output Current | 2.50 A |
| Output Current | 18 A |
| Output Current | 500 mA |
| Output Current | 24 A |
| Output Power | 500 W |
| Interfaces/Ports | |
| Receptacles | 5 x 15-pin Serial ATA |
| Receptacles | 1 x 20+4pin ATX Motherboard |
| Receptacles | 1 x 6-pin PCI-E |
| Receptacles | 3 x 4-pin LP4 Peripheral Device |
| Receptacles | 1 x 4-pin SP4 Floppy Drive |
| Receptacles | 1 x 8-pin EPS12V Motherboard |
| Physical Characteristics | |
| Height | 3.4" |
| Width | 5.9" |
| Depth | 5.5" |
| Miscellaneous | |
| Additional Information | 2 x +12V Rails |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Standard |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
