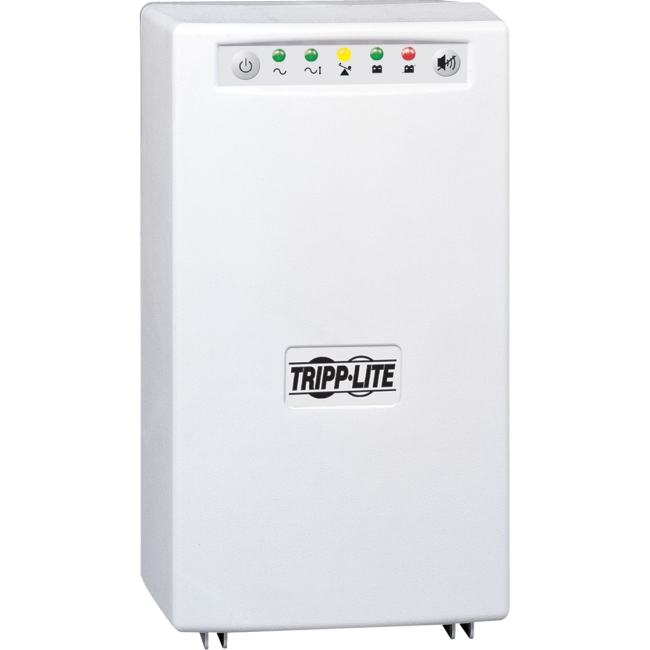

Tripp Lite SmartPro SMX1200XLHG 1000 VA Tower UPS

Tripp Lite's SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load, or 11 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps. This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15 cm (6 in.) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules. The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.
Application Usage

This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty

Provides Ideal UPS Backup in Healthcare Facilities

• Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet
• Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise

Battery Backup and Full Surge Protection

• 27.5 minutes runtime for half load (375W); 11 minutes for full load (750W)
• All six hospital-grade outlets provide surge protection rated to 340 joules
• EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
• Resistant to electrostatic discharge

LEDs and Audible Alarms Keep You Aware of Power Status

• Indicator lights on the front of the unit show you when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning
• Audible alarms alert you to power failure, overload and low battery conditions; the alarm's mute/quiet mode ensures patients are not disturbed

Saves Your Files, Even When You're Away

• Works with Tripp Lite PowerAlert software (included) to enable safe, unattended system shutdown and files saves during prolonged power failures
• Connects to your computer via either the DB9 port or USB port

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	SMX1200XLHG
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Line	SmartPro
Product Model	SMX1200XLHG
Product Name	SmartPro SMX1200XLHG 1000 VA Tower UPS
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	IEC 60320 C14
Receptacle Type	IEC 60320 C13
Receptacle Detail	6 x IEC 60320 C13
Power Description
Load Capacity (VA)	1000 VA
Load Capacity (Watt)	750 W
Input Voltage	220 V AC
Input Current	5 A
Output Voltage	230 V AC
Interfaces/Ports
Serial Port	Yes
USB	Yes
Battery Information
Backup/Run Time (Full Load)	11 Minute
Backup/Run Time (Half Load)	27.50 Minute
Typical Battery Recharge Time	4.50 Hour
Hot Swappable	Yes
Physical Characteristics
Height	12.7"
Width	7.5"
Depth	9.1"
Form Factor	Tower
Weight (Approximate)	45.50 lb
Miscellaneous
Package Contents	SmartPro SMX1200XLHG 1000 VA Tower UPS PowerAlert Software CD 1 x DB-9 Serial Cable 1 x USB Cable Instruction Manual with Warranty Information
Certifications & Standards	CE IEC 60601-1 (Medical) Class B (Emissions)
Software Included	PowerAlert Software
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year

General Information
Power Rating	-
Output Voltage Rating	-
Number of Outputs	-
Runtime-Full Load	-
Runtime-Half Load	-

Tripp Lite's SMX1200XLHG offers medical-grade UPS protection with built-in line-interactive voltage regulation, expandable battery runtime and intelligent monitoring with unattended shutdown capability. Tested to CE/IEC 60601-1 standard as medical electrical equipment. Built-in isolation transformer with Faraday shield offers full line isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Resistant to electrostatic discharge. 1000VA power handling capacity supports computers, inter-networking equipment and other critical loads during commercial power failures. External battery connector allows configuration for up to several hours of runtime during power failures by adding one or more external battery packs. Line interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V back to normal 230V levels, saving battery reserves for use only during complete power failures.

Device Type	UPS - external
Battery Enclosure Type	Internal
Width	7.5 in
Depth	9.1 in
Height	12.7 in
Enclosure Color	Attractive gray
Power Device
UPS Technology	Line interactive
Input Voltage	AC 230 V
Input Voltage Range	AC 155 - 274 V
Frequency Required	50/60 Hz
Input Connector(s)	1 x power IEC 320 EN 60320 C14
Output Voltage	AC 230 V + 8% / - 18% ( 50/60 Hz )
Output connector(s)	6 x power IEC 320 EN 60320 C13
Power Provided	750 Watt / 1000 VA
Surge Suppression	Standard
Surge Energy Rating	340 Joules
Battery
Voltage Provided	36 V
Run Time (Up To)	11 min at full load
Recharge Time	4.5 hour(s)
Networking
Remote Management Interface	RS-232, USB
Expansion / Connectivity
Interfaces	1 x management - USB - 4 pin USB Type B 1 x management - 9 pin D-Sub (DB-9)
Miscellaneous
Cables Included	1 x power cable - 6 in 1 x USB cable 1 x serial cable
Features	Audible alarm, voltage monitoring, noise filtering, overload protection
Compliant Standards	CE, IEC 60601-1-1
Software / System Requirements
Software Included	TrippLite PowerAlert
Manufacturer Warranty
Service & Support	2 years warranty
Service & Support Details	Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	0 - 95%
