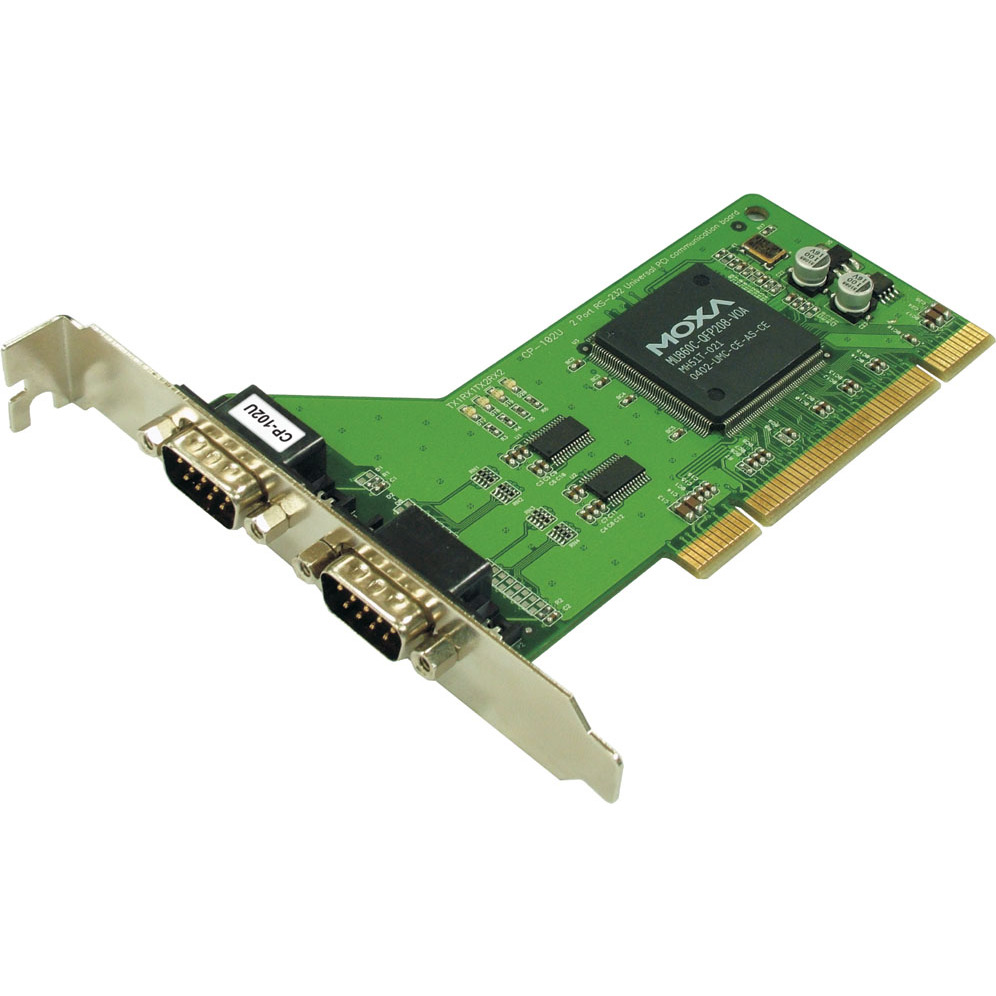

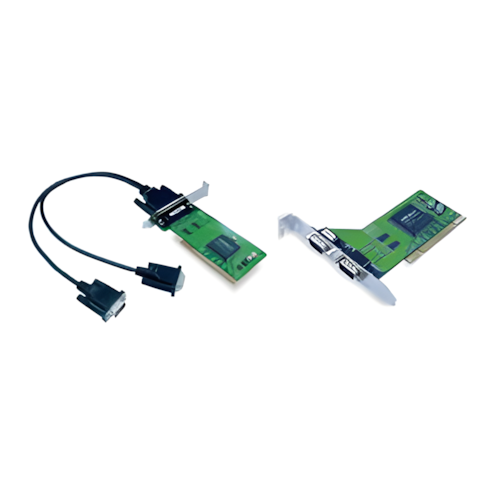

Moxa CP-132UL-T 2 Port UPCI Board, RS-422/485, Low Profile, Wide Temperature
MOXA Major LinesMfg Part Number: CP-132UL-T , Item #: 1039490
In Stock: 4
, PO and Wire.
Related Model(s):
2 Port UPCI Board, RS-232/422/485, w/Isolation, Low Profile, Wide Temperature
2 Port UPCI Board, RS-422/485, w/ Isolation, Low Profile, Wide Temperature
- Over 800 Kbps data throughput, for top performance
- 2-port RS-422/485 interface with ADDC and up to 921.6 Kbps
- 2-wire/4-wire RS-485 communication up to 1.2 km
- Built-in 15 KV ESD and optional 2 KV optical isolation protection
- 128-byte FIFO and on-chip H/W, S/W flow control
- Universal PCI compatible with 3.3/5V PCI and PCI-X
- Windows 2003/XP/2000/98/ME, Linux, Unix driver support
- MD1 Low profile board for compact-sized PCs
| Hardware | |
| Comm. Controller | MU860 (16C550C comaptible) |
| Connectors | DB25 Female |
| Interface | |
| Bus | 32-bit Universal PCI |
| Number of Ports | 2 (only one IRQ required) |
| Max No. of Boards | 4 |
| RS-422 | TxD+(B), TxD-(A), RxD+(B), RxD-(A), RTS+(B),RTS-(A), CTS+(B), CTS-(A), GND |
| 4-wire RS-485 | TxD+(B), TxD-(A), RxD+(B), RxD-(A),GND |
| 2-wire RS-485 | Data+(B), Data-(A), GND |
| Performance | |
| Baud Rate | 50 bps to 921.6 Kbps |
| Configuration | |
| I/O Address/IRQ | BIOS assigned |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Operating Systems | |
| OS Supported | Windows Vista (X86 & X64), Windows NT/2000/XP/2003, Windows 95/98/ME, Linux 2.4/2.6 (Red Hat/SuSe...), FreeBSD 4.x, Windows XP Embedded, DOS |
| Surge Protection | Embedded 15 KV ESD Surge Protection |
| Optical Isolation | 2 KV (CP-132UL-I) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Operating Humidity | 5 to 95% RH |
| Dimensions (W x D) | 120 x 64.5 mm (4.72 x 2.53 in) (CP-132UL) 120 x 64.5 mm (4.72 x 2.53 in) (CP-132UL-I) (LP Bracket: 80 mm) (Std. Bracket: 121 mm) |
| Regulatory Approvals | EN55022 Class B, EN55024, EN6100-3-2, EN61000-3-3,FCC Part 15 Class B |
| Warranty | 5 years |
| Power Consumption | |
| CP-132UL | 120 mA (+5V) |
| CP-132UL-I | 490 mA (+5V) |
Specification
| Power Requirements | |
| Power Consumption | CP-132UL: 120 mA @ +5 V CP-132UL-I: 490 mA @ +5 V |
| Serial Communication Parameters | |
| Flow Control | XON/XOFF |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| IRQ | Assigned by BIOS |
| I/O Address | Assigned by BIOS |
| Hardware | |
| Connector | DB25 female |
| Bus | 32-bit Universal PCI |
| Comm. Controller | MU860 (16C550C compatible) |
| Performance | |
| Baudrate | 50 bps to 921.6 Kbps |
| Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| MTBF (mean time between failures) | |
| Time | 1,647,832 hrs |
| Database | Telcordia (Bellcore), GB |
| Physical Characteristics | |
| Dimensions | CP-132UL: 64.4 x 120 mm (2.53 x 4.72 in) CP-132UL-I: 64.4 x 120 mm (2.53 x 4.72 in) |
| Serial Interface | |
| Serial Standards | RS-422/485 |
| Number of Ports | 2 |
| Max. No. of Boards per PC | 4 |
| Serial Line Protection | |
| ESD Protection | 15 KV on the board |
| Optical Isolation | 2 KV (CP-132UL-I only) |
| Serial Signals | |
| RS-485-4w | TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-2w | Data+(B), Data-(A), GND |
| RS-422 | TxD+(B), TxD-(A), RxD+(B), RxD-(A), RTS+(B), RTS-(A), CTS+(B), CTS-(A), GND |
| Standards and Certifications | |
| EMI | EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B |
| EMS | EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS) |
| EMC | CE, FCC |
| Green Product | RoHS, CRoHS, WEEE |
| Driver Support | |
| Operating Systems | Windows 9X/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Windows CE 5.0/6.0, Windows XP Embedded, DOS, Linux 2.4, Linux 2.6 x86/x64, FreeBSD 4/5, QNX 6, SCO Open Server 5/6, UnixWare 7, Solaris 10 x86/x64 |
| Note | Please refer to Moxa's website for the latest driver support information. |
| Warranty | |
| Warranty Period | 5 years |
| Details | See http://www.moxa.com/support/warranty.htm |
