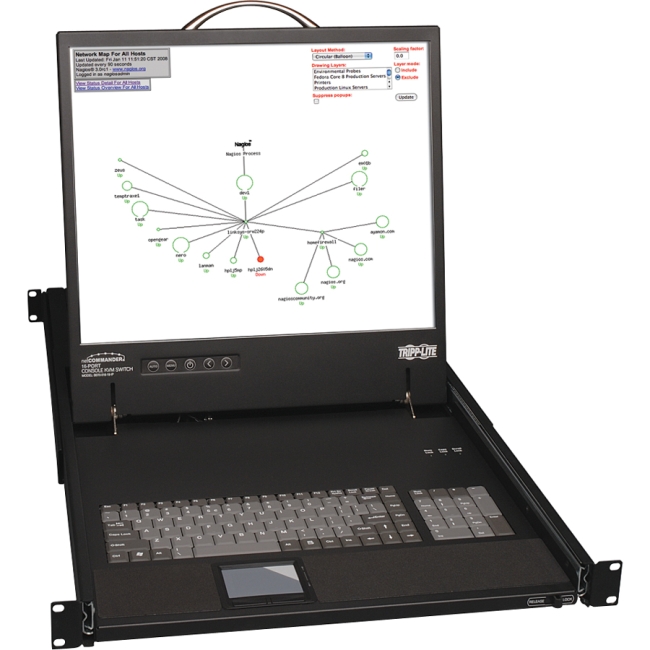

Tripp Lite NetCommander B070-016-19-IP 19" Rackmount LCD with KVM Switch - Steel Housing

Tripp Lite's B070-016-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.The B070-016-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 ft. away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 16 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19" LCD screen supports video resolutions up to 1366 x 768.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-016-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-016-19-IP, or via searching NetCommander-AXS on www.tripplite.com

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	B070-016-19-IP
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Line	NetCommander
Product Model	B070-016-19-IP
Product Name	16-Port, 1+1 User NetCommander Cat5 IP Console KVM Switch
Product Type	LCD Rack Console
Technical Information
KVM Switch	Yes
KVM Technology	Digital
Number of Computers Supported	16
Daisy Chain	Yes
Device Type	LCD Rack Console
Display & Graphics
Screen Size	19"
Screen Mode	WXGA
Screen Resolution	1366 x 768
Input Devices
Keyboard	Yes
Pointing Device Type	TouchPad
Interfaces/Ports
Network (RJ-45)	Yes
PS/2 Port	Yes
Number of Network (RJ-45) Ports	1
Number of PS/2 Ports	2
Power Description
Input Voltage	240 V AC
Physical Characteristics
Color Family	Black
Product Color	Black
Product Material	Steel
Rack Height	1U
Height	1.7"
Width	19"
Depth	26.8"
Weight (Approximate)	37.50 lb
Miscellaneous
Package Contents	NetCommander B070-016-19-IP 19" Rackmount LCD with KVM Switch Power Cord Serial Firmware Upgrade Cable KVM/Console Jumper Cable CD (Includes: Owner's Manual)
Certifications & Standards	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	1 Year

General Information
Product	-
Type	-
Number of Channels / Ports	-
Maximum Data Rate	-
Operating Supply Voltage	-
Maximum Operating Temperature	-

Tripp Lite's B070-016-19-IP, NetCommander Rackmount Console IP KVM switch is a cost effective and highly flexible system for controlling up to 256 computers from either a single 19" display console, or from a remote location. This console can be cascaded with Tripp Lites stand-alone NetCommander KVM switches. Switching between attached servers can be accomplished with on screen display menu, or hot-key. Utilizing Tripp Lites server interface units, KVM cabling is kept to a minimum and extremely manageable, with the use of Cat5/Cat6 patch cables. Servers can be located up to 100 feet away from the switch.

Display Type	KVM console / TFT active matrix
Height (Rack Units)	1U
Built-in Devices	16 port KVM switch
Width	19 in
Depth	26.8 in
Height	1.7 in
Enclosure Color	Black
Display
Diagonal Size	19"
Max Resolution	1600 x 1200 / 85 Hz
Max Sync Rate (V x H)	86 Hz
Input Device
Type	Mouse, keyboard, touchpad
KVM
Type	KVM switch - 16 ports
KVM Features	IP-based user connection
Max Cascading Depth	2
Expansion / Connectivity
Interfaces	16 x keyboard / mouse / video - RJ-45 1 x network - RJ-45 2 x VGA - 15 pin HD D-Sub (HD-15) 2 x mouse - 6 pin mini-DIN (PS/2 style) 2 x keyboard - 6 pin mini-DIN (PS/2 style)
Miscellaneous
Cables Included	1 x serial cable 1 x keyboard / mouse / video cable
Rack Mounting Kit	Included
Features	Hot keys, hot-swappable
Compliant Standards	CE, RoHS, 128 bit SSL
Power
Voltage Required	AC 120/230 V ( 50/60 Hz )
Software / System Requirements
OS Required	Microsoft DOS, UNIX, Apple MacOS, Microsoft Windows 98 Second Edition, Linux, FreeBSD, Microsoft Windows NT, Microsoft Windows Server 2003, Microsoft Windows 95/98/ME/2000/XP/Vista
Manufacturer Warranty
Service & Support	1 year warranty
Service & Support Details	Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	0 - 80%
