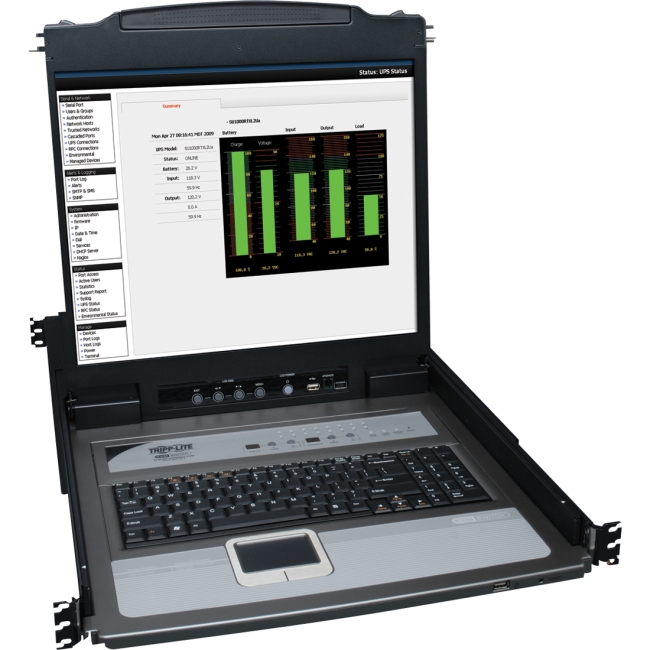

B020-U16-19-K Tripp Lite NetDirector Console RM LCD KVM Switch with 8 Cables - Steel Housing

Tripp Lite's B020-U16-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 16 computers/servers. Increase the number of connected computers to up to 264 by daisy-chaining up to 31 B022-U08 KVM switchesThe B020-U16-19-K has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 16 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U16-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	B020U1619K
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	NetDirector
Product Model	B020-U16-19-K
Product Name	NetDirector B020-U16-19-K Rackmount LCD with KVM
Product Type	LCD Rack Console
Technical Information
KVM Switch	Yes
Number of Computers Supported	16
Device Type	LCD Rack Console
Display & Graphics
Screen Size	19"
Screen Mode	SXGA
Screen Resolution	1280 x 1024
Input Devices
Pointing Device Type	TouchPad
Interfaces/Ports
USB	Yes
Number of USB Ports	2
Physical Characteristics
Height	1.8"
Width	17"
Depth	27"
Weight (Approximate)	31.30 lb
Miscellaneous
Package Contents	NetDirector Console RM LCD KVM Switch 8 x P778-006 6 ft. USB/PS2 Combo KVM Cable Kits PS2/USB Combo Console Cable Kit RJ11 to DB9 Firmware Upgrade Cable C13 to 5-15P Power Cord CD with Owner Manual Quick Start Guide Grounding Wire Rackmount Hardware Kit
Certifications & Standards	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	1 Year

General Information
Product	-
Type	-
Number of Channels / Ports	-
Maximum Data Rate	-
Operating Supply Voltage	-
Maximum Operating Temperature	-

Tripp Lite's 16-port Console KVM Switch w/19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines a 16 port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 512 computers from this single console by daisy-chaining additional B022-U16 16 port KVM switches. Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Includes eight, six foot Combo cable kits, which allow connection to either PS/2 or USB only servers... no adapters needed. Also features an extra HD15 and (2) PS/2 ports on the rear of the unit, which allows for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and one for attachment of USB peripherals, such as a flash drive, external hard drive, etc.

Display Type	KVM console / TFT active matrix
Height (Rack Units)	1U
Built-in Devices	16 port KVM switch
Width	17 in
Depth	27 in
Height	1.7 in
Enclosure Color	Black
Display
Diagonal Size	19"
Max Resolution	1280 x 1024 / 75 Hz
Controls / Adjustments	Brightness, contrast, H/V position, color temperature, phase, clock
Signal Input	VGA
Image Color Temperature	9300K, adjustable, 6500K, 7500K
Input Device
Type	Keyboard, touchpad
KVM
Type	KVM switch - 16 ports
Max Resolution	1280 x 1024 @ 75 Hz
Max Cascading Depth	512
Expansion / Connectivity
Interfaces	16 x keyboard / mouse / video - 18 pin SPHD 2 x USB - 4 pin USB Type A 1 x network - RJ-11 ( management ) 2 x stacking - 25 pin D-Sub (DB-25)
Miscellaneous
Cables Included	8 x keyboard / mouse / video / USB cable - 6 ft
Rack Mounting Kit	Included
Features	Administrator password
Compliant Standards	CE, FCC, RoHS, cULus
Power
Form Factor	Internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Software / System Requirements
OS Required	SunSoft Solaris, Apple MacOS, Linux, Microsoft Windows Vista / 2000 / XP
Manufacturer Warranty
Service & Support	1 year warranty
Service & Support Details	Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	122 °F
Humidity Range Operating	0 - 80%
