I-Star USA

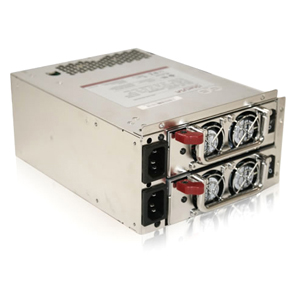

I-Star USA iStarUSA IS-400R8P Mini Redundant Power Supply
Mfg Part Number: IS-400R8P , Item #: 1000972
Image may not reflect the actual item.
Price: $483.20
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 21, 2025
No Sales Tax except these states
, PO and Wire.
iS-400R8P offers your server and workstation zero down time with full 400W power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. A good start for your mission critical system integrations.
Main Specification
| General Information | |
| Manufacturer | iStarUSA, Inc |
| Manufacturer Part Number | IS400R8P |
| Manufacturer Website Address | http://www.istarusa.com |
| Brand Name | iStarUSA |
| Product Model | IS-400R8P |
| Product Name | IS-400R8P Mini Redundant Power Supply |
| Product Type | Redundant Power Supply |
| Technical Information | |
| Efficiency | 74% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Protection Type | Over Voltage |
| Protection Type | Over Power |
| Protection Type | Short Circuit |
| Protection Type | Over Current |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Input Voltage | 220 V AC |
| Input Voltage | 110 V AC |
| Input Voltage Range | 90 V AC - 132 V AC |
| Input Voltage Range | 180 V AC - 264 V AC |
| Output Voltage | 12 V DC |
| Output Voltage | -12 V DC |
| Output Voltage | 5 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage | -5 V DC |
| Output Voltage Detail | 5 V DC @ 2 A |
| Output Voltage Detail | 3.3 V DC @ 24 A |
| Output Voltage Detail | 5 V DC @ 24 A |
| Output Voltage Detail | 12 V DC @ 30 A |
| Output Voltage Detail | -5 V DC @ 500 mA |
| Output Voltage Detail | -12 V DC @ 1 A |
| Input Current | 8 A @ 110V |
| Input Current | 4 A @ 220V |
| Output Current | 2 A |
| Output Current | 500 mA |
| Output Current | 1 A |
| Output Current | 30 A |
| Output Current | 24 A |
| Output Power | 400 W |
| Interfaces/Ports | |
| Receptacles | 8 x Molex |
| Receptacles | 1 x 24-pin ATX Motherboard |
| Receptacles | 1 x 4-pin ATX12V Motherboard |
| Receptacles | 1 x 8-pin EPS12V Motherboard |
| Physical Characteristics | |
| Form Factor | Plug-in Module |
| Hot Swappable Power Supply | Yes |
| Height | 3.3" |
| Width | 5.9" |
| Depth | 7.8" |
| Miscellaneous | |
| Additional Information |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
