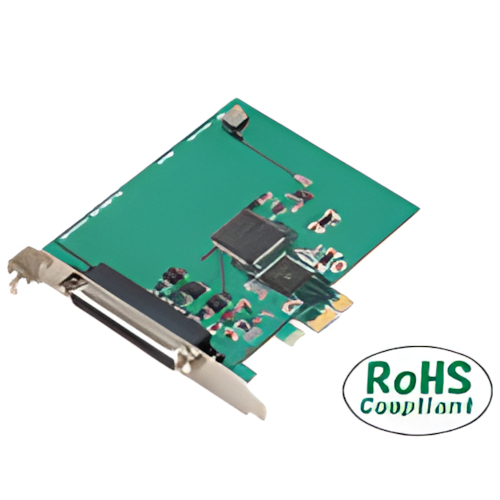

Contec Americas DIO-1616T-PE 16 CHANNEL Input/ 16 CHANNEL Output TTL-Level digital I/O board for PCI

This product is a PCI Express bus-compliant unisolated digital I/O board for input/output of digital signals (TTL level). Unisolated TTL level input 16ch and unisolated open collector output 16ch are provided, and all input signals can be used as interrupts. In addition, digital filter function to prevent wrong recognition of input signals is provided. With the driver libraries for Windows/Linux supplied as standard, applications with CONTEC hardware features fully utilized can be created. LabVIEW is supported with a plug-in of dedicated libraries.

Environment Compliancy: RoHS Directive

Function

• 16ch of unisolated TTL level input and 16ch of unisolated open-collector output with a response time of 200nsec. Output rating: max 30VDC, 40mA per pin.
• You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
• This product has a digital filter to prevent input signals from carrying noise or a chattering. This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software.
• Windows/Linux compatible driver libraries are attached: Bundled driver library API-PAC(W32) enables to create Window/Linux applications. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
• The functions are same with PCI compatible board PIO-16/16T(PCI)H. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.

Digital I/O

Bus	PCI Express
Function	I/O
Input	16
Output	16
Bidirection	-
Working voltage	Input: 5VDC-TTL; Output: 5VDC-TTL

If you need accessory information for this product, please use our Online Contact Us Form , our industrial sales team is here to help you find the accessories.

Download DataSheet
