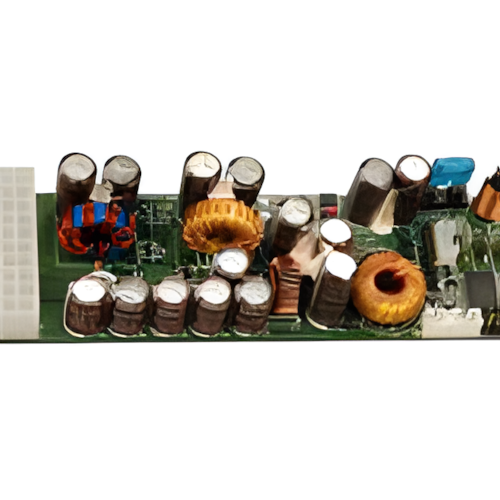

IEI Technology IDDV-6304140A-R10 140W DC/DC 6-30V DC input,Vehicle Converter Module
Mfg Part Number:
IDDV-6304140A-R10
, Item #: 723919
Image may not reflect the actual item.
Price: $137.20
Tariff surcharge may be applied based on changes in tariff policy.
No Sales Tax except these states
, PO and Wire.
Manufacturer Warranty Policy:
Features
- Wide Input Range: 6-30V DC
- Smart system on/off control
- 6 selectable power on/off timing modes
- Load Down Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Current Protection
- Battery Voltage Monitor
- Amplifier On-Delay control
- RoHS Compliant
- Compact Size
- IrDA Remote Control off (Options)
| Output | 5V@10A (Max.), 3.3@10A (Max.), 12V@4A (Max.), -12V@0.15A (Max.) & 5VSB@1.5A (Max.) |
| Max. Total Output | 140W |
| Input | 6VDC to 30VDC Min. Input Operating Voltage: 5.7V Max. Input Operating Voltage: 30V |
| Deep-Discharge Shut down Voltage | 10.6V |
| Startup Voltage | 8V |
| Efficiency | up to 90% |
| Dimensionss | 45mm x 160mm |
| Operating Temperature | -20°C ~ 85°C |
| Storage Temperature | -40°C ~ 125°C |
Specification
| Storage Temperature | -40ºC ~ 125ºC |
| Weight | NW: 118 g |
| Dimensions | 45 mm X 160 mm |
| Output | Output? max.: 5 V@10 A, 3.3 V@10 A, 12 V@4 A,-12 V@0.15 A & 5 VSB@1.5 A Output Voltage?140 W |
| Input | 6 VDC to 30 VDC Min. input operating voltage: 5.7 V Max. input operating voltage: 30 V Startup voltage :8 V |
| Deep-discharge shut down voltage: | 10.6 V |
| Operation Temperature | -20ºC ~ 85ºC |
| Efficiency | up to 90% |
