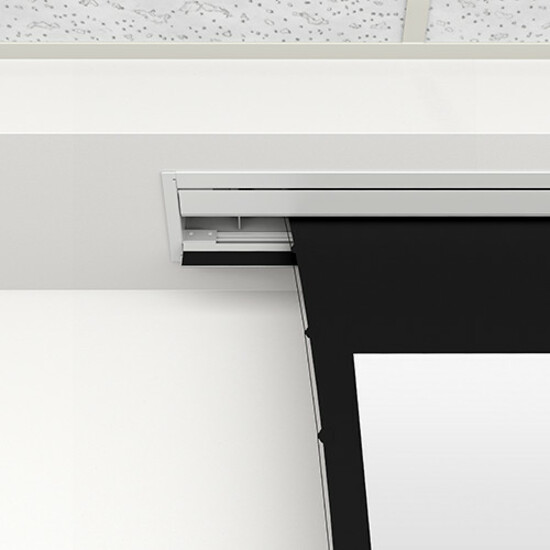

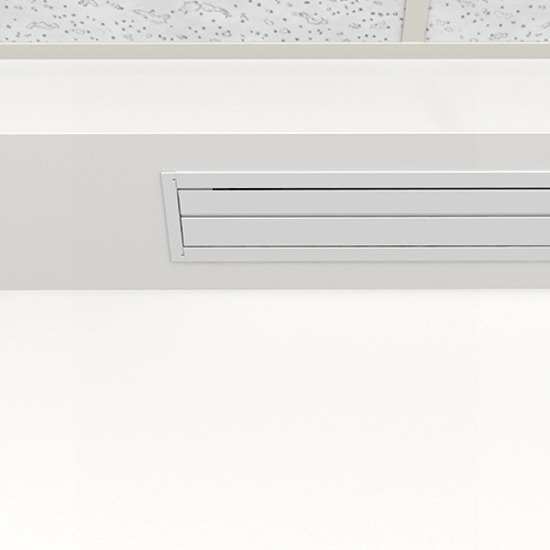

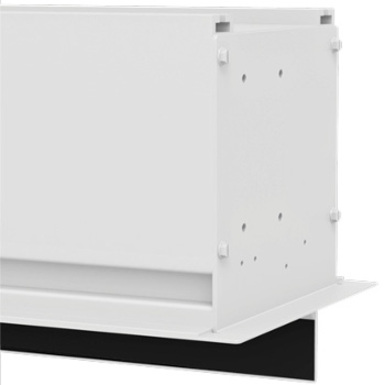

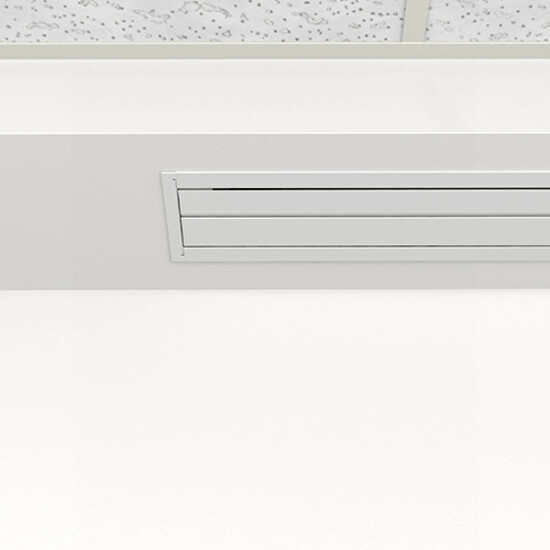

Designed to eliminate the extra step of finishing the screen with trim, the Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening eliminating the need to complete additional trim work. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling. Tensioned screens ensure the smoothest surface possible, and all Deluxe screens feature a closure door that hides the open space and screen in the ceiling, providing a cleaner aesthetic. The Tensioned Advantage® Deluxe Electrol® screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage.
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 20326B |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Da-Lite |
| Product Line | Tensioned Advantage Deluxe Electrol |
| Product Name | Tensioned Advantage Deluxe Electrol Projection Screen |
| Product Type | Projection Screen |
| Technical Information | |
| Diagonal Image Size | 106" |
| Screen Height | 52" |
| Screen Width | 92.1" |
| Screen Fabric | HD Progressive 1.1 Perf |
| Aspect Ratio | 16:9 |
| Screen Folding Mechanism | Electric |
| Physical Characteristics | |
| Mount Type | Ceiling Mount |
| Mount Type | Wall Mount |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD Gold |
| Warranty | |
| Limited Warranty | 5 Year |
