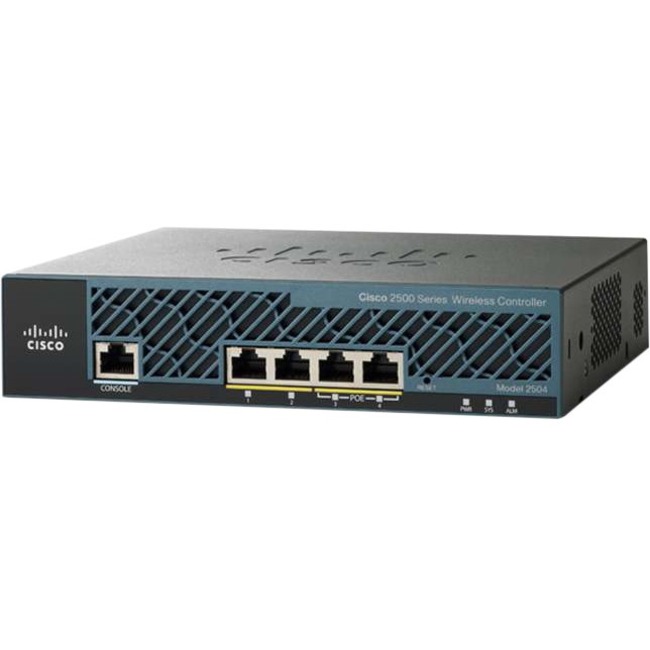

CISCO AIR-CT2504-6-K9 2504 WL CONTROLLER WITH 6 AP LICENSES

As a component of the Cisco Unified Wireless Network, this controller delivers centralized security policies, wireless intrusion prevention system (wIPS) capabilities, award-winning RF management, and quality of service (QoS) for voice and video. Delivering 802.11n performance and scalability, the Cisco 2500 Series provides low total cost of ownership and flexibility to scale as network requirements grow.

The Cisco 2504 Wireless Controller supports Cisco Application Visibility and Control (AVC), the technology that includes Cisco's Network-Based Application Recognition 2 (NBAR-2) engine. N-BAR-2 does deep packet inspection (DPI) to classify applications and tie into quality of service (QoS) to either drop or mark the traffic, thereby prioritizing business-critical applications in the network. Cisco AVC uses NetFlow Version 9 to export the flows to Cisco Prime™ Infrastructure or a third-party NetFlow Collector. The Cisco 2504 Wireless Controller also supports Bonjour Services Directory, which enables Bonjour (Apple) Services to be advertised and utilized in a separate Layer 3 network. Wireless Policy engine is a wireless profiler and policy feature on the Cisco 2500 Series Wireless Controller that enables profiling of wireless devices and enforcement of policies such as VLAN assignment, QoS, ACL, and time-of-day-based access.

General Information
Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	AIR-CT2504-6-K9
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Line	Aironet
Product Series	2500
Product Model	2504
Product Name	2504 Wireless Controller with 6 AP Licenses
Product Type	Wireless LAN Controller
Technical Information
ISM Band	No
UNII Band	No
Wireless Security	WPA WPA2 WEP AES IEEE 802.1X
Features	Quality of Service (QoS)
Interfaces/Ports
Ethernet Technology	Fast Ethernet
Ethernet Technology	Ethernet
Ethernet Technology	Gigabit Ethernet
Number of Network (RJ-45) Ports	4
Network (RJ-11)	No
PoE (RJ-45) Port	Yes
VGA	No
HDMI	No
Audio Line Out	No
Serial Port	Yes
Powerline	No
Management Port	Yes
Management & Protocols
Management	DHCP SNMP v1, v2c, v3 Web-Based Management Telnet MIB/MIB II Syslog Command-line Interface
Power Description
Input Voltage	110 V AC
Input Voltage	220 V AC
Physical Characteristics
Form Factor	Rack-mountable
Form Factor	Desktop
Height	1.7"
Width	8"
Depth	6.8"
Miscellaneous
Certifications & Standards	IEEE Standards: 802.3 802.3u 802.3ab 802.1x 802.1q Safety: UL 60950-1 EN 60950:2005 EMI and Susceptibility: FCC Part 15.107 and 15.109 ICES-003 VCCI EN 55022 EN 55024
Warranty
Limited Warranty	90 Day
