Ortronics C2G

Ortronics C2G C2G29893 ADPTR RING DPMDPUSB-C LGNTNG VGA AVIP

Mfg Part Number:  C2G29893
Image may not reflect the actual item.
Price: $289.28
Quantity:
More to Come
Last Updated: Jan 22, 2026
No Sales Tax except these states
, PO and Wire.

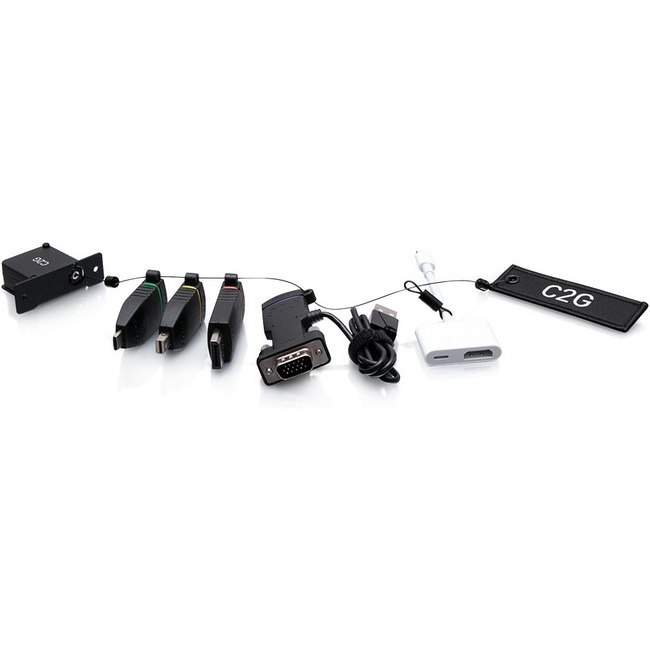

The Patented Retractable Universal Mount 4K HDMI Adapter Ring is the perfect addition to conference rooms, huddle spaces, lecture halls, or classrooms to make sure that anyone can connect. The standard configuration includes the adapters to connect nearly any device to the in-room display while supporting up to a 4K video resolution. Choose from HDMI to DisplayPort, Mini DisplayPort, USB-C, Lightning, or VGA to meet connectivity challenges.

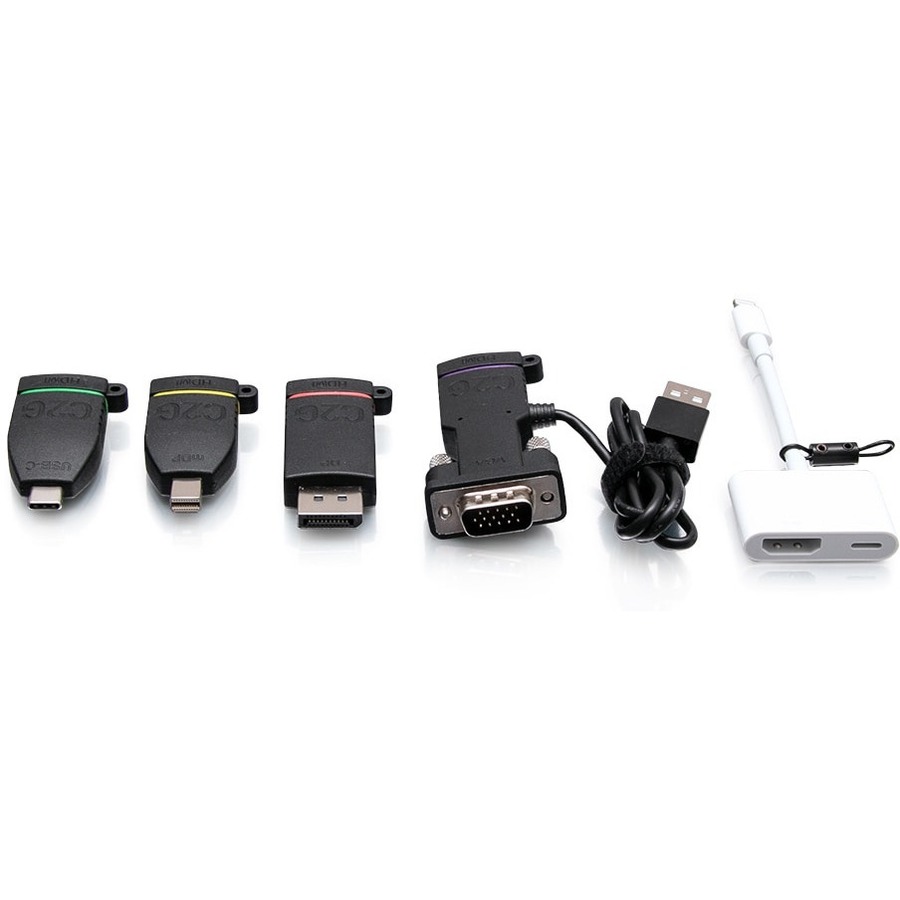

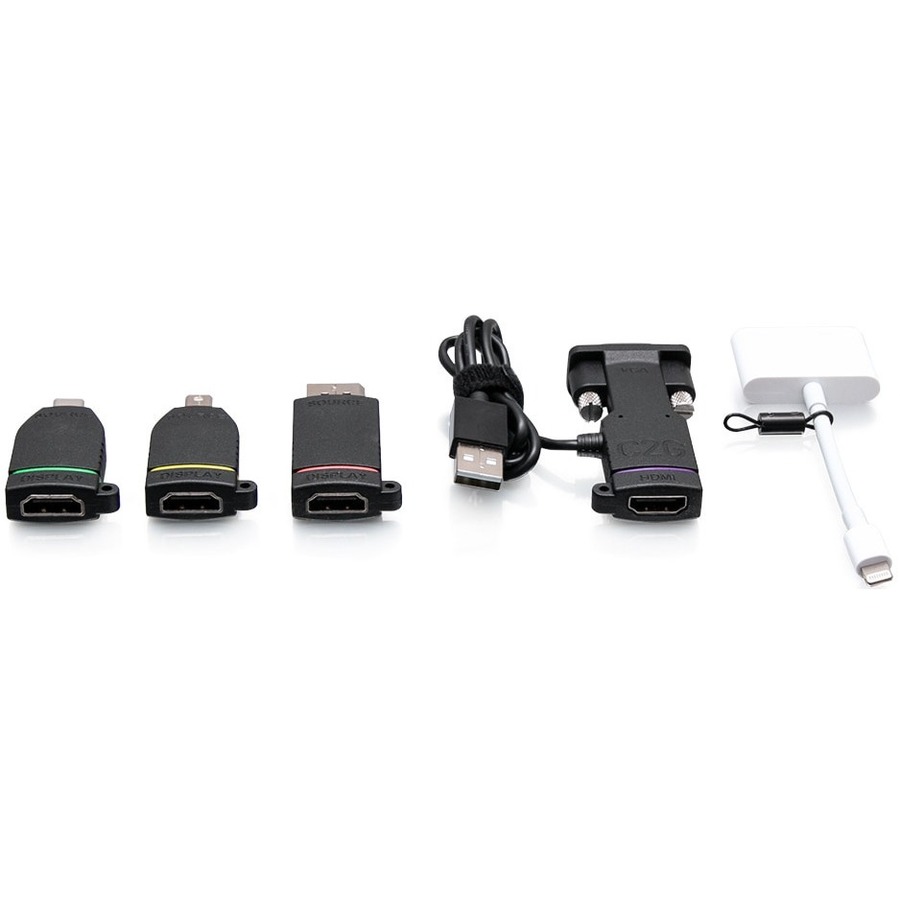

Color Coded Adapters

The DisplayPort, Mini DisplayPort, USB-C, and VGA adapters are color-coded with a band that saves time and frustration by making it easy to identify the adapter you need.

Integrated Pull Tab

Quickly grab the adapters when you need them with the integrated Pull Tab that is also available to be customized to feature your company or organization logo. Minimum order quantities apply to customized Pull Tabs.

Retractable Universal Mount

The Retractable Universal Mount attaches to any flat surface, like a table or lectern, providing mounting flexibility to fit your environment best. The retractor extends out to 4.9ft, ensuring that the adapters are always within reach when needed, and the retractor tested to over 20,000 extension cycles for long service life.

Tools Included

To simplify the process, the installation tool is included.

Main Specification
General Information
Manufacturer Legrand Group
Manufacturer Part Number C2G29893
Manufacturer Website Address http://www.legrand.us
Brand Name C2G
Product Name Adapter Kit
Product Type Adapter Kit
Technical Information
Recommended Usage Commercial
Recommended Usage Residential
Recommended Usage Classroom
Recommended Usage Table
Recommended Usage Notebook
Miscellaneous
Additional Information

Signal Specifications

  • USB Type-C to HDMI Adapter: 100% Functional Test at 4K/60Hz/4:4:4 Resolution with Standard AV Test Equipment
  • DisplayPort to HDMI Adapter: 100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment
  • Mini DisplayPort to HDMI Adapter: 100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment
  • Lightning to HDMI Adapter: 100% Functional Test at 1080p Resolution with Standard AV Test Equipment
  • VGA to HDMI Adapter: 100% Functional Test at 1080p/60Hz Resolution with Standard AV Test Equipment

    • Electrical Specifications

  • USB Type-C to HDMI Adapter Power Consumption: 1050mW (210mA/5.0V)
  • DisplayPort to HDMI Adapter Power Consumption: 396mW (120mA/3.3V)
  • Mini DisplayPort to HDMI Adapter Power Consumption: 396mW (120mA/3.3V)

    • Physical Specifications

  • Operating Temperature: 0°C - 40°C (0% - 90%RH)
  • Storage Temperature: -10°C - 60°C (0% - 90%RH)

    • Physical Characteristics

  • All Connectors (Except Lightning): Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated
  • Adapter Hood: Molded Black PVC
  • USB Type-C to HDMI Adapter Color Band: 12x1.5mm
  • DisplayPort to HDMI Adapter Color Band: Red 12x1.5mm
  • Mini DisplayPort to HDMI Adapter Color Band: Yellow 12x1.5mm
  • VGA to HDMI Adapter Color Band: Purple 12x1.5mm
  • Retractor: 63.5x63.5x17.5mm, Black Steel Wire OD: 1.2mm, Retracting Cable Length: 6ft, ABS Shell, with Hex Nut Tool and Black Locking Coupler (x2)
  • Black Metal Screws (x4): 6.8x22mm, M3, Material: Steel
  • Black Metal Screws (x4): 6.0x22.5mm, M3.5, Material: Steel
  • PC Eyelet: 17.8x4.7x2.6mm, Black, Material: PC
  • Pull Tab: 80x25x2mm, Material: Polyester, Black Background, White Text, with Black Eyelet
  • Universal Mounting Bracket: 85x65x1.2mm, Material: C.R.S. Rigidity: 1/4H, Color: Black
  • Product is CE marked and conforms to 2011/65/EU ROHS 2

    		•
    Package Contents
    • Adapter Kit
    • Installation Tool
    Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Environmental Compliance Restriction of Hazardous Substances (RoHS) 2
    Country of Origin China
    NDAA Compliant Yes
    Warranty
    Limited Warranty Lifetime
