CISCO

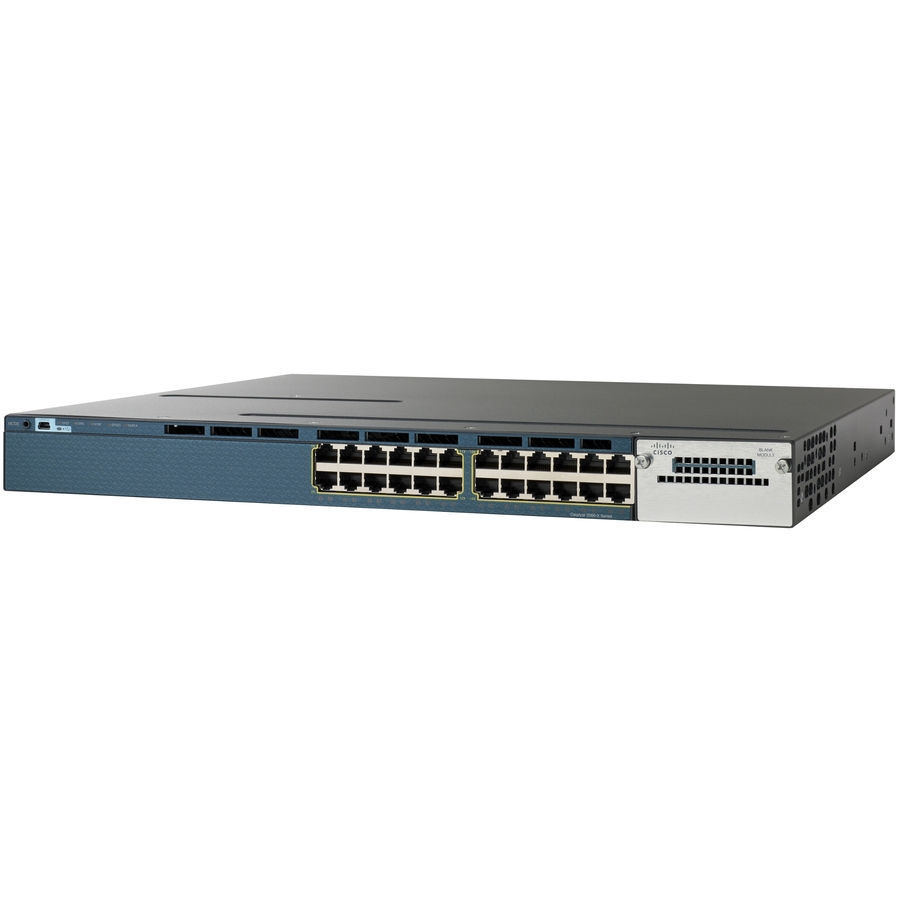

CISCO WS-C3560X-24P-L-RF CATALYST 3560X 24 PORT POE LAN BASE REMA

Mfg Part Number:  WS-C3560X-24P-L-RF
Image may not reflect the actual item.
Price: $2,396.46
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 17, 2025
No Sales Tax except these states
, PO and Wire.

The Cisco® Catalyst ® 3750-X and 3560-X Series Switches are an enterprise-class lines of stackable and standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower (available only on the Catalyst 3750- X), IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3750-X Series with StackWise® Plus technology provides scalability, ease of management and investment protection for the evolving business needs. The Cisco Catalyst 3750-X and 3560-X enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.

Main Specification
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C3560X-24P-L-RF
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Line Catalyst
Product Series 3560-X
Product Model WS-C3560X-24P-L
Product Name Catalyst WS-C3560X-24P-L Ethernet Switch
Product Condition Refurbished
Product Type Ethernet Switch
Interfaces/Ports
Total Number of Network Ports 24
Token Ring Port No
LRE Port No
Uplink Port No
Bypass No
Modular No
Management Port Yes
USB Yes
Number of PoE+ (RJ-45) Ports 24
Number of Network (RJ-45) Ports 24
Media & Performance
Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 5
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
I/O Expansions
Total Number of Expansion Slots 1.0
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Management
  • QoS
  • VLAN
  • DHCP
  • IGMP
  • RMON
  • SNMP v3
  • CLI
Memory
Standard Memory 256 MB
Memory Technology DRAM
Flash Memory 64 MB
Power Description
PoE (RJ-45) Port Yes
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Form Factor Desktop
Form Factor Rack-mountable
Height 1.8"
Width 18"
Depth 17.5"
Weight (Approximate) 15.70 lb
Miscellaneous
Certifications & Standards
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3ad
  • IEEE 802.1ae
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3x
  • IEEE 802.1D
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • FCC Part 15 (CFR 47) Class A
  • ICES-003 Class A
  • EN 55022 Class A
  • CISPR 22 Class A
  • AS/NZS 3548 Class A
  • BSMI Class A (AC input models only)
  • VCCI Class A
  • EN 55024
  • EN300386
  • EN 50082-1
  • EN 61000-3-2
  • EN 61000-3-3
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5
  • EN61000-4-6
  • EN 61000-6-1
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • EN 60950-1
  • IEC 60950-1
  • UL60950-1
  • C-UL to CAN/CSA 22.2 No.60950-1
  • TUV/GS to EN 60950-1
  • CB to IEC 60950-1 with all country deviations
  • AS/NZS 60950-1
  • CE Marking
  • NOM (through partners and distributors)
  • GOST (Russia Safety Mark)
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty Lifetime
