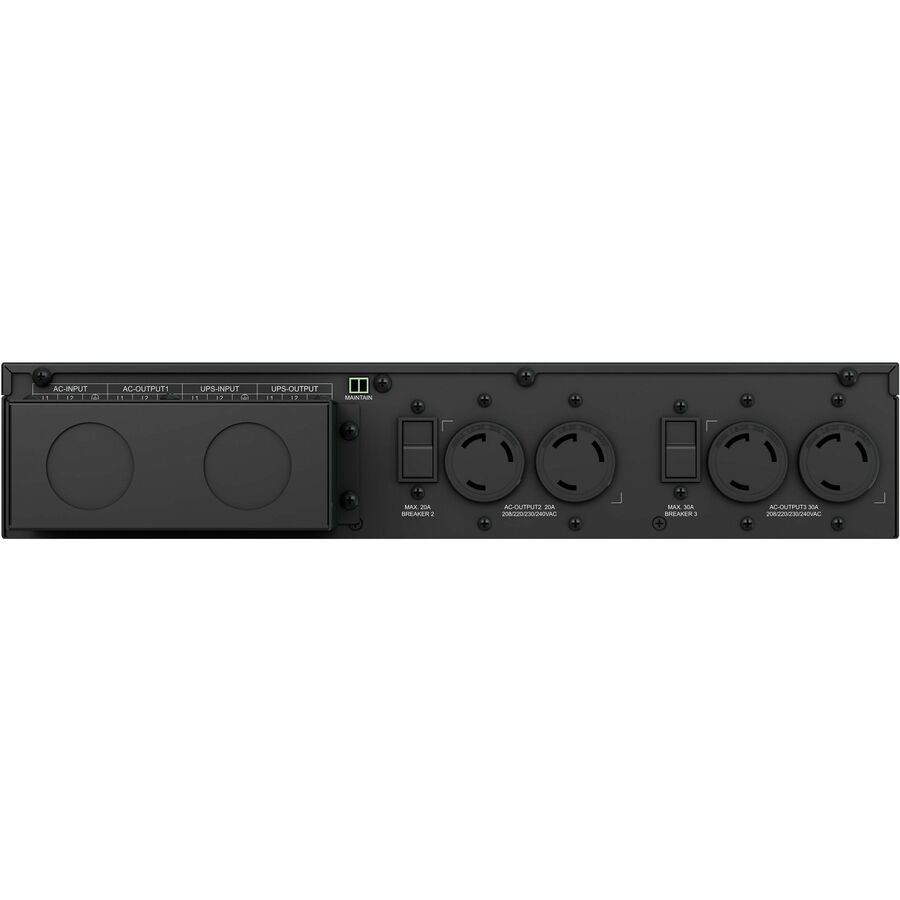

N1 CRITICAL TECHNOLOGIES, INC. 40-700600 LK-SERIES 10KVA PDU MAINTENANCE BYPASS

The N1C LK Series offers the most unity power factors in a small space with long runtime. 5, 6 and 10kvA options with unity power factors maximize load capacity. Extend the runtime with up to 8x total line-and-match external battery modules. Each system comes with 4-post rail kits, SNMP cards for remote monitoring, license-free software and our industry-best 10-year warranty! Get piece-of-mind and maximum protection from all 9 power problems with online double conversion topology and a 0ms transfer time to battery power. On board outlets offer easy connectivity and 6 and 10kVA models allow for parallel connection (up to 4x units) for power capacity growth or N+1 redundancy. Monitor and control units with an intuitive full-color touchscreen or via the included SNMP user interface via a connected PC. Keep critical loads online for longer with N1C LK-Series.

General Information
Manufacturer	N1 Critical Technologies, Inc
Manufacturer Part Number	40-700600
Manufacturer Website Address	http://www.n1critical.com
Brand Name	N1C
Product Series	LK
Product Model	N1C.LK10PDUBP
Product Name	LK N1C.LK10PDUBP Bypass Switch
Product Type	Bypass Switch
Technical Information
Plug/Connector Type	Hardwired
Receptacles	2 x NEMA L6-30R
Receptacles	Hardwired
Power Description
Load Capacity (VA)	10 kW
Load Capacity (Watt)	10 kW
Input Voltage	120 V AC
Input Voltage	230 V AC
Output Voltage	240 V AC
Physical Characteristics
Form Factor	Rack-mountable
Rack Height	2U
Height	3.4"
Width	17.3"
Depth	24.5"
Weight (Approximate)	36 lb
Miscellaneous
Package Contents	LK N1C.LK10PDUBP Bypass Switch 4-post rail kit AC cabling to UPS
Compatibility	All LK-Series Models plus other 5-10kW UPS Systems
Certifications & Standards	UL 1778: 2014 R4.24 CSA C22.2 No. 107.3-14+GI1+GI2 (R2024)
Country of Origin	China
Warranty
Limited Warranty	10 Year
