BLACK BOX

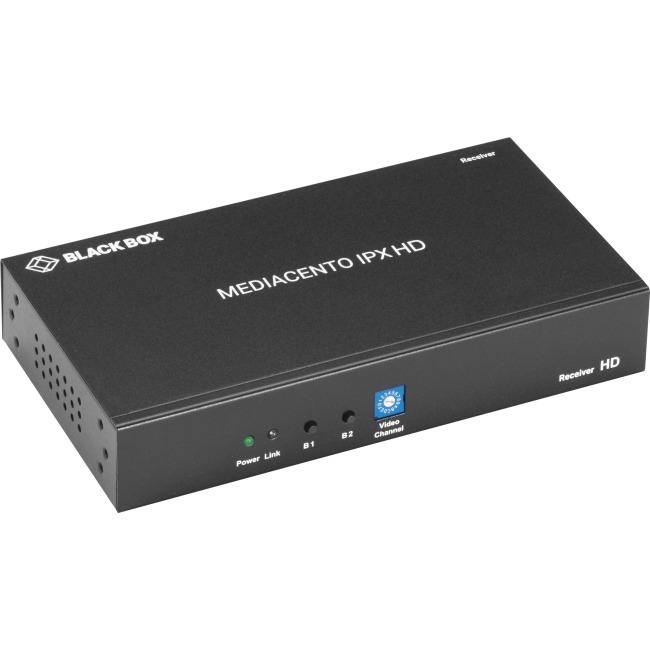

BLACK BOX VX-HDMI-HDIP-RX EXTENDER RECEIVER - HD, HDMI-OVER-IP, GSA, TAA, 45 DAY STANDARD RETURN POLICY *** Open Box Item ***
Mfg Part Number: VX-HDMI-HDIP-RX , Item #: 5243811
, PO and Wire.
MediaCento IPX HD is great for:
- Touchscreen applications using the iCOMPEL Digital Signage system.
- Basic HDMI video and audio extension direct point to point, or point to multipoint over a gigabit Ethernet network.
- Streaming video to classrooms in schools.
- Corporate video sharing and training.
- Sharing video in command and control room setup.
HDMI HD video over IP
This IP-based video distribution solution uses existing standards-based Ethernet technology and TCP/IP protocols to unicast HDMI HD video signals on your Gigabit Ethernet network. In a multicast configuration, one transmitter can drive multiple receivers with no extra network load.
HD means better video
The MediaCento IPX HD supports High Defenition video for great pictures up to 1080p.
Plug-and-play setup
Whether you choose to utilize existing LAN infrastructure or set up a dedicated video network, setup is easy. For a unicast setup, simply connect your source, your display, a network switch, and you're ready to go!
PoE support for remote powering
The MediaCento IPX HD is PoE powered eliminating the need for additional power supplies. Using a PoE network switch completely eliminates the need for external power supplies making installation easier.
Create 8x8 video walls
For video streaming and multicasting video over a network to a video wall, see our LPB2900 Series Gigabit PoE+ Managed Switches (LPB2910A, LPB2926A, LPB2952A).
Signals that go for miles
The MediaCento IPX HD Unicast system transmits up to 328 feet (100 m) point to point but goes even further with a network switch added to the mix.
Optimal PC-to-screen performance
MediaCento features EDID copy function and is HDCP 2.2-compliant.
Digital signage and video wall applications:
- Hospitality
- Bars/restaurants
- Retail
- Venues/events
- Corporate multi-room solutions
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | VX-HDMI-HDIP-RX |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | MediaCento |
| Product Name | MediaCento IPX HD Extender Receiver - HDMI-Over-IP |
| Product Type | Video Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Receiver Height | 1.26" |
| Receiver Width | 7.09" |
| Receiver Depth | 3.86" |
| Receiver Weight (Approximate) | 1.04 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
