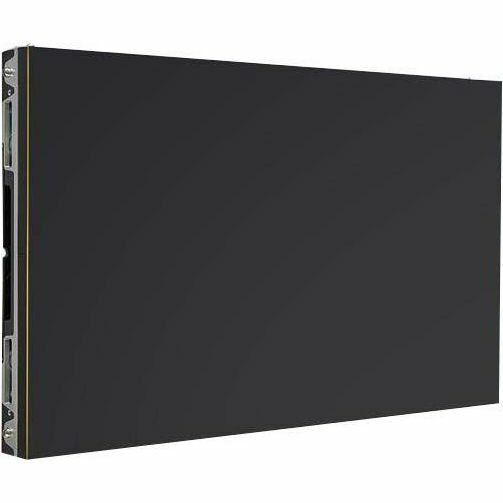

LG LSCC018-GZ ULTRA SLIM LSCC 320X360 STNDRD PNL/CBNT 800 NIT

Mfg Part Number:  LSCC018-GZ
Image may not reflect the actual item.
Price: $2,633.90
Quantity:
More to Come
Last Updated: Jan 31, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer LG Electronics
Manufacturer Part Number LSCC018-GZ
Manufacturer Website Address https://solutions.lg.com/us
Brand Name LG
Product Model LSCC018-GZ
Product Name 1.8 mm LSCC Series Ultra Slim LED
Product Type Digital Signage Display
Technical Information
Features Flame Resistant
Heat Dissipation 111.95 W
Average Heat Dissipation Per Cabinet 31.94 W
Ingress Protection (IP) Rating IP30
Minimum Color Temperature 5840.3°F (3226.8°C)
Maximum Color Temperature 15740.3°F (8726.8°C)
Color Uniformity ±0.003 Cx, Cy
Service Access Front
Display & Graphics
Display Resolution 320 x 360
High Dynamic Range (HDR) Yes
High Dynamic Range (HDR) Type HDR10 Pro
High Dynamic Range (HDR) Type HDR10
Pixel Pitch 74 mil
Horizontal Viewing Angle 160°
Vertical Viewing Angle 160°
Cabinet Surface Area 2 Sq. ft.
Number of Modules Per Cabinet 2x2
Module Resolution 160 x 180
Maximum LED Life 11.4 Year
LED Type Single SMD
Video
Standard Refresh Rate 3.84 kHz
Frame Refresh Rate 60 Hz
Native Contrast Ratio 5,000:1
Brightness 800 Nit
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Environmental Conditions
Minimum Operating Temperature 14°F (-10°C)
Maximum Operating Temperature 113°F (45°C)
Minimum Operating Humidity 0%
Maximum Operating Humidity 80%
Physical Characteristics
Height 13.3"
Width 23.6"
Depth 1.3"
Module Height 6.60"
Module Width 11.80"
Weight per Module (Approximate) 10.88 oz
Weight per Cabinet (Approximate) 11 lb
Housing Material Die-cast Aluminum
Miscellaneous
Additional Information
  • Brightness Uniformity : 97%
  • Power Consumption per Cabinet (Max) : 96W
  • Power Consumption per Cabinet (Avg.) : 32W
  • 90 Degree Corner Cut : No
  • Total Modules (per cabinet) : 4
  • Heat Dissipation per Unit Area (Max.) : 1,618 BTU/hr/m²
  • Power Consumption per Unit Area (Max) : 474 W/m²
  • Controller : CVCA
  • Minimum Viewing Distance (5-7 mm per foot) : 9-13 feet
    		•
    Certifications & Standards
  • CE
  • FCC: EMC Class A
  • cTUVus : No
  • BS476 Part7 (UK Fire Rating): Class 1
  • EN13501-1: Yes
    		•
    Environmentally Friendly Yes
    Environmental Certification REACH
    Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    TAA Compliant No
    Warranty
    Limited Warranty 3 Year
