TP LINK

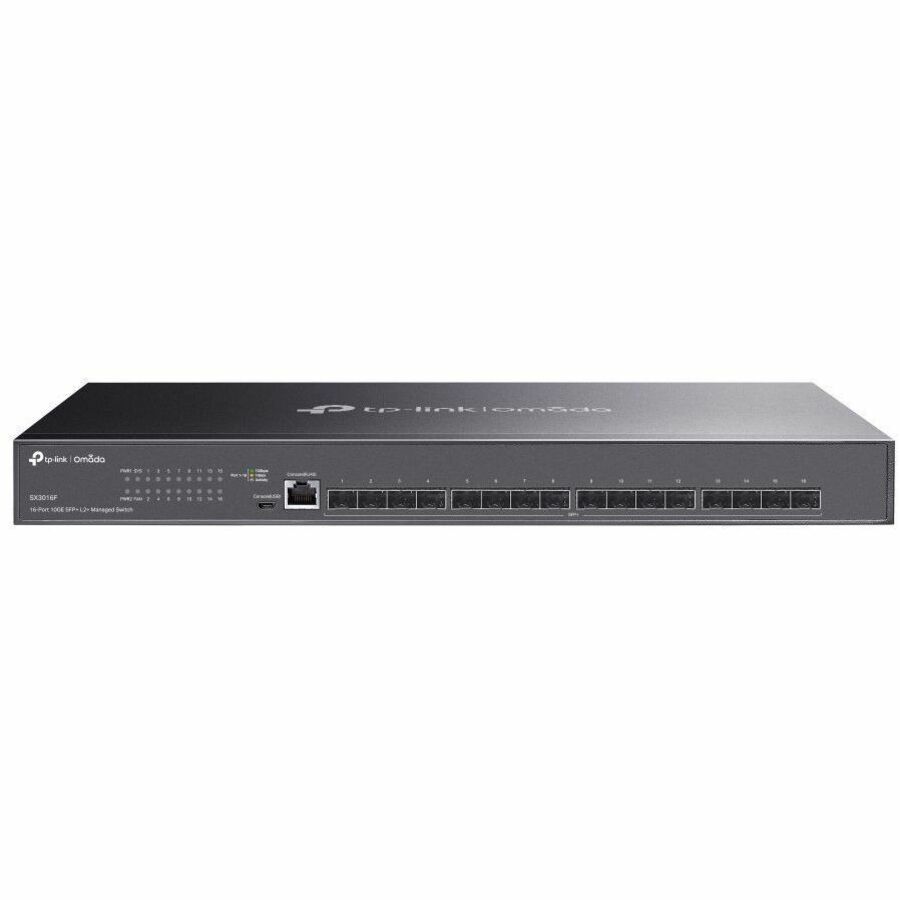

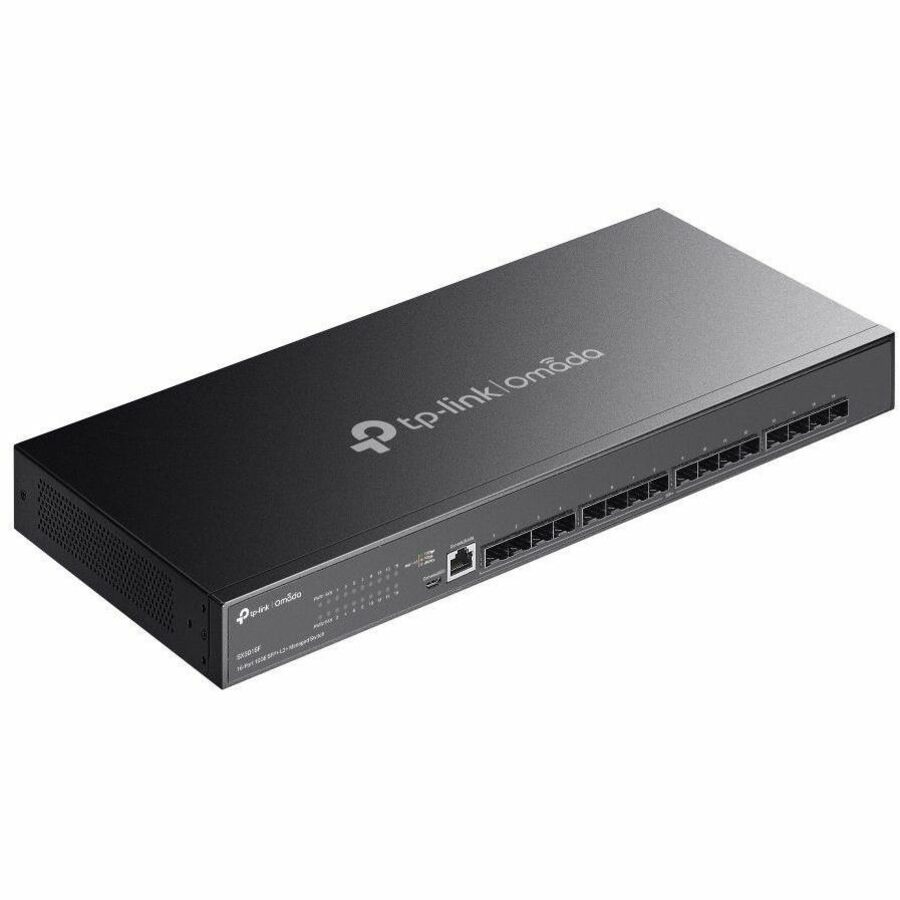

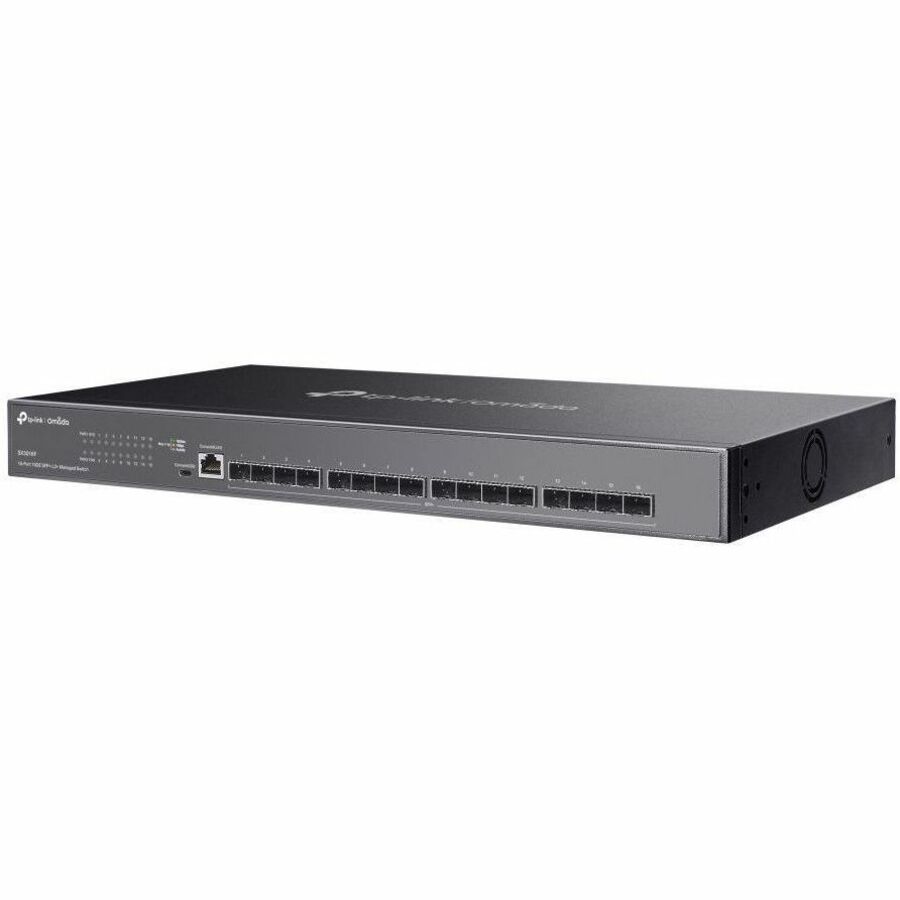

TP LINK TP-Link SWT SX3016F Omada JetStream 16PT 10GE SFP+ L2+ Managed Switch RTL
Mfg Part Number: SX3016F , Item #: 5239220
Image may not reflect the actual item.
Price: $653.73
Quantity:
In Stock: 3
Last Updated: May 03, 2025
No Sales Tax except these states
, PO and Wire.
- Ideal for Use in Aggregation Layer
- 16 × 10 Gbps SFP+ Slots
- 1+1 Redundant Power Supply
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Ethernet Ring Protection Switching
- Static Routing
Easily Build a Whole 10G Multi-gigabit Network | 10G Router
Ensures the fast way
Full 10G Fiber Switch
Lightning-fast aggregation switching
Switch with 10G Uplink
PoE Switch with 10G Uplink
Wi-Fi 7/6 APs with 10G/2.5G Ports
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Main Specification
| General Information | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SX3016F |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Brand Name | TP-Link |
| Product Line | Omada |
| Product Model | SX3016F |
| Product Name | Omada 16-Port 10GE SFP+ L2+ Managed Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Intelligent monitoring |
| Features | Fanless |
| Interfaces/Ports | |
| Modular | Yes |
| Port/Expansion Slot Details | 16 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 16 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 16 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.3ah |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.1x |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Power Source | AC |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 32.74 W |
| Physical Characteristics | |
| Product Material | Metal |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 8.7" |
| Miscellaneous | |
| Application/Usage | Network |
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
