Eaton

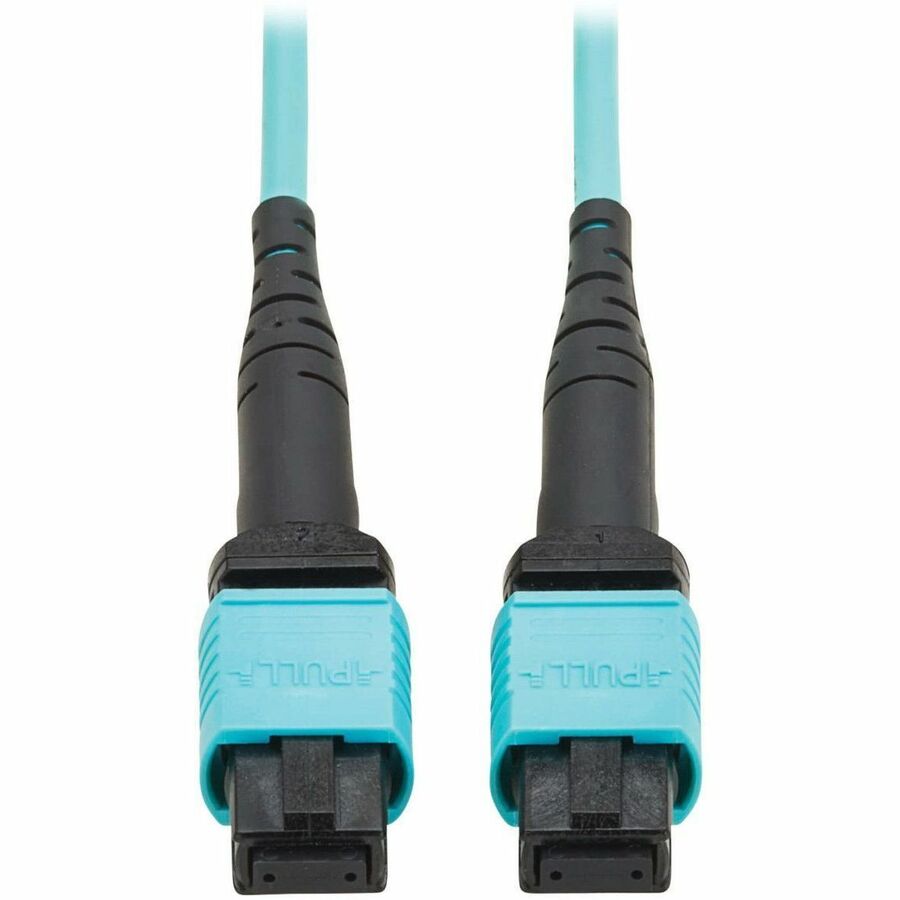

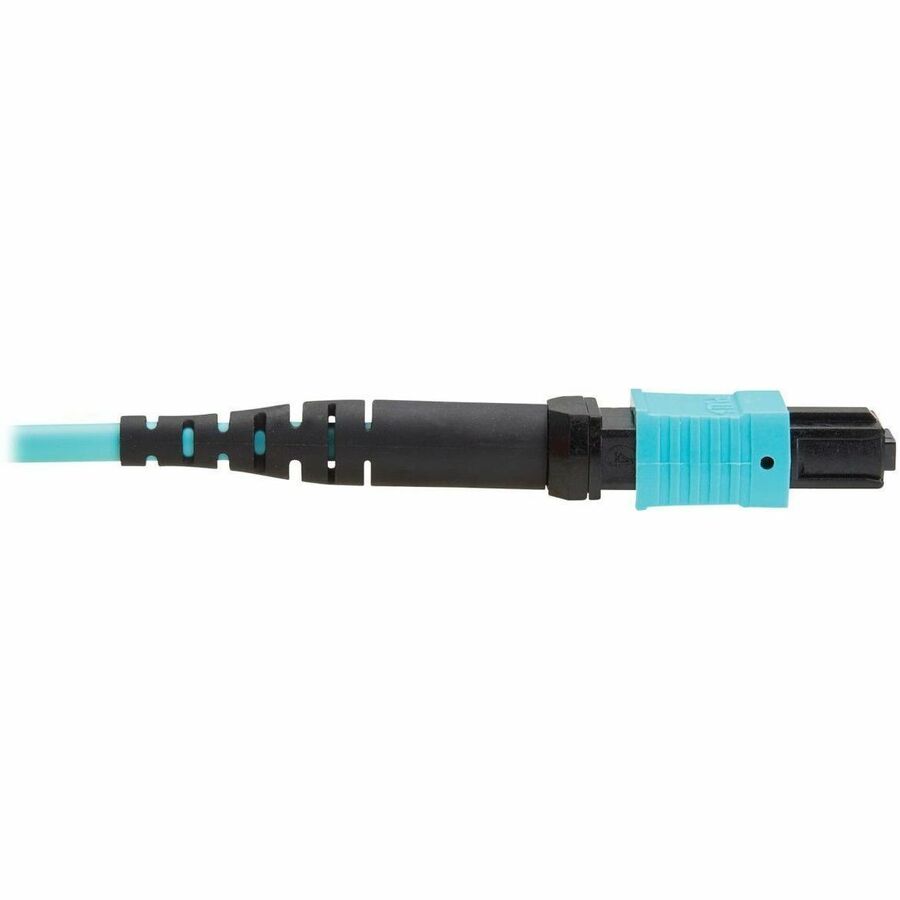

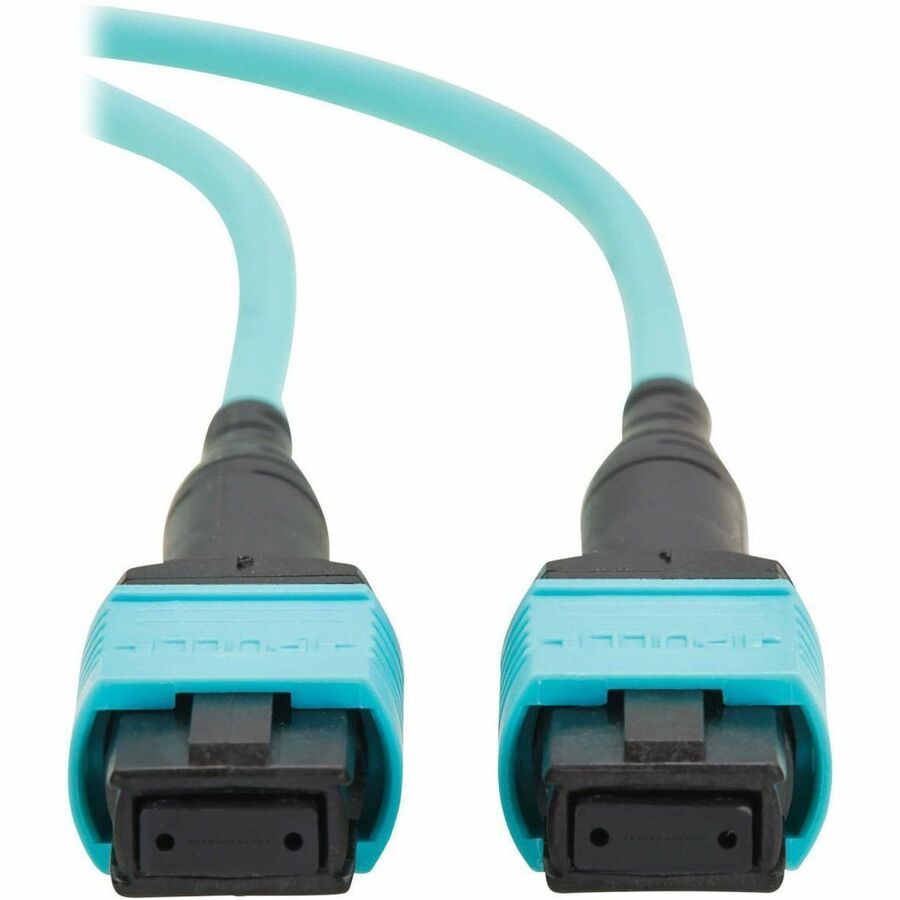

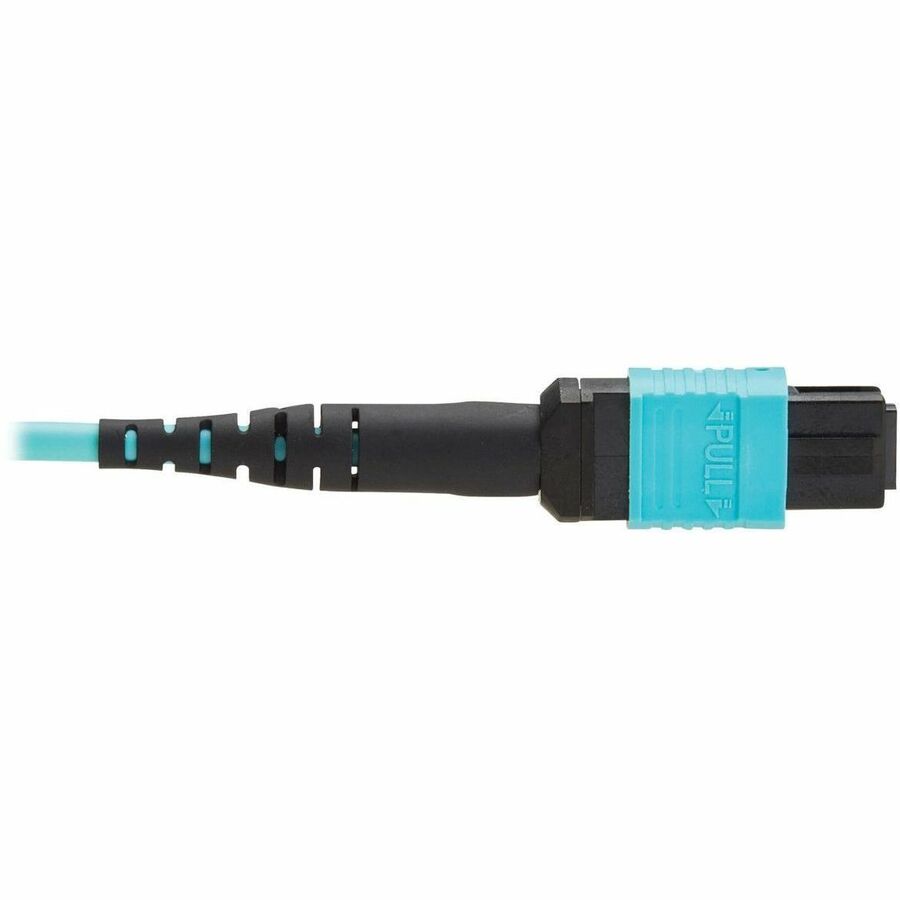

Eaton N845B-10M-12TAA 100G MULTIMODE 50/125 OM4 FIBER CABLE 12F MPO/MPO-PC FF AQUA 10M
Mfg Part Number: N845B-10M-12TAA , Item #: 5226897
, PO and Wire.
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. The connectors' slim boots allow easy one-handed installation and removal of the cable.
TAA-Compliant for GSA Schedule Purchases
The N845B-10M-12TAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N845B-10M-12TAA |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite series |
| Product Model | N845B-10M-12TAA |
| Product Name | N845B-10M-12TAA Fiber Optic Network Cable |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Fiber Optic Mode | Multi-mode |
| Fiber Category | OM4 |
| Fiber Count | 12 |
| Cable Length | 32.81 ft |
| Connector Type on First End | MPO Network |
| Connector Gender on First End | Female |
| Connector on First End Details | 1 x MPO Network - Female |
| Connector Type on Second End | MPO Network |
| Connector Gender on Second End | Female |
| Connector on Second End Details | 1 x MPO Network - Female |
| Jacket Type | OFNP |
| Jacket Type | Plenum |
| Device Supported | Switch |
| Device Supported | Network Device |
| Device Supported | Patch Panel |
| Data Transfer Rate | 400 Gbit/s |
| Boot Type | Slim |
| Features | Fire Resistant |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Jacket Color | Aqua |
| Connector Color | Aqua |
| Connector Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Height | 9" |
| Width | 7" |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
