SIIG AC SC-M20211-S1 Full Speed M.2 NVMe SSD to PCIe Adapter with Heatsink

Mfg Part Number:  SC-M20211-S1
Image may not reflect the actual item.
Price: $38.28
Quantity:
More to Come
Last Updated: Dec 26, 2025
No Sales Tax except these states
, PO and Wire.

Adds one M.2 M key PCIe SSD (NVMe or AHCI) to your PCIe equipped desktop computer

  • Adds one M.2 M key PCIe SSD (NVMe or AHCI) to your PCIe equipped desktop computer to dramatically increase speed and performance
    Note: This adapter is not compatible with B key M.2 PCIe NVMe/AHCI SSDs or M.2 SATA SSDs

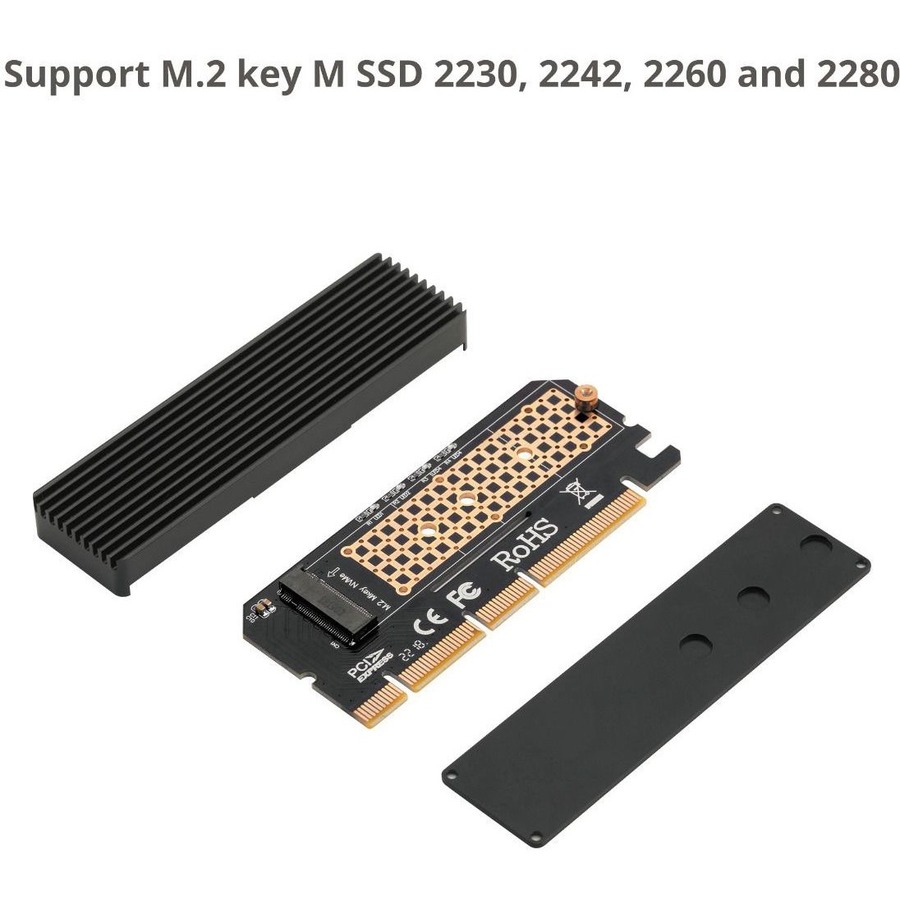

  • Accommodates 2230, 2242, 2260 and 2280 form factor M.2 PCIe SSDs (NVMe or AHCI) via multiple mounting holes
  • Compatible with PCIe 3.0 specification and backward compatible with PCIe 1.0 and PCIe 2.0
  • Fits into PCIe x16 bus slot

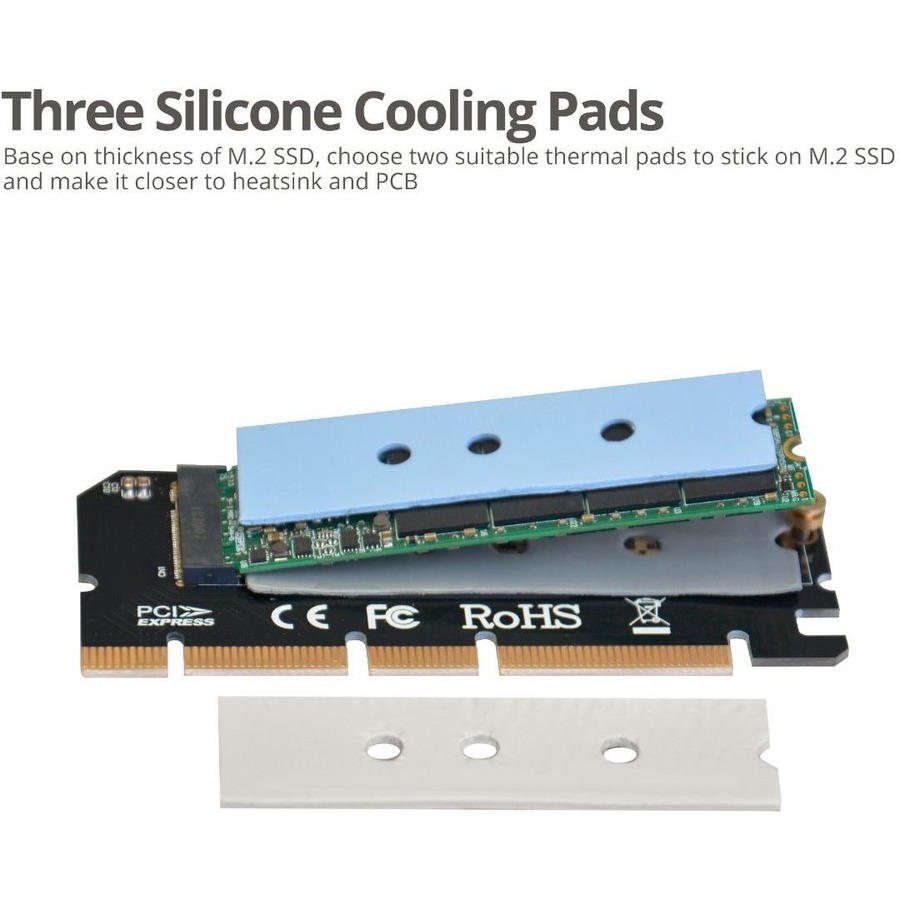

  • Includes heat sink and silicone pad to avoid overheating and thermal throttling, improves your computer's performance and keeps the adapter working efficiently
  • Plug and Play compliant with no driver installation required
Main Specification
General Information
Manufacturer SIIG, Inc
Manufacturer Part Number SC-M20211-S1
Manufacturer Website Address http://www.siig.com
Brand Name SIIG
Product Name Full Speed M.2 NVMe SSD to PCIe Adapter with Heatsink
Product Type M.2 to PCI Express Adapter
Physical Characteristics
Product Color Black
Height 0.4"
Width 1.7"
Depth 4.1"
Weight (Approximate) 1.76 oz
Miscellaneous

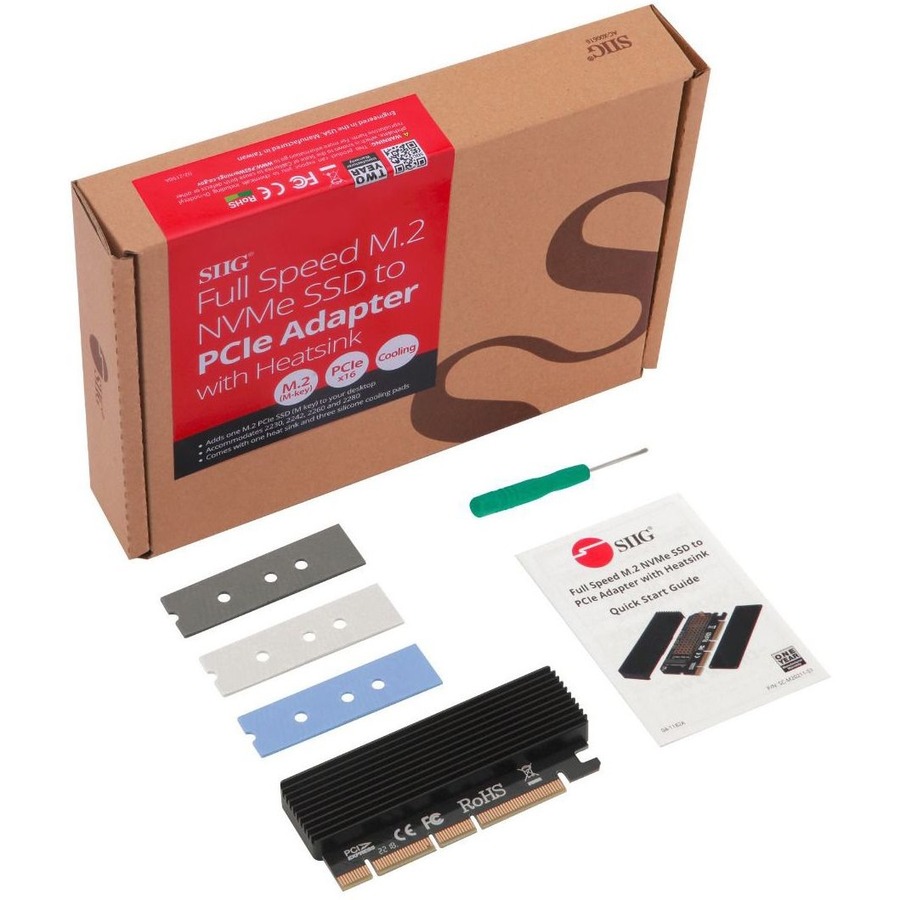

Package Contents
  • Full Speed M.2 NVMe SSD to PCIe Adapter with Heatsink
  • 3 x Silicone Pad
  • Screw Driver
  • Quick start guide
Additional Information
  • PCIe 3.0 compliant
  • Comes with heat sink and silicone pad to prevent your SSD from overheating
  • Bus type: PCI Express x16 (PCIe x16)
  • SSD type (not included): M.2 M key PCIe SSD (NVMe or AHCI)
  • Compatible drive length: 30 / 42 / 60 / 80 (mm)
  • Connector:
    • Host bus connector: PCI Express x16
    • SSD: M.2 connector (M key)
  • Environmental conditions:
    • Operating temperature: 32 to 122 degrees F
    • Storage temperature: 14 to 140 degrees F
    • Relative humidity: 10% to 90% RH (non-condensing)
Certifications & Standards
  • CE
  • FCC
Country of Origin China
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 2 Year
